APKD DOUBLE-CASE, DOUBLE-SUCTION USER INSTRUCTIONS 26999903 07-13

Page 51 of 55

flowserve.com


8.2.2

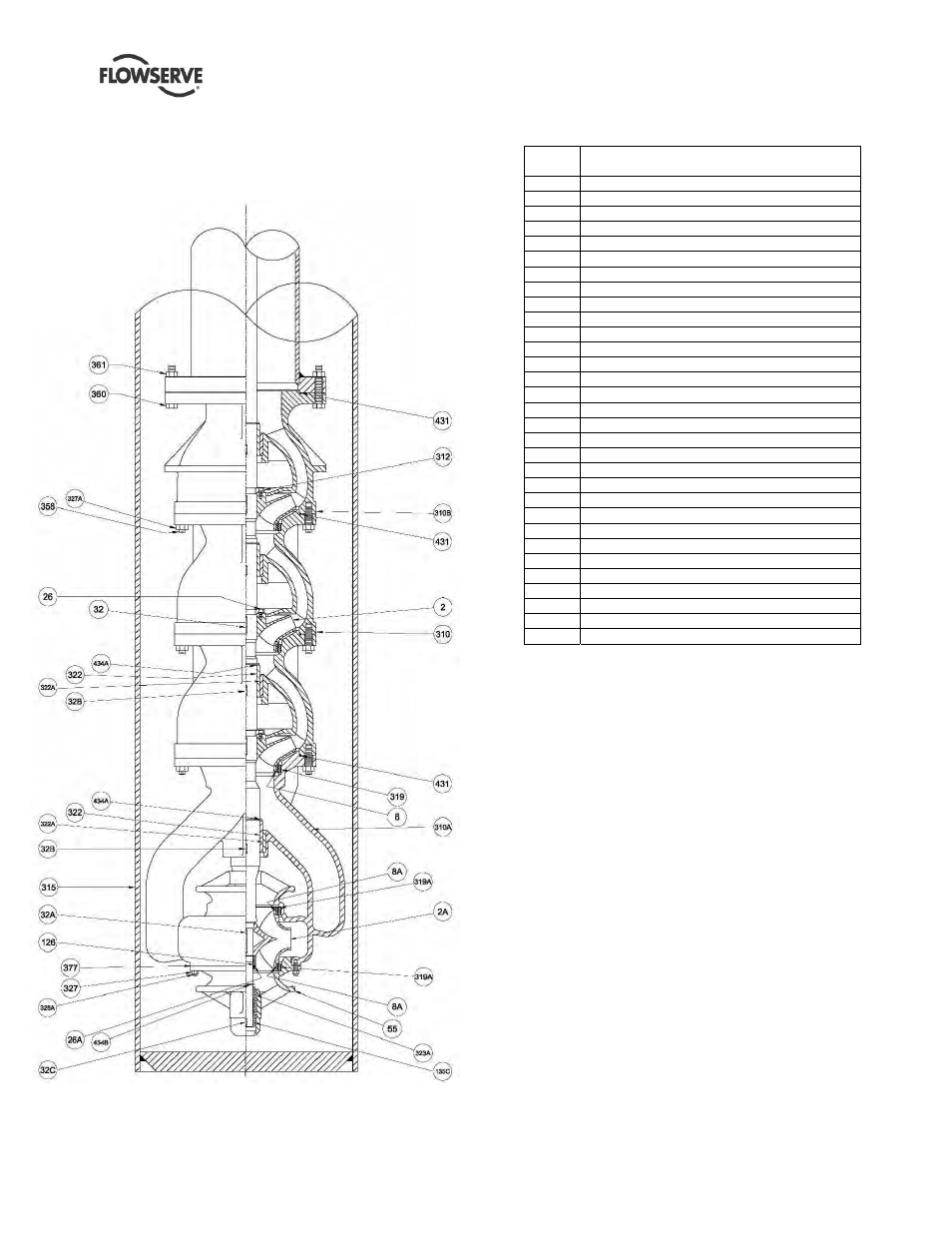

Parts identification: Column and bowl
assembly

Typical product lubricated APKD with the suction
barrel

8.2.2.1

Parts list- Column and bowl assembly

Ref
no.

Description

2 1

st

STAGE IMPELLER

2A INTERMEDIATE

IMPELLER

8

WRG RING – INT. IMPELLER

8A

WRG RING – 1

ST

STAGE IMPELLER

26 SCREW

CAP-SOCKET

26A SCREW

CAP-SOCKET

32

KEY-INT. IMPELLER

32A KEY-1

st

STAGE IMPELLER

32B KEY-JOURNAL

SLEEVE-BOWLS

32C KEY-JOURNALSLEEVE-SUCTION

HEAD

55 SUCTION

HEAD

126 SHAFT

NUT

135C JOURNAL

SLEEVE-SUCTION

HEAD

310 APKD

BOWL

310A

APKD BOWL 1

st

STAGE

312

IMP. SPLIT RING

315 SUCTION

CAN

319

BOWL WRG RING

319A

BOWL WRG RING

322 JOURNAL

SLEEVE-BOWLS

322A

BEARING SLEEVE – SUCTION HEAD

323A

BEARING SLEEVE – BOWLS

326A STUD

327 NUT-HEX

327A NUT-HEX

358 STUD
377 GASKET
426 SCREW

CAP-HEX

431 O-RING
434 RETAINING

RING

434A RETAINING

RING
