2 SPEAKER SETUP
After you have installed the unit connected all the
components and determined the speaker layout, it
is now time to perform the settings in the Speaker
Setup menu for the optimum sound acoustics for
your environment and speaker layout.
Before you perform the following settings, it is
important that you fi rst determine the following
characteristics:
• Auto Setup:
“2-1 AUTO SETUP (Audyssey MultEQ
®
)”
(see page 28)
• Manual Setup:
“2-2 MANUAL SETUP” (see page 31)
1.
Select
“Speaker Setup” from the Main
Menu with
3 or 4 cursor buttons and press
the ENTER button.
2.
Select the desired menu with the
3 or
4 cursor buttons, and press the ENTER
button.
Note
• After you complete this the portion of the setup,
press the
3, 4, 1, and 2 cursor button. The
cursor will move to “Return” and press the
ENTER button to go to the Sub-menu.
SETUP
Speaker Setup
Auto Setup
Manual Setup
Return
: Up / Down
:
Enter : Select
Exit : Exit

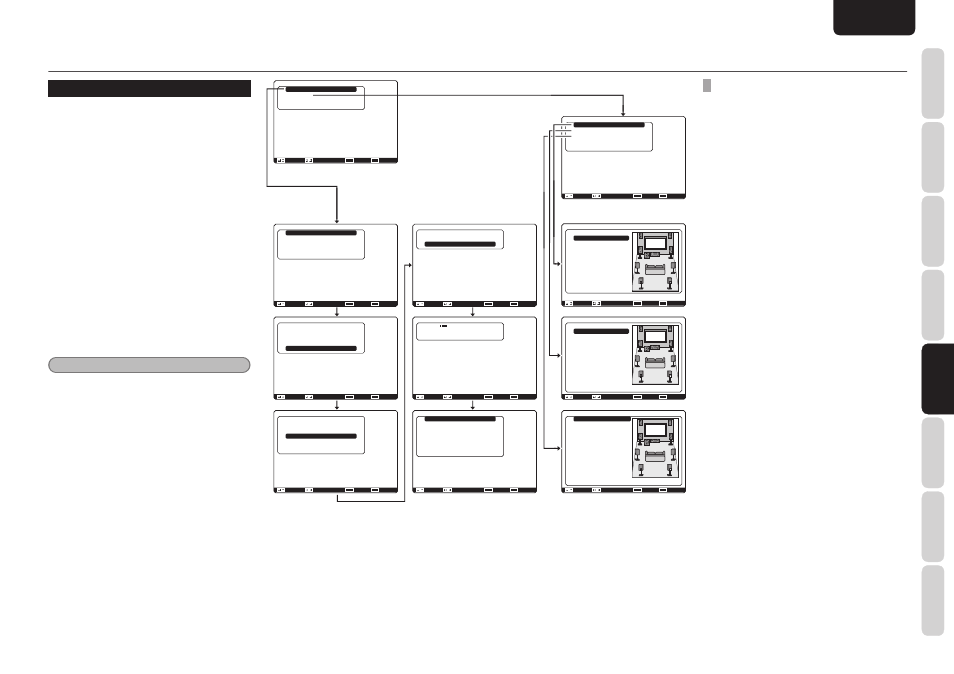

Audyssey MultEQ Setup
Start
Manual Setup
Front Height
Surround Back
Return
: Up / Down
:
Enter : OK
Exit : Exit
: Yes
: 2ch
Audyssey MultEQ Setup
Cancel
Speaker Check : - -
1st Mic Position
Now Analyzing!!
:
:
Enter : OK
Exit : Exit
Audyssey MultEQ Setup
Start
Check
Calculate
Speaker Check : OK
2nd Mic Position
: Up / Down
:
Enter : OK
Exit : Exit
Audyssey MultEQ Setup
Cancel
Now Analyzing!!
:
:
Enter : OK
Exit : Exit
Audyssey MultEQ Setup
--------------
Now Calculating!
:
:
Enter :
Exit :
Check Result
Speakers Config
Speakers Size
Speakers Distance
Channel Level
Crossover Frequency
Store
: Up / Down
:
Enter : Select
Exit : Exit
Manual Setup
Speakers Size
Speakers Distance
Speakers Level
Return
: Up / Down
:
Enter : Select
Exit : Exit
Speakers Size
Subwoofer
Front
Front Height
Center
Surround
Surround Back
Surround Back Size
LPF / HPF
Bass Mix
Return
: Yes
: Small
: Small
: Small
: Small
: 2ch
: Small
: 80Hz
: * * *
: Up / Down
: Change
Enter :
Exit : Exit
Speakers Distance
Unit
Front Left
Front Height Left
Center
Front Height Right
Front Right
Surround Right
Surround Back Right
Surround Back Left
Surround Left
Subwoofer
Return
: Feet
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: 10.0 ft
: Up / Down
: Change
Enter :
Exit : Exit
Speakers Level
Test Mode
Front Left
Front Left
Front Height Left
Center
Front Height Right
Front Right
Surround Right
Surround Back Right
Surround Back Left
Surround Left
Subwoofer
Return
: Manual
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: 0.0dB
: Up / Down
: Change
Enter :
Exit : Exit
☞
P. 28
☞
P. 31
2-1 AUTO SETUP (AUDYSSEY MULTEQ
®
)
AUTO SETUP (performed by Audyssey MultEQ)
automatically measures the acoustical problems in
the listening environment and optimizes settings to
create the best audio experience for your listening
environment.
Audyssey MultEQ removes frequency response
anomalies caused by the interaction of sound from
loudspeakers within the room. This results in the
playback of sound as it was intended, without
coloration, not just in one seat, but over a large
listening area.
Audyssey MultEQ measures up to 6 listening
positions in the room, detects the presence of each
speaker, and automatically calculates the speaker
size, channel level, distance, and optimal crossover
frequency settings.
To set up the speaker system (i.e., adjusting speaker
distance, etc.) without using the AUTO SETUP
feature, see “MANUAL SETUP” on page 31 of the
manual.
