Hydraulic diagram for heat pump assembly WKF Frankfurt Solar
Functions: heating/hot water and solar, operating mode: monoenergetic or bivalent possible
The operating mode here can be monoenergetic or bivalent alternative!
A
B
C
D
FB WW KW
ZK
AB
B
A
S08
AB
B
A
S02
HGM
EFS
RES M

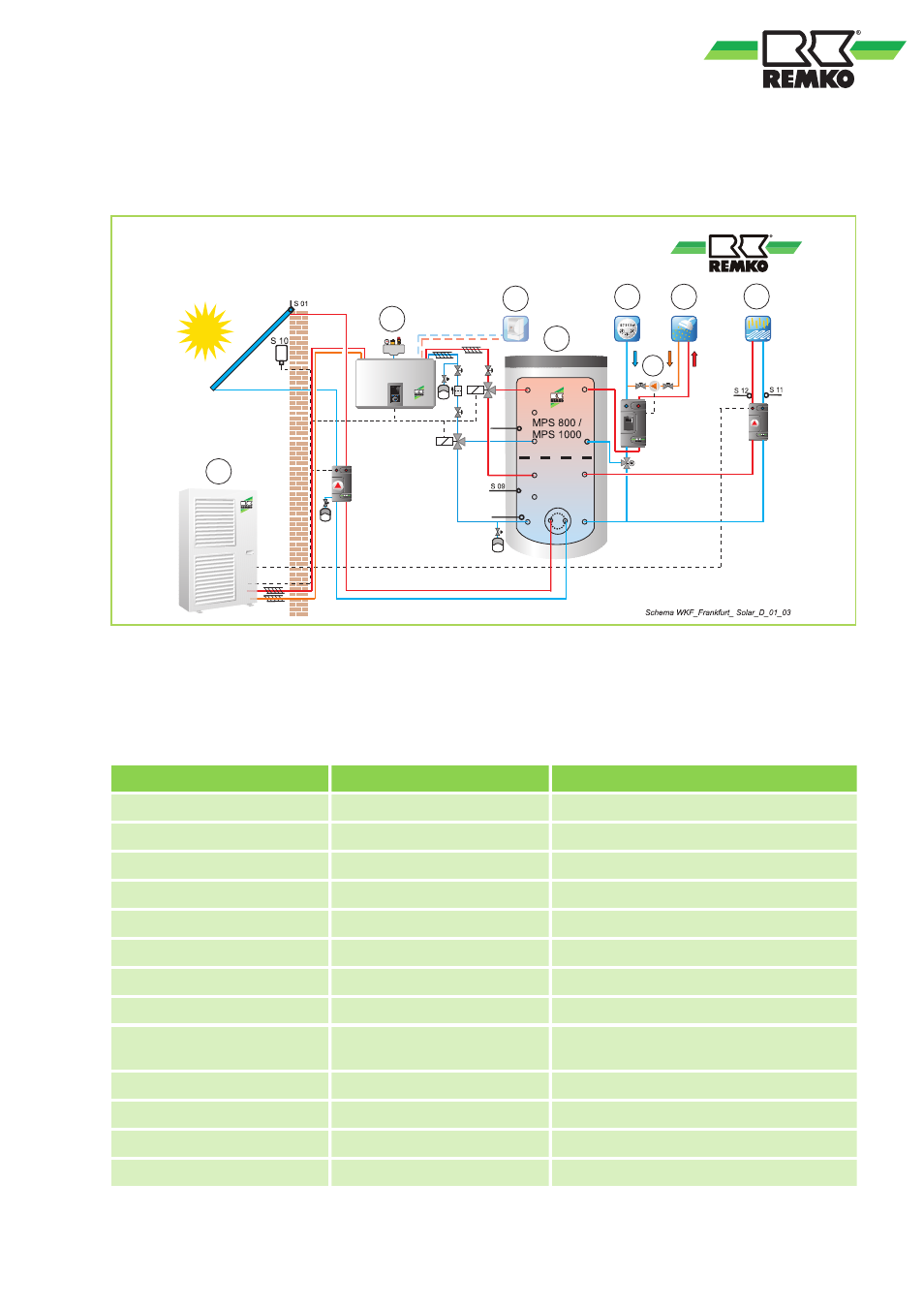

Fig. 74: Example hydraulic diagram for HP assembly WKF Frankfurt Solar
A: Outdoor unit
B: WFK indoor unit
C: External heat generator (max. 20 kW)
D: Storage tank
FB: Floor heating cycle
KW: Cold water
WW: Hot water
ZK: Circulation
Menu item Parameter Factory setting
Control panel address Control panel 1-3 Control panel 1
Country Deutschland - Slovensko Deutschland
Load setting Accept the parameters Saving process
Language Deutsch - Polski Deutsch
Time zone Var. time zones possible Winter + 1(CET) (for Europe)
Date setting Year / Month / Day Current date setting
Time setting Hours / Minutes Current time setting
Activate heat pump Activated / Deactivated Activated
Operating mode
Monoenergetic / Bivalent
alternative
Monoenergetic / Enable as required
Domestic water heating Activated / Deactivated Activated
Storage tank set temperature "40°C - 65°C" 45°C
Hot water circulation Activated / Deactivated Deactivated
Circulation type Impulse or Temperature Impulse
