Chapter 3 Servicing and upgrading a PFC500/E
58 PFC500/E Instruction Manual November 17, 2000

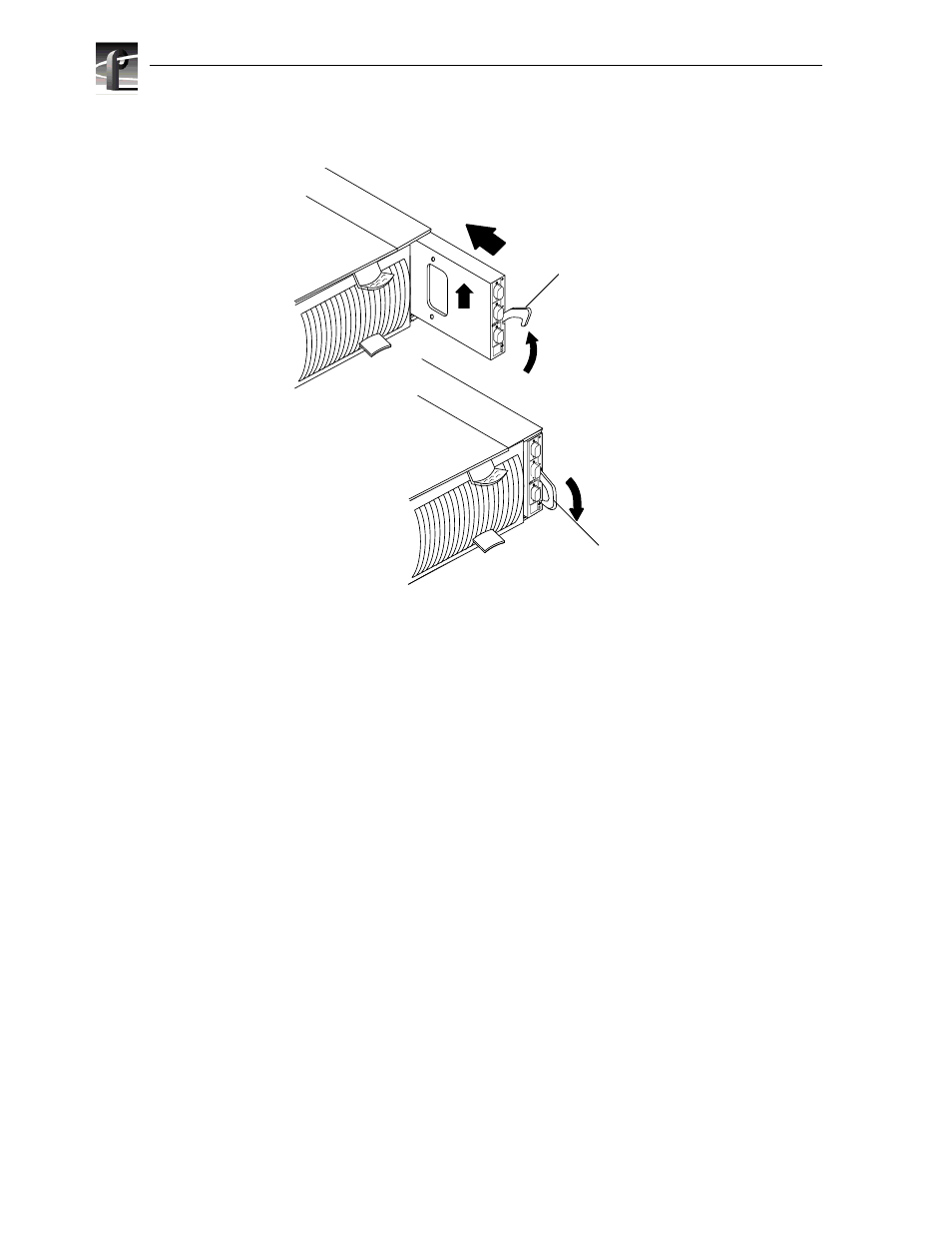

2. Gently insert the RC or RC filler module as shown below.
If you just installed an RC filler module, you are done. Remove and store the ESD
wristband.
If you just installed a replacement or add-on RC, the RC Active light turns on.
Continue to step 3.
A
B
EXP
A
B
EXP
Latch up
A. Pull up the latch on the RC.
B. Align the RC with the guide on the slot.
C. Gently slide the RC into the slot.
D. Push down the latch until the
RC is fully seated in the slot.
Latch down
