Chapter 3 Servicing and upgrading a PFC500/E
68 PFC500/E Instruction Manual November 17, 2000

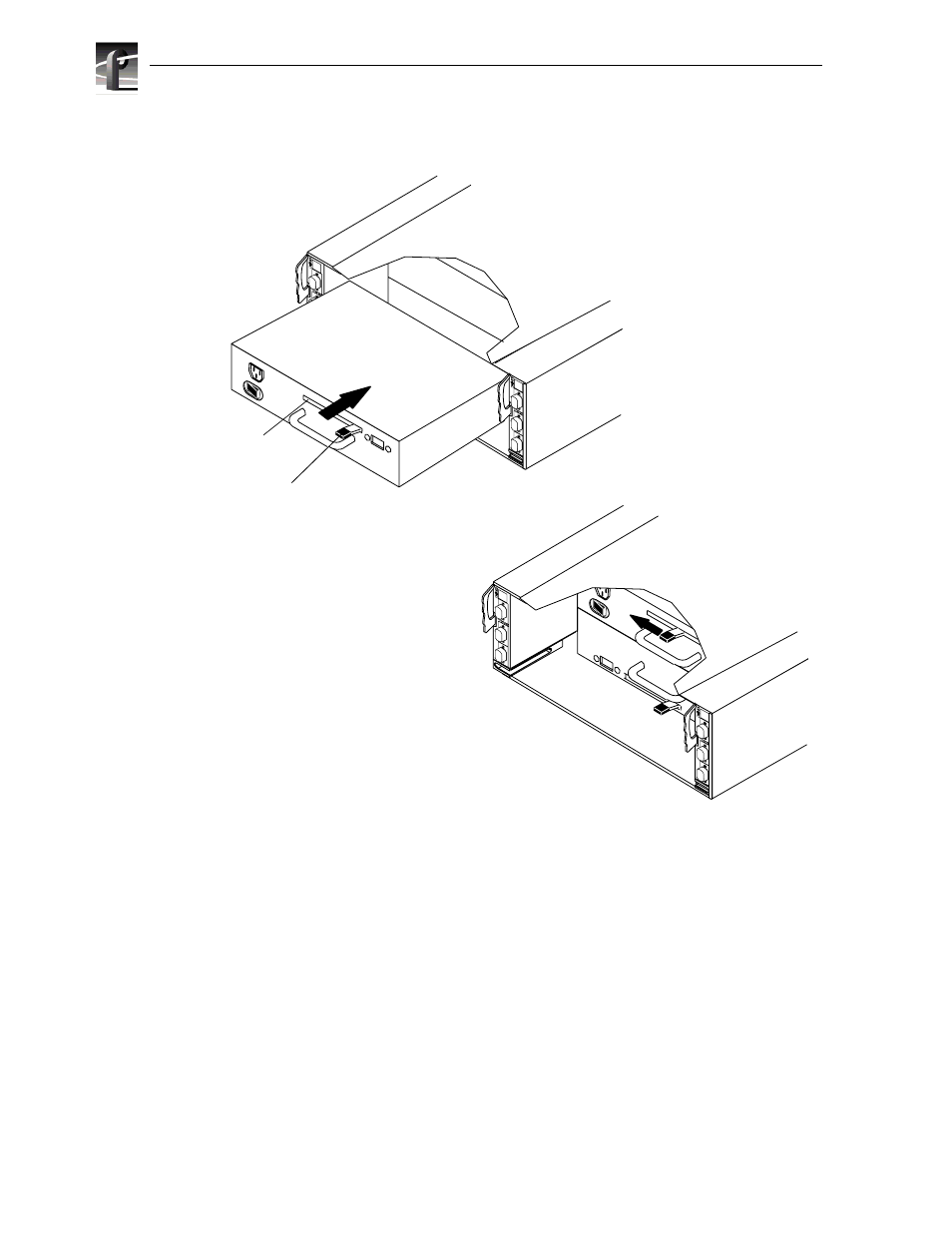

Installing the top power supply
A
B
E X P
A
B
E X P
A
B
E X P
A
B
E X P
Latch
Slot
A. Make sure that the supply’s latch is
as far right in the slot as possible.
B. Align the supply with the chassis slot
and gently push into the slot until the
latch moves to the middle of the slot.
C. With your thumb, push the latch right
until it snaps down.
You may need to brace your hand
against the supply’s handle.
