318 Test run and program run
13.1 Gr
aphics

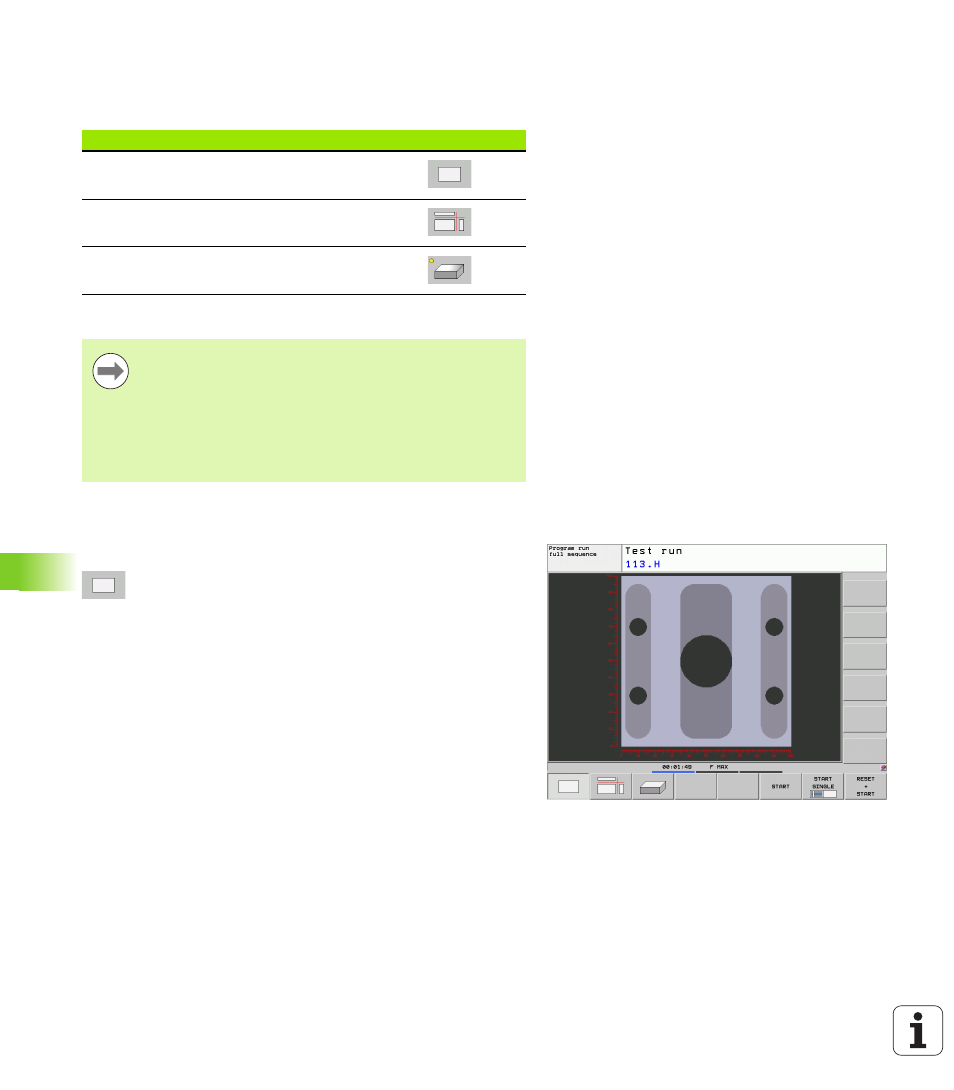

Overview of display modes
The TNC displays the following soft keys in the Program Run and Test
Run modes of operation:
Limitations during program run
Plan view
This is the fastest of the graphic display modes.
 Press the soft key for plan view
 Regarding depth display, remember: The deeper the
surface, the darker the shade
View Soft key
Plan view
Projection in three planes
3-D view
A graphical representation of a running program is not
possible if the microprocessor of the TNC is already
occupied with complicated machining tasks or if large
areas are being machined. Example: Multipass milling
over the entire blank form with a large tool. The TNC
interrupts the graphics and displays the text ERROR in the
graphics window. The machining process is continued,
however.
