HEIDENHAIN TNC 128 437
1
7.4 Pr
ogr
amming examples
17.4 Programming examples

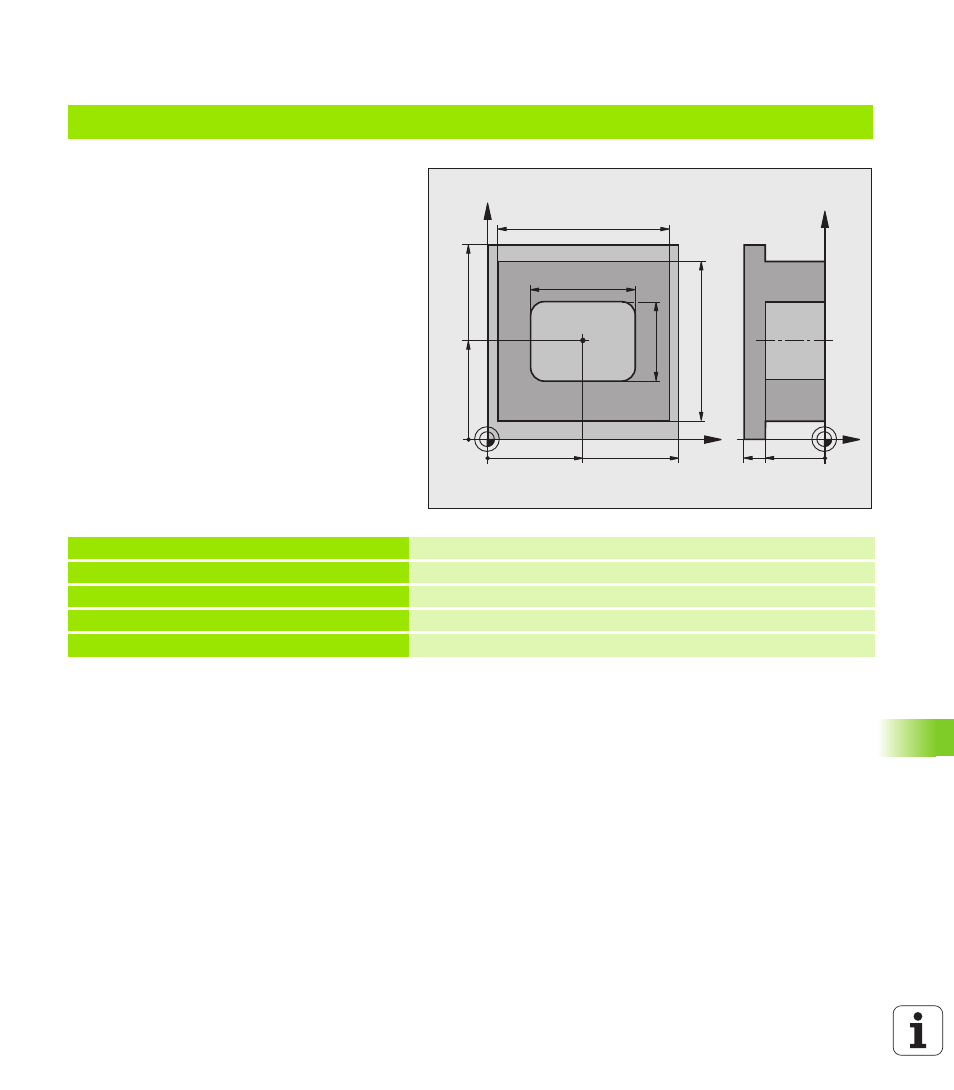

Example: Milling pockets, studs and slots
0 BEGIN PGM C210 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40 Definition of workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S3500 Call the tool for roughing/finishing
4 Z+250 R0 FMAX Retract the tool
X
Y
50
100
100
80
90
Z
Y
-40 -30 50
60
40
