HEIDENHAIN TNC 128 59
2.2 V
isual displa
y unit and k
e
yboar
d Operating panel

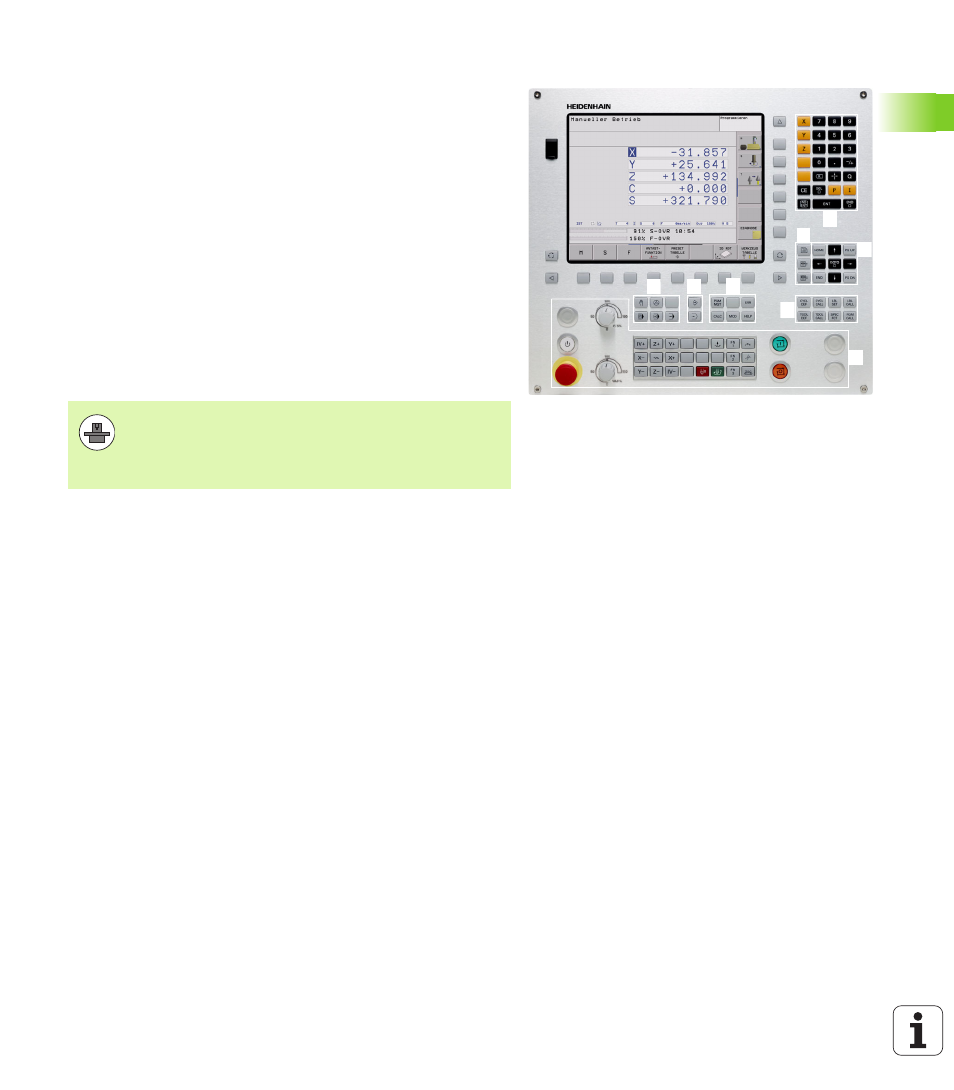

The TNC 128 is delivered with an integrated keyboard. The figure at
right shows the controls and displays of the keyboard:
The functions of the individual keys are described on the inside front
cover.
1 7
5
1 3 2
4
6
8
1  File management
 Calculator
 MOD function
 HELP function
2 Programming modes
3 Machine operating modes
4 Initiation of programming dialog
5 Arrow keys and GOTO jump command
6 Numerical input and axis selection
7 Navigation keys
8 Machine operating panel
The keys on the operating panel are assigned to machine-
dependent functions. Refer to your machine manual.
Machine panel buttons, e.g. NC START or NC STOP, are
described in the manual for your machine tool.
