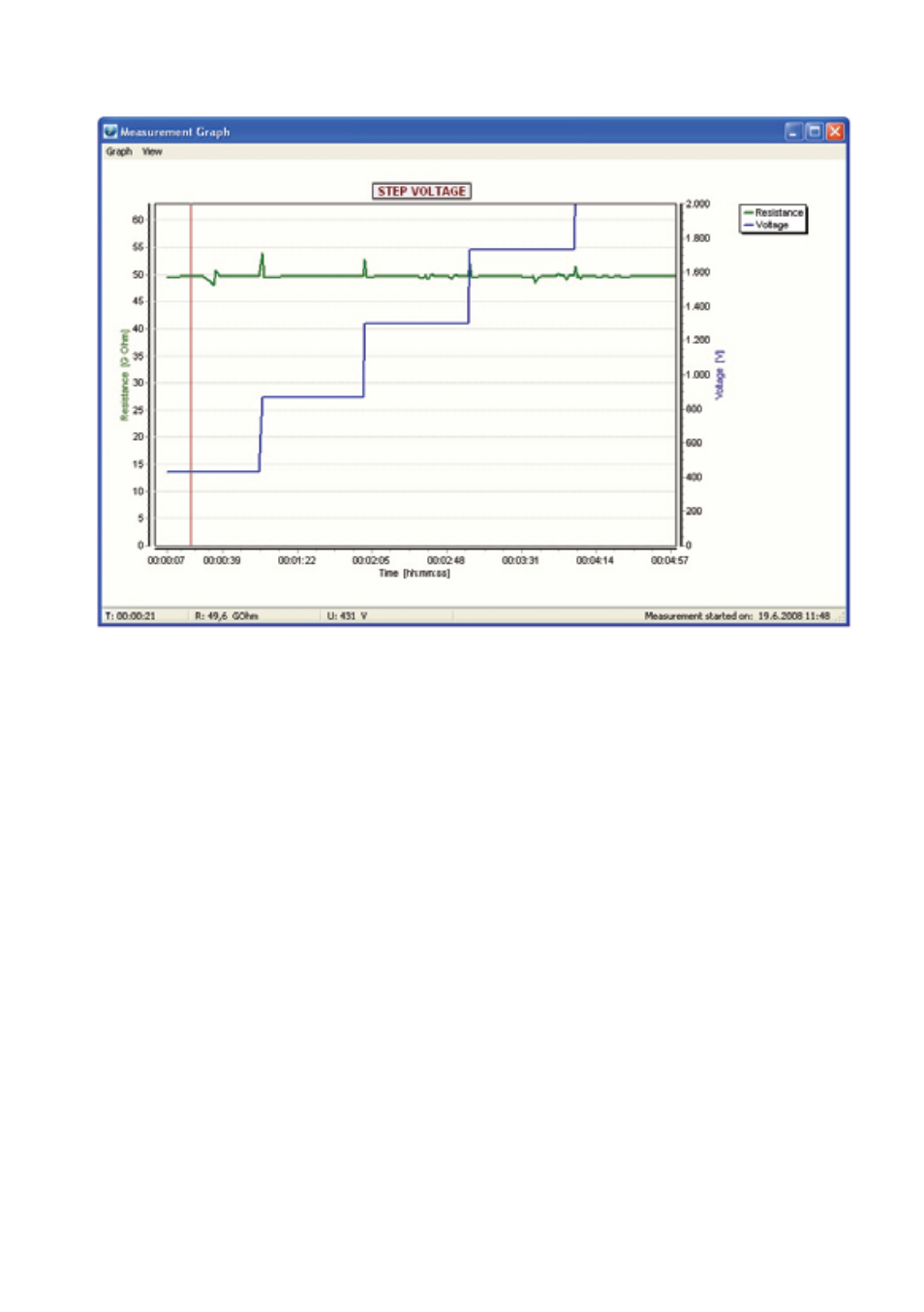

Graph command enables you to Print and Close graph.
View command enables you Auto Range, Restore Range and Refresh Data.
Print: prints graph
Close: closes graph
Auto Range: sets maximal value of Resistance X axis to optimal value due to max. resistance value.
Restore Range: sets maximal value of Resistance X axis to original value.
Refresh: repaints complete image of graph.
Zoom function enables you to see graph details. Press left mouse button and select range with dragging mouse
right.
For zoom out graph press left mouse button and drag mouse left.
Status bar shows cursor values of the Resistance, Voltage and time.
