The Time-to-Live (TTL) field of query messages is set to 1 so that the queries will not be forwarded to other sub networks.
IGMP version 2 introduces some enhancements such as a method to elect a multicast queried for each LAN, an explicit leave
message, and query messages that are specific to a given group.

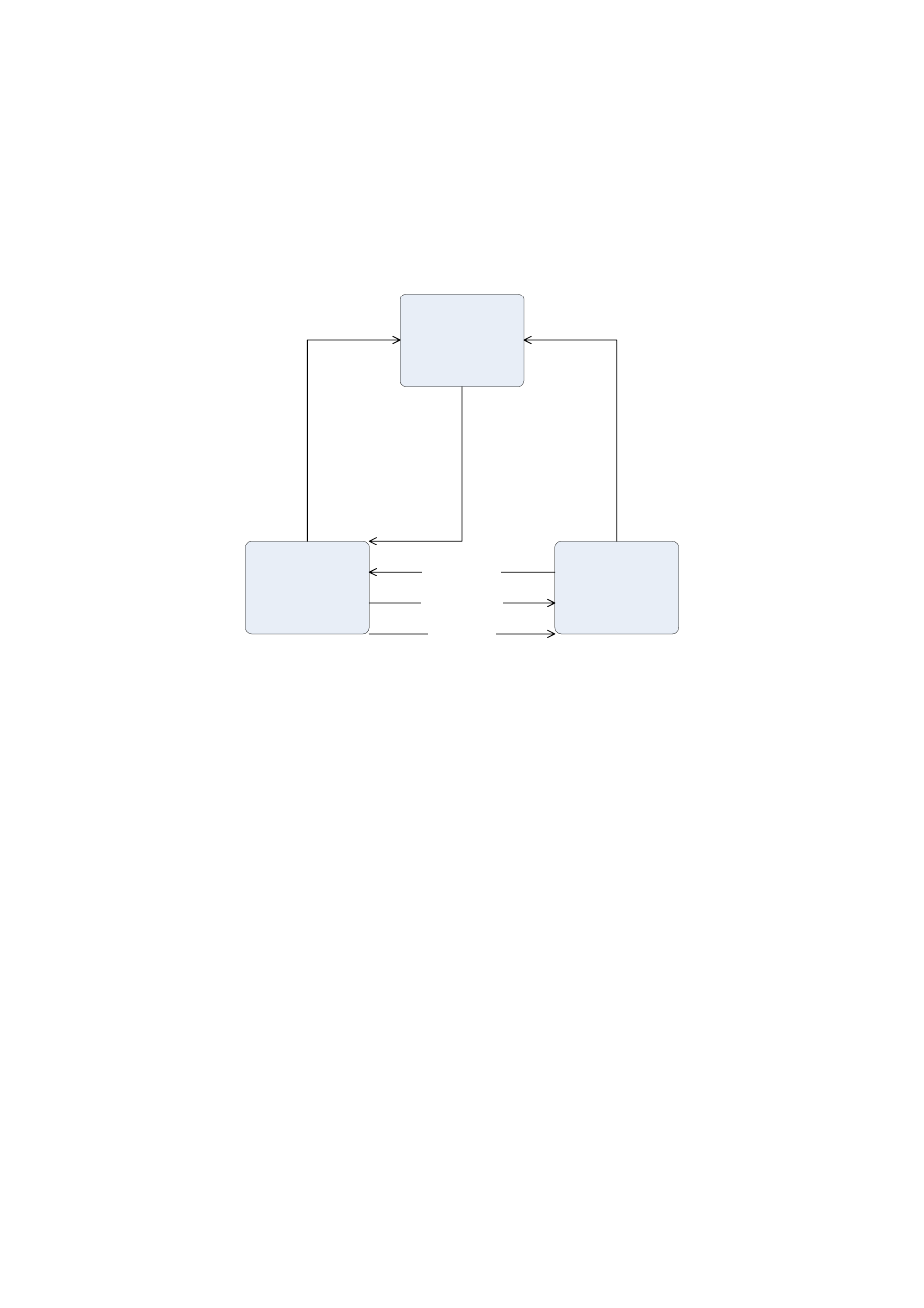

The states a computer will go through to join or to leave a multicast group are shown below:
Non-Member
Delaying Member Idle Member
Leave Group
Leave Group
(Stop Timer)
Join Group
(Send Report,
Start Timer)
Query Received
(Start Timer)
Report Received
(Stop Timer)
Timer Expried
(Send report)
IGMP State Transitions
