Audio input sensitivity set to MIC. The ‘Phantom’ power supply is disabled.
Use: dynamic microphones.
MIC PHANTOM
Audio input sensitivity set to MIC. The ‘Phantom’ power supply is enabled.
Use: electret microphones.
LINE
Audio input sensitivity set to LINE. The ‘Phantom’ power supply is disabled.
Use: ‘line’ level signals.
h

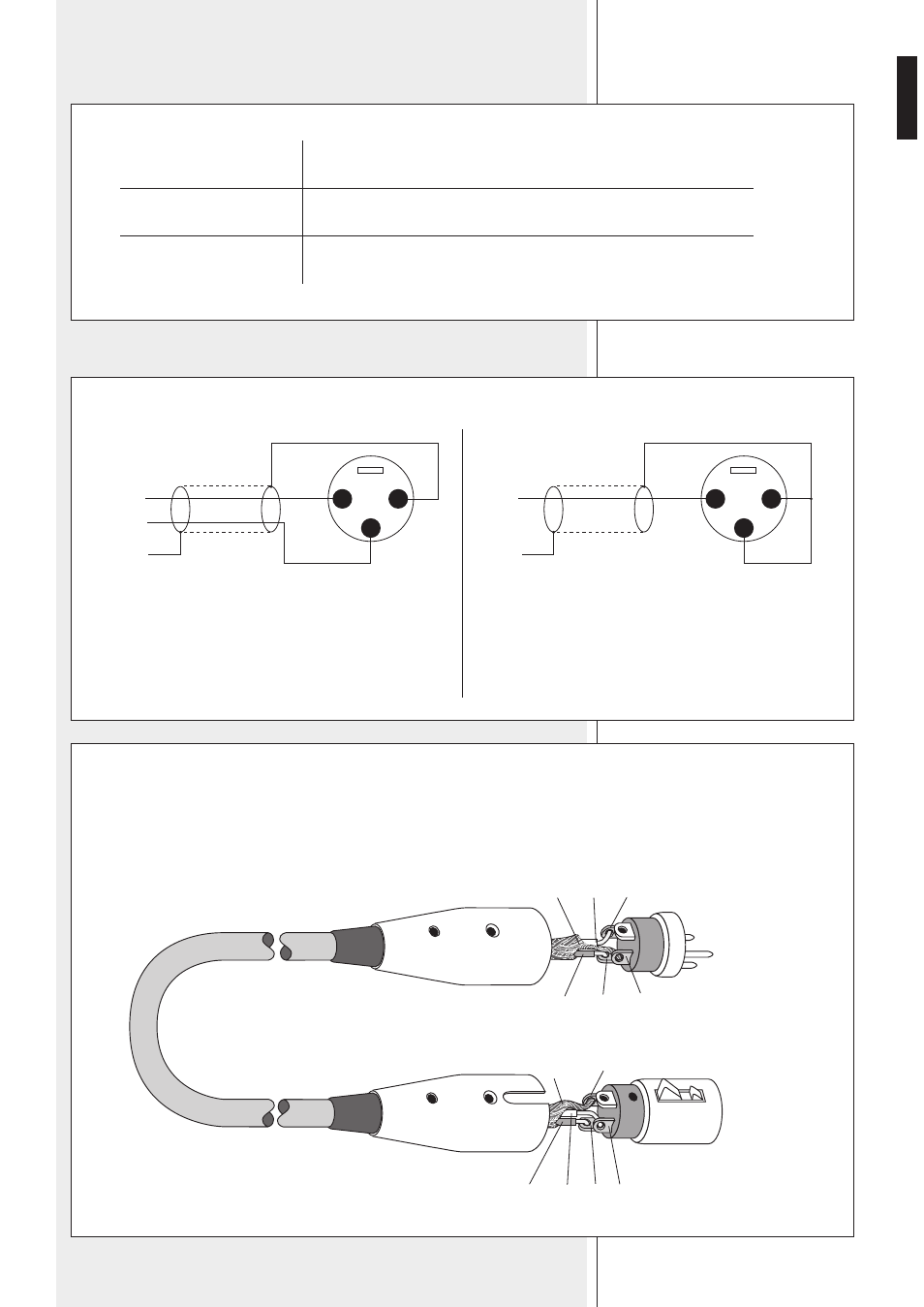

MIC/LINE 4 audio input (combo XLR – 1/4” jack connector):
BALANCED CONNECTION + HOT
– COLD
GND GROUND
UNBALANCED CONNECTION + HOT
GND GROUND
1 – SHIELD (GND)
2 – HOT (+)
3 – COLD (–)
MIC CABLE WITH XLR CONNECTORS
SHIELD
SHIELD
COLD
COLD HOT
3
3 2
1
1
HOT 2
XLR SOCKET
g MIC/LINE 4 audio input switch.
