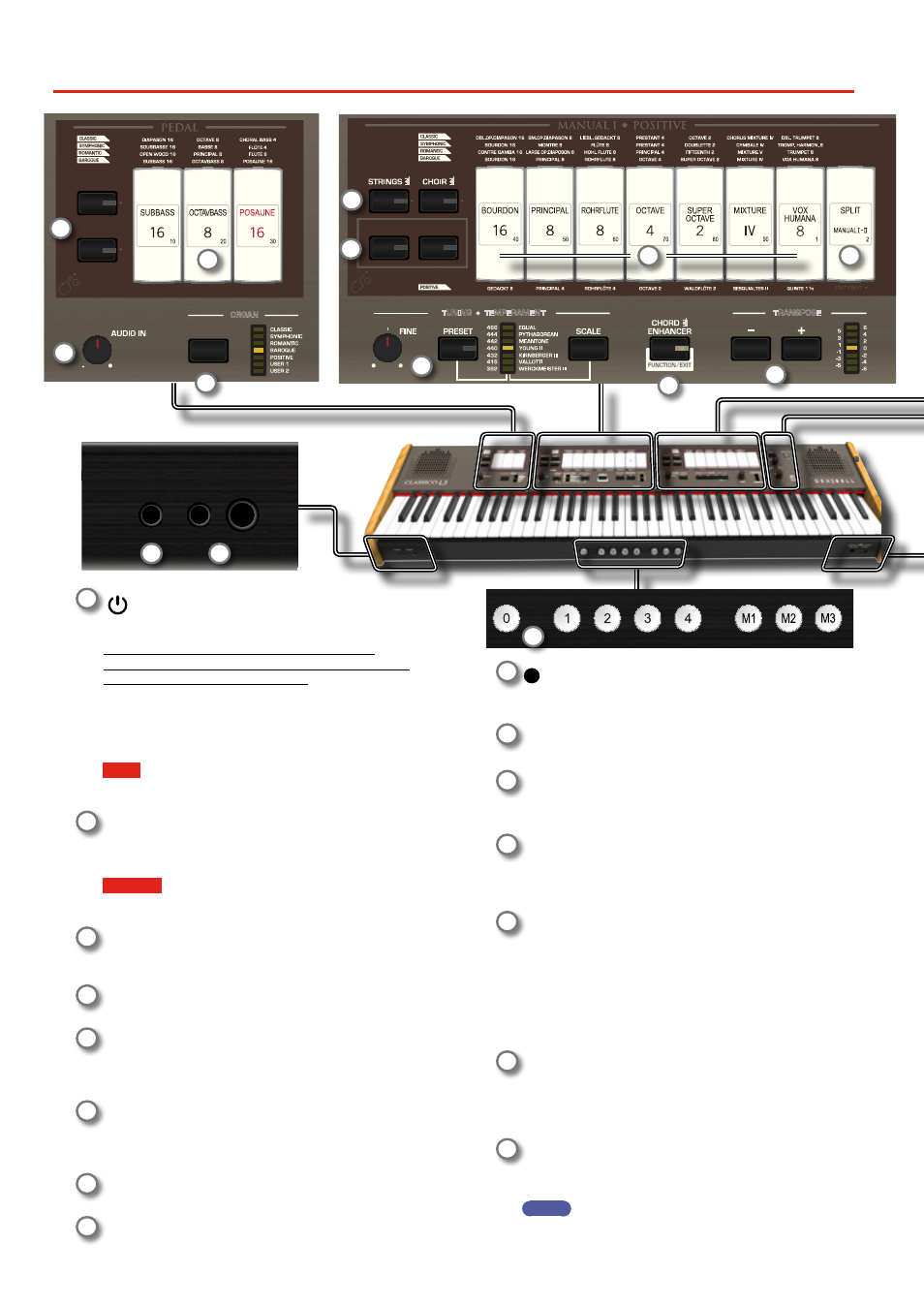

Panel Description
3
1
Turns the power on or off (p. 19).
With the factory settings CLASSICO L3’s power will
automatically be switched off 120 minutes after you stop
playing or operating the CLASSICO L3.
If CLASSICO L3’s power has been turned off automatically,
you can use the [ " ] switch to turn the CLASSICO L3 back on.
If you don’t want the power to turn off automatically, set the
“AUTO OFF” parameter to “OFF” (p. 43).
NOTE
To avoid malfunctions, never disconnect the AC/DC adapter while
the instrument is turned on.
2 POWER PORT
Use this connector to connect the supplied LED lamp. See
p. 19.
WARNING
Do not connect any other devices to this power port. An excessive
current consumption can damage the instrument.
3 BALANCE
Use this knob to balance the volume between the Manual I/
Pedal and Manual II division.
4 VOLUME
Use this knob to set CLASSICO L3’s overall volume.
5 FLUTE, VIOLIN, OBOE, TRUMPET
These buttons allow you to select an orchestral sounds for
the MANUAL II division. One of those sounds can be added
to the organ section. See p. 23.
6
MANUAL II Tilt Tabs
These tilt tabs allow you to select an organ sound. You can
use several organ sounds simultaneously.
7 TREMULANT Tilt Tabs
These apply a tremulant effect to the selected organ sound.
8 REVERB section
This section adjusts the DEPTH and TYPE of reverberation.
9 (
Rec
)
This button is used to start audio recording of your song
(See p. 37).
10 $
Press this button to return to the beginning of the song.
11 * - ,
Press this button to start playing . Press it again to stop
playing (See p. 35).
12 SONG
This button allows you to switch in Song Mode to reproduce
song via USB menory (See p. 35).
Press it together with the [
*-, ] button to listen the demo song.
13 TONE/LEVEL knob
Using this knob you can adjusts:
• the high-frequency tone for the sound selected. See 26.
• the volume of the Orchestral sections. See p. 29.
• the volume of the Piano and Harpsichord sections. See p. 29.
• the volume each Organ register. See p. 29.
The (CRESCENDO) LED meter temporarily shows the value set.
14 STRINGS, CHOIR
These buttons allow you to select orchestral (STRING,CHOIR)
sounds for the MANUAL I division. One of those sounds can
be added to the organ section. See p. 23.
15 PIANO, HARPSICHORD
These buttons allow you to select piano and harpsichord
sounds for the MANUAL I division. See p. 25.
MEMO
The selection of a sound of Piano section (PIANO or
HARPSICHORD) exclude the organ section.
PIANO HARPSICHORD
