19

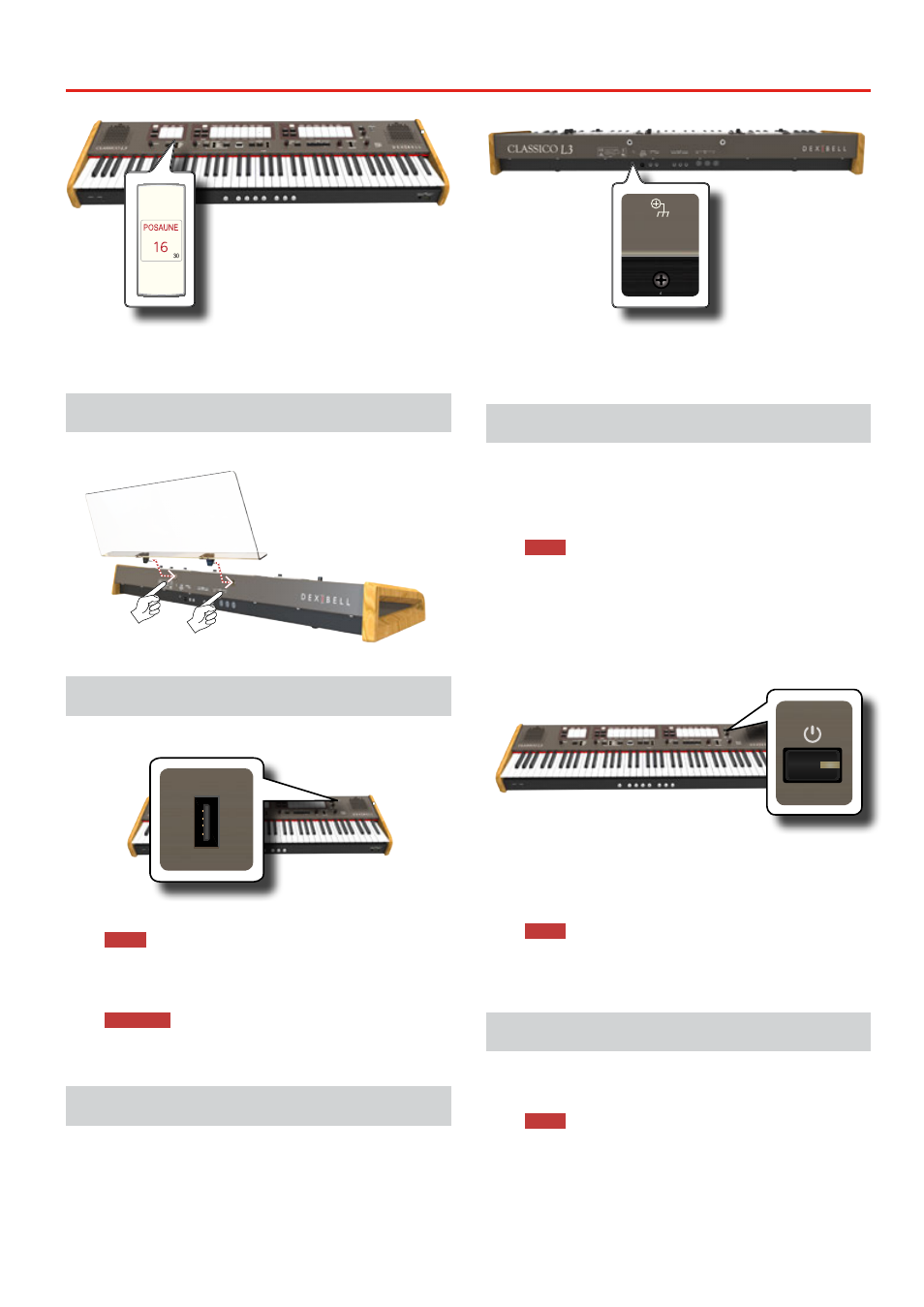

Installing Music Rest
The "30" tilt tab indicator starts flashing and after few seconds the
instrument leaves the function mode.
Now you can unplug the USB Memory safely.
Installing Music Rest
Install the included music rest as shown in the illustration below.
Installing the USB LED Lamp
The CLASSICO L3 is equipped with a 5 Volt POWER PORT. When the light is
not enough to read music, you can connect the flexible USB LED lamp.
VOLUME
PEDAL
POWER PORT
5 VOLT
1.
Connect the flexible LED lamp to the POWER PORT.
NOTE
Carefully insert the LED lamp making sure that the connector on
the device is appropriate and that it is connected in the proper
direction.
WARNING
Do not connect any other devices to this power port. An
excessive current consumption can damage the instrument.
Ground Terminal
Depending on the circumstances of a particular setup, you could feel a
tingling sensation at the point where you touch this device.
You can eliminate this sensation connecting the ground terminal with an
external ground.
THE CLASSICO L3 REAR SIDE
1.
Use the screw-type ground terminal to connect to ground
or to connect to the chassis of the mixer, preamp, or other
device in your system.
Turning the Power On
Once everything is properly connected, be sure to follow the procedure
below to turn on their power.
1.
Rotate the [VOLUME] knob toward the left position to
minimize the volume.
NOTE
Before turning the CLASSICO L3 on/off, always be sure to turn
the volume down. Even with the volume turned down, you
might hear some sound when switching the CLASSICO L3 on/
off.
However, this is normal and does not indicate a malfunction.
2.
Press the CLASSICO L3’s [ " ] button located on the right
panel to switch it on.
VOLUME
PEDAL
POWER PORT
5 VOLT
The power will turn on, the tilt tab indicators light in sequence.
After a brief interval, the CLASSICO L3 will be ready to produce
sound.
3.
Use the [VOLUME] knob to adjust the volume.
NOTE
This unit is equipped with a protection circuit. A brief interval
(a few seconds) after power up is required before the unit will
operate normally.
Turning the Power Off
1.
Rotate the [VOLUME] knob toward the left position to
minimize the volume.
NOTE
To avoid malfunctions, never disconnect the AC/DC adapter
while the instrument is turned on.
2.
Press and hold the CLASSICO L3’s [ " ] switch for a few
seconds.
All indicators go dark and the LED meter of TRANSPOSE flashes to
indicate that the unit will turn off after few seconds.
