Connecting External Audio Amplifier
PHONES AUDIO IN
2.
Rotate the CLASSICO L3’s [VOLUME] knob to adjust the
volume of the headphone.
Cautions when using headphones
• To prevent damage to the cord’s internal conductors, avoid rough
handling. When using headphones, mainly try to handle either the
plug or the headset.
• Your headphones may be damaged if the volume of a device is
already turned up when you plug them in. Minimize the volume
before you plug in the headphones.
• Excessive input will not only damage your hearing, but may also
strain the headphones. Please enjoy music at a reasonable volume.
Connecting External Audio Amplifier
You can connect the OUTPUT R L/MONO jacks to an external
amplifier, mixing consoles, etc.
NOTE
If you want to use only one channel on your external amplifier,
connect the L/MONO socket to its input. For optimum sound
quality, we recommend working in stereo, though.
1.
Rotate the [VOLUME] knob toward the left position to
minimize the volume.
2.
Connect the CLASSICO L3’s OUTPUT jacks to the inputs of
your external audio device.

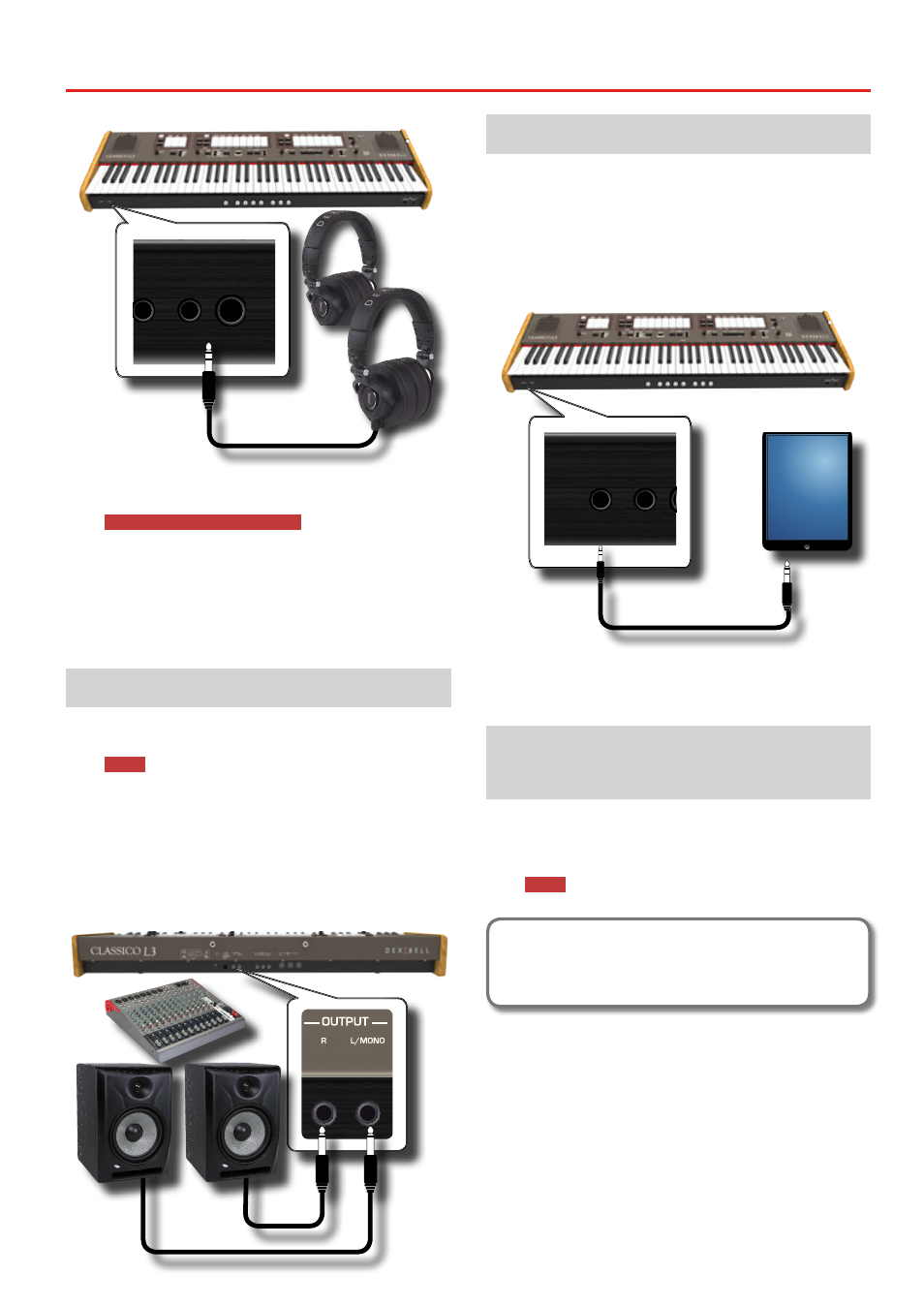

REAR SIDE
Connecting Digital Player Devices
You can connect the INPUT jack to an audio playback device.
The audio of playback will be reproduced with the CLASSICO L3's
internal speakers .
1.
Rotate the [VOLUME] knob toward the left position to
minimize the volume.
2.
Connect the CLASSICO L3’s AUDIO IN jack to the output of
an external signal source.
PHONES AUDIO IN
3.
Use the AUDIO IN knob to adjust the input level the
CLASSICO L3’s AUDIO IN jack to the output of the signal
received .
Connecting the CLASSICO L3 to Your
Computer
If you use an USB cable (commercially available) to connect the
COMPUTER port located on the CLASSICO L3’s front panel to the
USB port of your computer, you’ll be able to transfer MIDI data
between the CLASSICO L3 and your sequencer software.
NOTE
The CLASSICO L3 does not support GM/GS standard.
What do you need to connect the CLASSICO L3 with
your computer?
• USB cable (type A–male - type B–male: commercially available)
1.
Use a standard USB cable (A g B-type connectors,
commercially available) to connect the CLASSICO L3 to
your computer as shown below.
