Before You Start to Play
PHONES AUDIO IN
NOTE
• To avoid the risk of malfunction and/or damage to external
speakers, always turn the volume all the way down and switch off
the power on all devices before you make any connections.
• Only MIDI data can be transmitted and received via USB. Audio data
cannot be transmitted or received.
• Switch on the power to the CLASSICO L3 before you start up the
MIDI application on your computer. Never turn the CLASSICO L3’s
power on/off while your MIDI application is running.

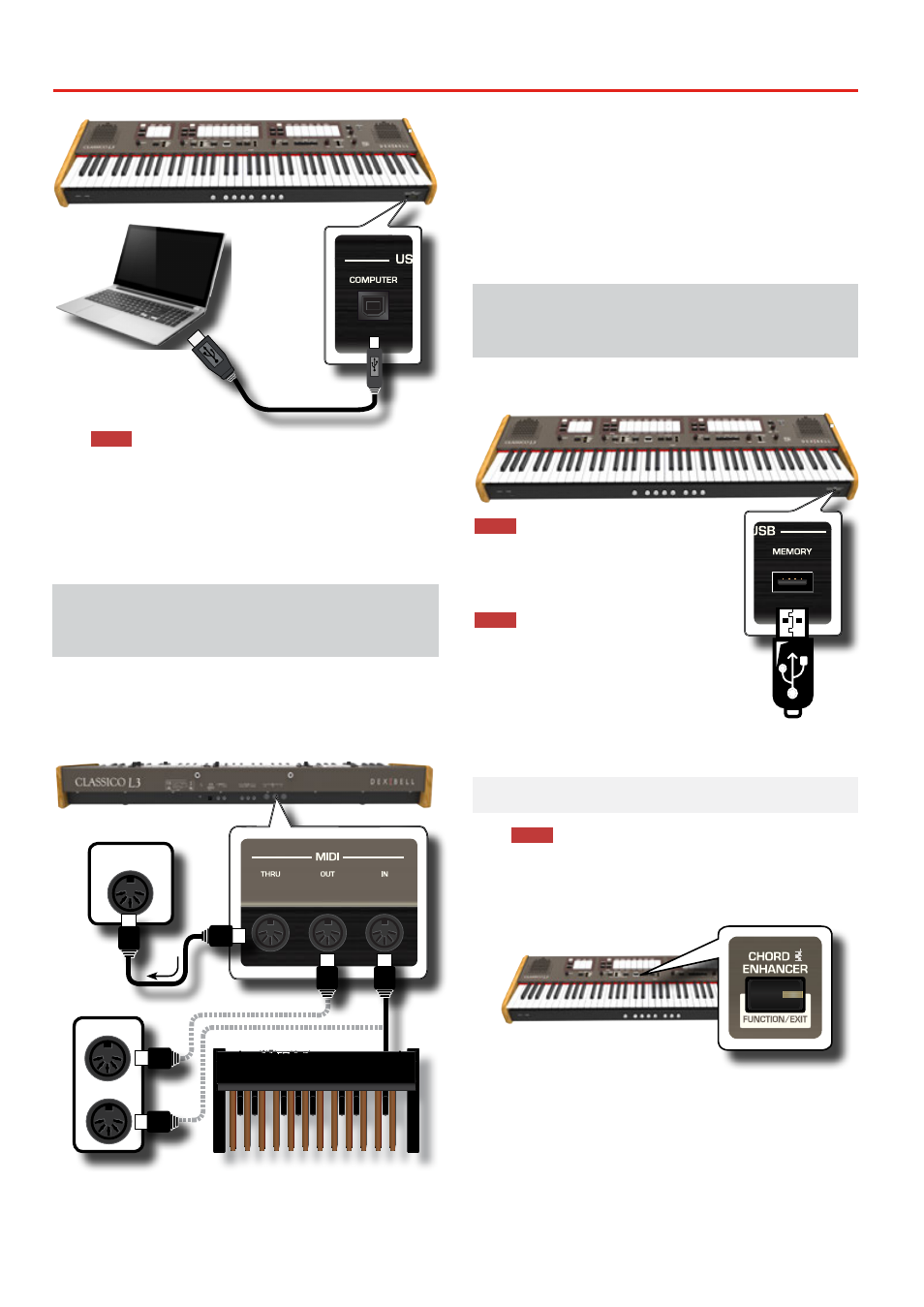

Connecting the CLASSICO L3 to MIDI
devices
MIDI is an universal standard, which means that musical data can
be sent to and received by instruments of different types and
manufacturers. MIDI allows you to connect your instrument to
another devices as an MIDI sound module.
Here below an example of MIDI connection:
THE CLASSICO L3 REAR SIDE
IN
MIDI sound module/sequencer
To control other MIDI devices
IN
OUT
Pedal Board
MIDI PedalBoard
1.
Use a optional standart MIDI cable (code: CHL400LU15) to
connect the CLASSICO L3 MIDI OUT socket to the MIDI IN
socket of the external MIDI device.
2.
If necessary, use an optional standard MIDI cable (code:
CHL400LU15) to connect the MIDI OUT socket of the
external MIDI device to the CLASSICO L3 MIDI IN socket.
3.
If you need to re-send the MIDI messages received by
the CLASSICO L3 OUT socket to another device, connect
the THRU socket using an additional MIDI cable (code:
CHL400LU15) to the relative MIDI IN socket.
For details on MIDI settings of the external device, refer to its
owner’s manual.
Connecting an USB Memory
(commercially available)
1.
As shown in the illustration, connect an USB Memory to
the MEMORY port.
PHONES AUDIO IN
NOTE
Carefully insert the USB Memory making
sure that the connector on the device is
appropriate and that it is connected in the
proper direction.
NOTE
The CLASSICO L3 supports all USB memory (FAT
32 formatted).
Anyway, because there are so many USB
memory on the market and it is almost
impossible to check all types of memories, it
could happen that a memory is not compatible
with your instrument.
Safely Remove the USB Memory
NOTE
You should always safely eject the USB Memory before
physically unplugging it from USB socket. Before to unplug the
USB Memory use the "USB REMOVE" function.
1.
Press and hold the [FUNCTION/EXIT] button.
PIANO HARPSICHORD
TUNING TEMPERAMENT TRANSPOSE
The [FUNCTION/EXIT] button flashes to indicate that we are in
function mode. All other indicators go dark.
2.
Press the lower part of the "30" tilt tab to safely remove
the USB Memory.
