Panel Description
30 31 32 33 34 35
30 Ground terminal
Depending on the circumstances of a particular setup, you
could feel a tingling sensation at the point where you touch
this device.
You can eliminate this sensation connecting the ground
terminal with an external ground. For details see p. 19.
31 DC IN socket
Connect the supplied AC/DC adapter here (p. 16).
NOTE
Be sure to use only the AC adaptor (DEXIBELL DYS602-240250W)
supplied with the unit. Also, make sure the line voltage at the
installation matches the input voltage specified on the AC
adapter body. Other AC adapters may use a different polarity, or
be designed for a different voltage, so their use could result in
damage, malfunction, or electric shock.
32 AUDIO OUTPUT R, L/MONO sockets
This socket allows you to connect an external amplified
speakers. a mixer or a subwoofer.
33 CRESCENDO pedal
Use this socket to connect an crescendo pedal (expression
pedal). The crescendo pedal incrementally activates tilt
tabs as it is pressed forward and removes tilt tabs as it is
depressed backward. See p. 16.
This socket can also be used as a continuous Damper pedal.
Please refer to "CRESCENDO PEDAL" (p. 45).
34 DAMPER pedal
Use this pedal to sustain the sound. See p. 16..
35 EXPRESSION pedal
Use this socket to connect an expression pedal.
36 MIDI THRU/OUT/IN sockets
These sockets allow you to connect the CLASSICO L3 to external
MIDI devices to transmit (OUT) and receive (IN) MIDI messages. See
p. 18.
The IN socket allows you to connect a commercial available
pedal unit so as to play the bass section with your feet. If
you connect a pedal unit here, the PEDAL section becomes
polyphonic.

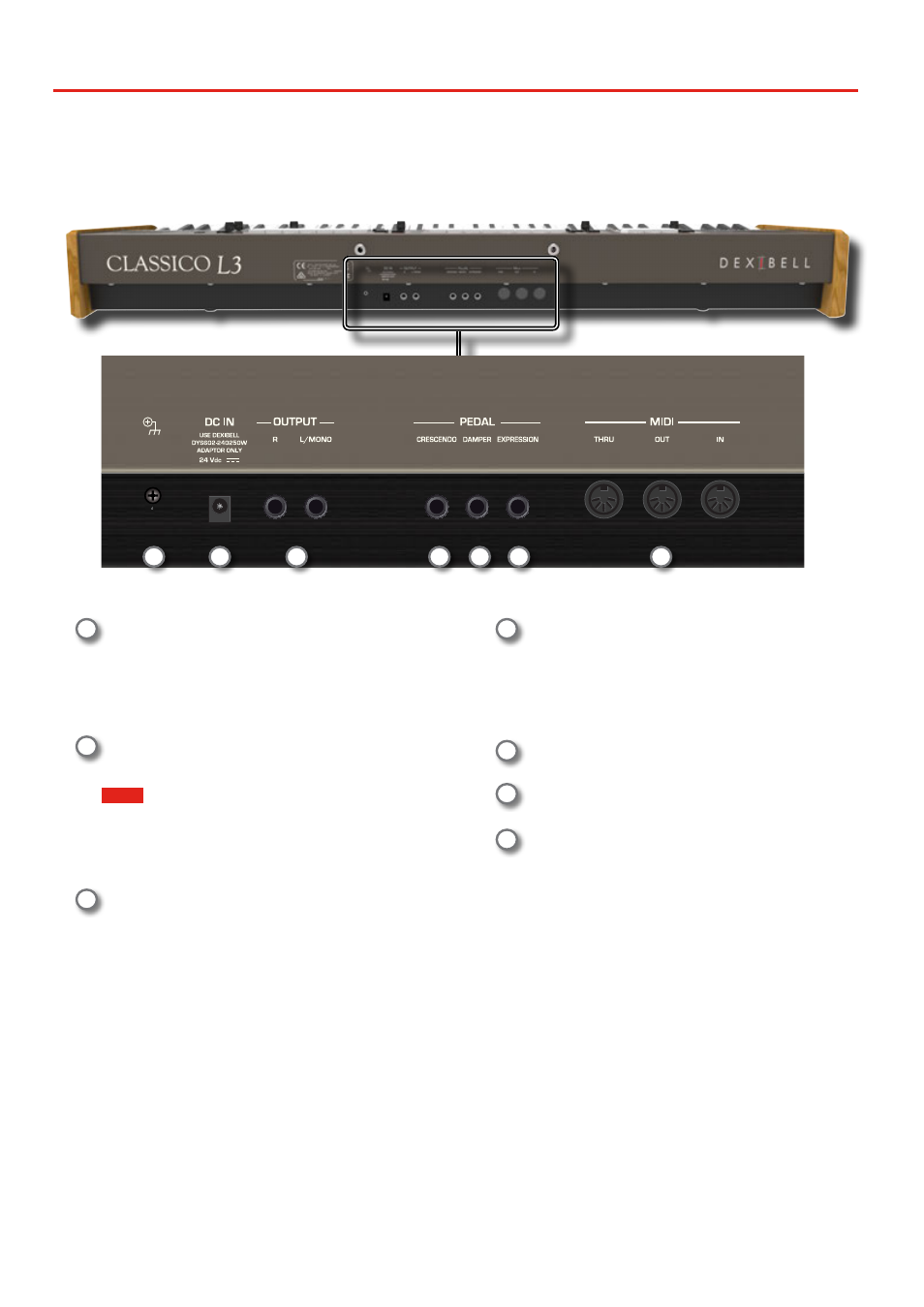

Rear Side
36
