16

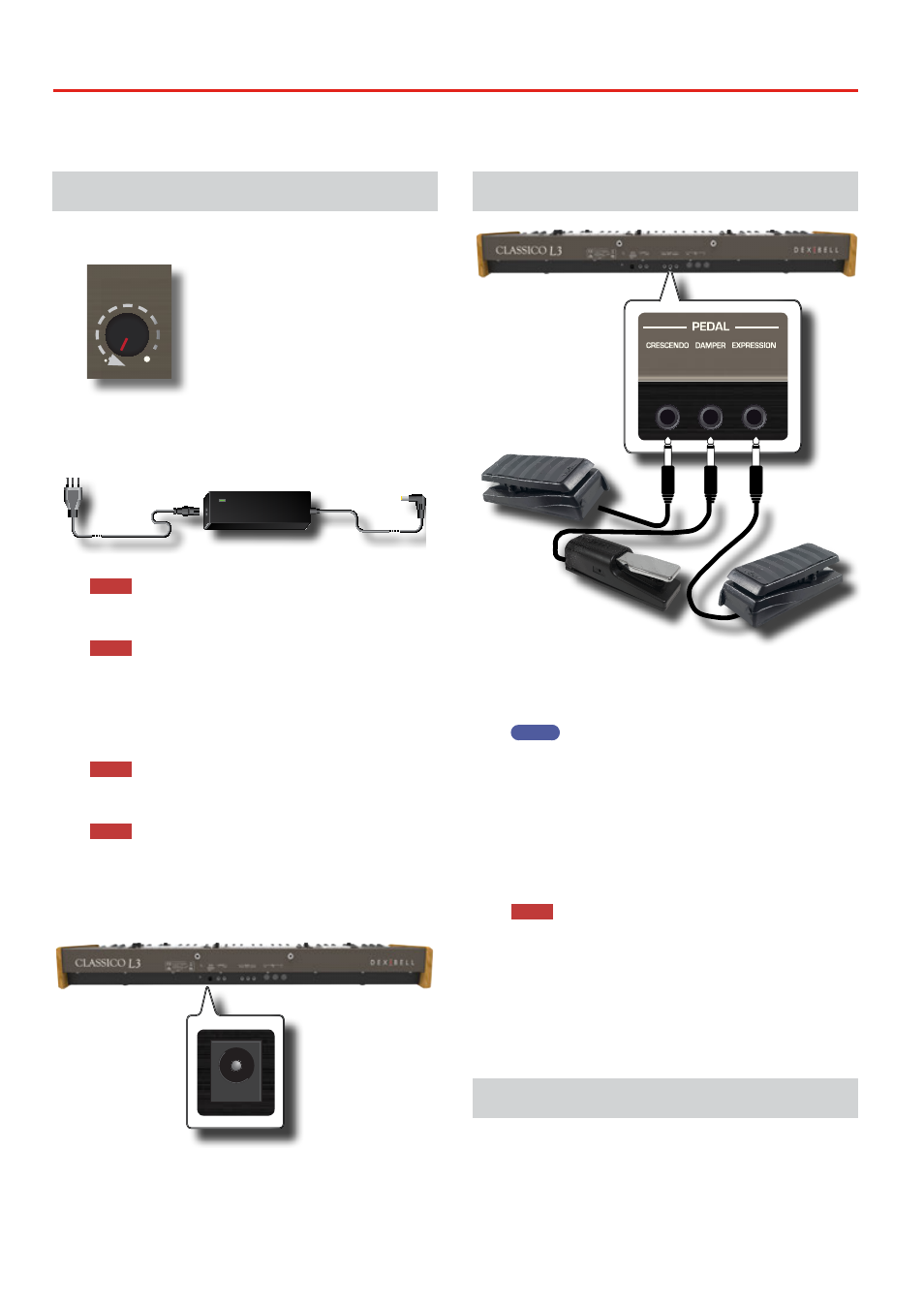

Before You Start to Play
6
Connecting the AC Adaptor
1.
Rotate the [VOLUME] knob toward the left position to
minimize the volume.
VOLUME
PEDAL
POWER PORT
5 VOLT
2.
Connect the included power cord to the AC adapter.
The indicator will light once you plug the AC adaptor into a wall
outlet.
Power cord
AC Adapter
To an AC outlet
NOTE
Depending on your area, the included power cord may differ
from the one shown above.
NOTE
Be sure to use only the AC adaptor (DEXIBELL DYS602-240250W)
supplied with the unit. Also, make sure the line voltage at the
installation matches the input voltage specified on the AC
adapter body. Other AC adapters may use a different polarity, or
be designed for a different voltage, so their use could result in
damage, malfunction, or electric shock.
NOTE
If you won’t be using the CLASSICO L3 for an extended period of
time, disconnect the power cord from the electrical outlet.
NOTE
To avoid malfunctions, never disconnect the AC/DC adapter
while the instrument is turned on.
3.
Connect the AC adaptor to the CLASSICO L3’s DC IN jack
positioned to the rear bottom panel.
Connecting the Pedals
REAR SIDE
Expression Pedal
Damper Pedal
Expression Pedal
1.
Connect an expression pedal to the CRESCENDO socket.
The crescendo pedal incrementally activates stops as it is pressed
forward and removes stops as it is depressed backward.
MEMO
This socket can be use to connect a continuous Damper pedal
also. To set the pedal as damper please see "CRESCENDO PEDAL"
(p. 45).
2.
Connect a damper switch to the DAMPER PEDAL socket.
This pedal is useful to control the sustain while playing piano
section. You will be able to hold the notes of the PEDAL, MANUAL
I orchestral sections. The sections can be assignable. See "Damper
Pedal Settings" (p. 43).
NOTE
The DAMPER socket accepts foot-switch ON/OFF type only.
3.
Connect an expression pedal to the EXPRESSION PEDAL
socket.
You can control the volume of the Organ, Orchestra and Piano
sections.
The EXPRESSION socket is assignable in a way that various functions
can be assigned to it. See "Expression Pedal Settings" (p. 43).
Listening Through Headphones
You can use headphones to enjoy the CLASSICO L3 without
disturbing those around you.
1.
Here you can connect stereo headphones. The
CLASSICO L3 has two headphones jacks . Two people can
use headphones simultaneously.
