Lincoln Electric INVERTEC SVM199-A - Manual (Page 116)

Fro nt Tilt s F orw ard CONTROL BOARD 3/8” MOUNTING BOLTS (4) DISPLAY BOARD MODE BOARD
Fron
t Tilt
s Fo
rwar
d
CONTROL BOARD
3/8” MOUNTING
BOLTS (4)
DISPLAY BOARD
MODE
BOARD

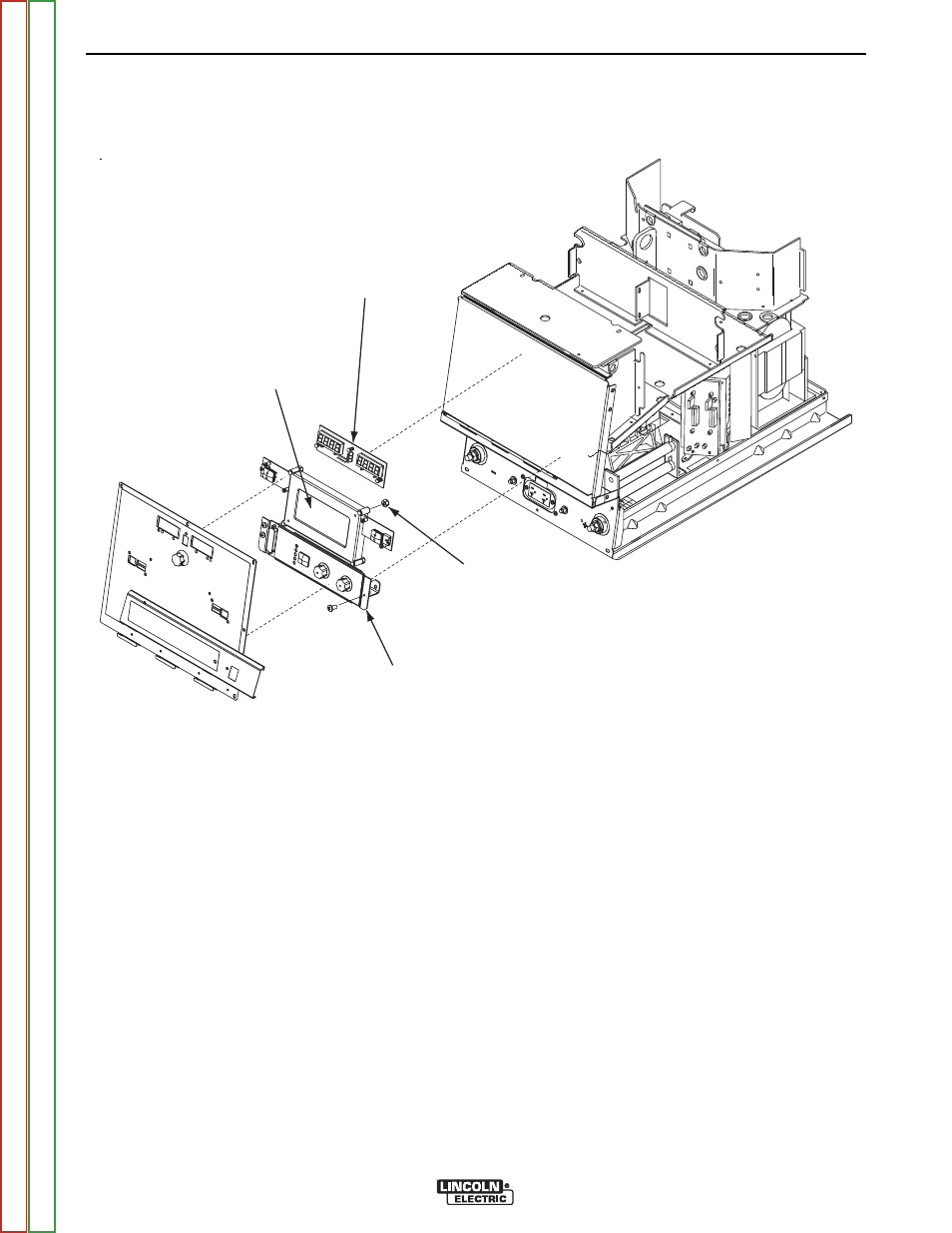

FIGURE F.21 – BOARD LOCATIONS
CONTROL, REMOTE, MODE OR DISPLAY PC BOARD
REMOVAL AND REPLACEMENT (continued)
REMOVAL PROCEDURE
1. Remove input power to the V450-PRO.
2. Using the Phillips screwdriver, remove the case
front mounting screws and tilt forward.
3. Observe all static electricity precautions.
4. Remove, replace and add panels as needed
and/or follow advanced process panel kit
instructions.
TROUBLESHOOTING AND REPAIR F-76 F-76
INVERTEC® V450-PRO
