ELECTRICAL DIAGRAMS
G-18
INVERTEC® V450-PRO

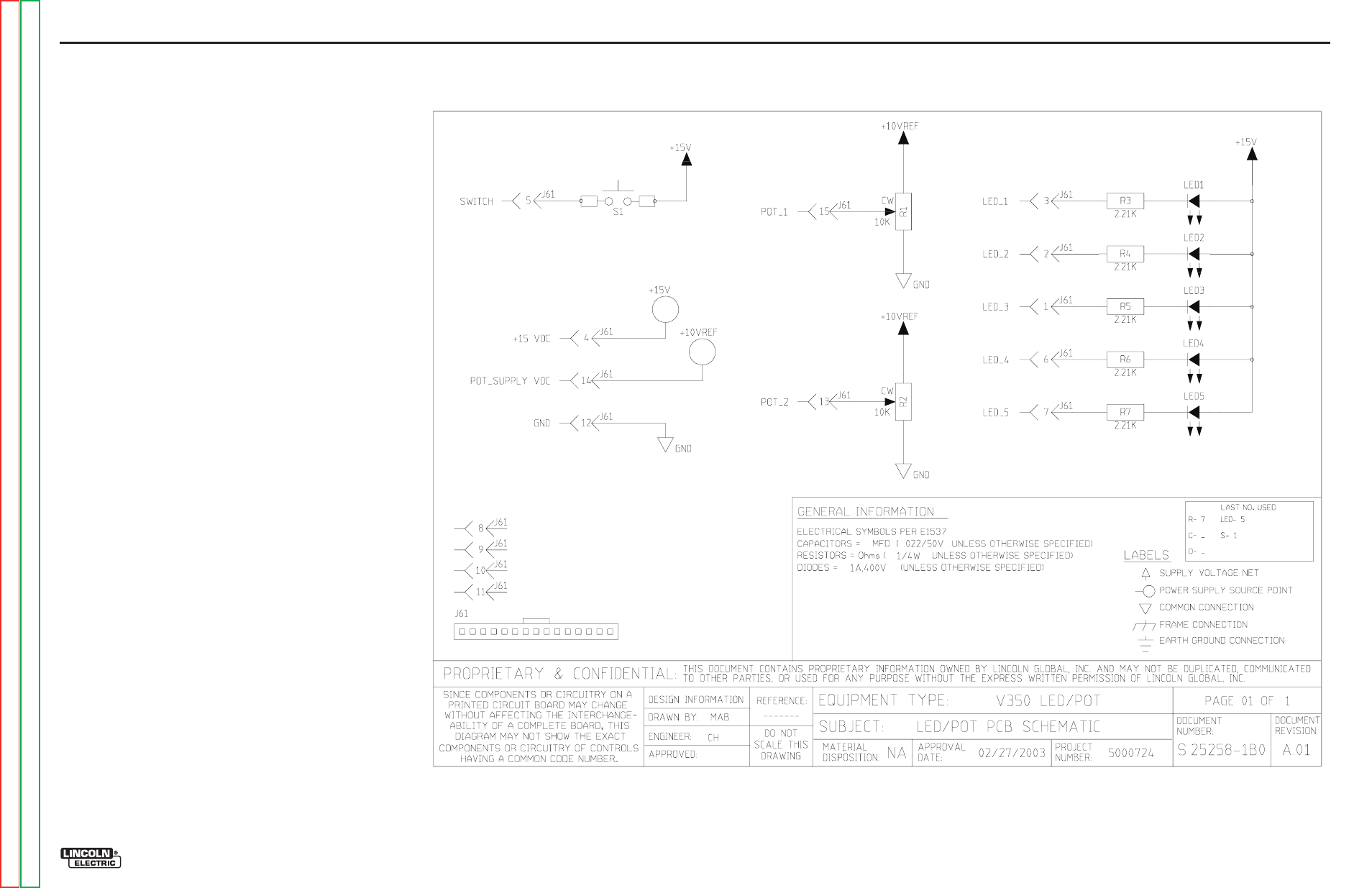

SCHEMATIC - LED POTENTIOMETER PC BOARD - (S25258)
G-18
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual.
