Harmonica Installation Guide
Installation
MAN-HARIG (Ver. 1.902)
20

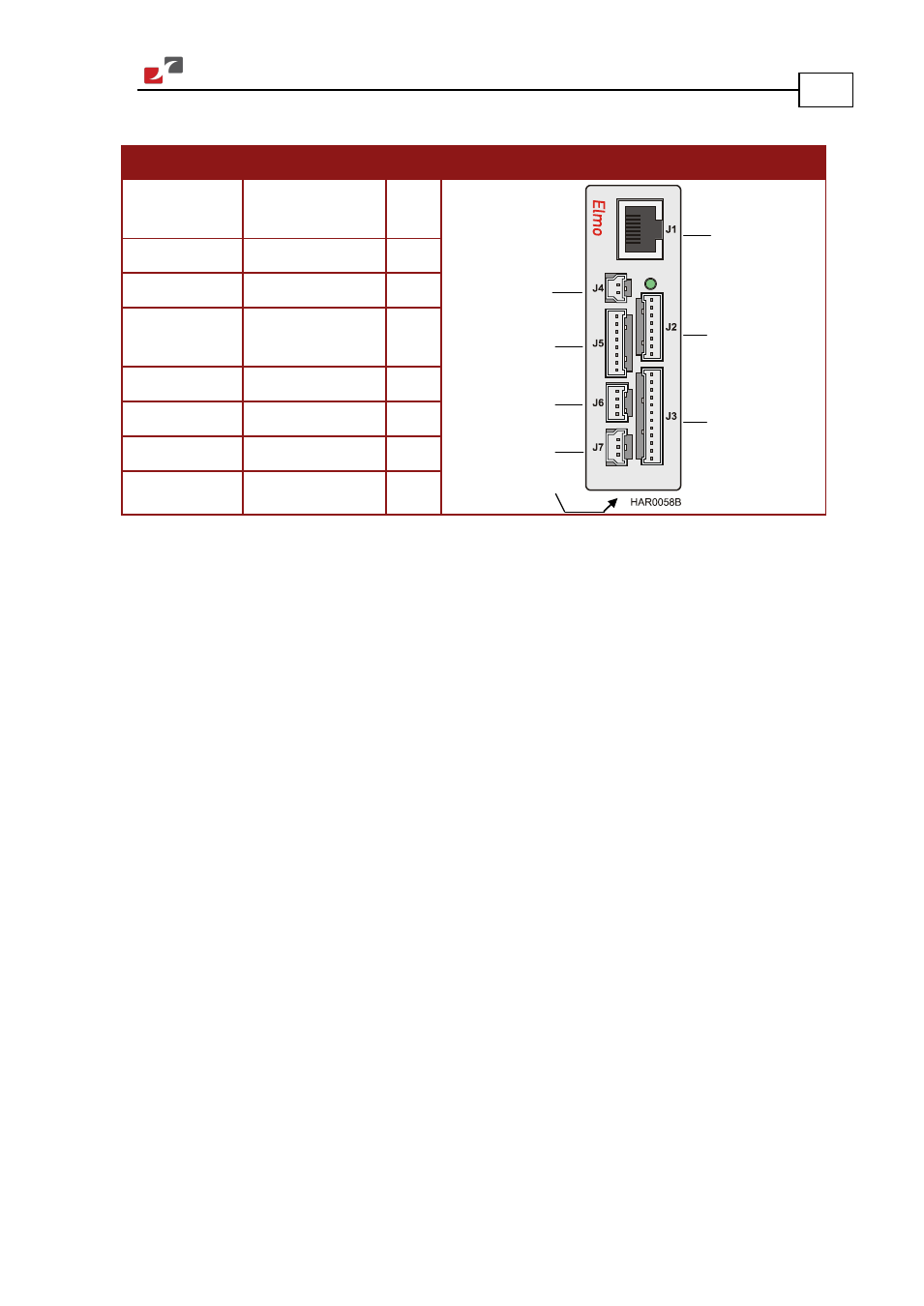

The following connectors are used for wiring the Harmonica.
Type
Function
Port Connector Locations
8-pin RJ-45
Communication
(CAN or RS-232)
J1
8-pin Molex
Feedback B
J2
12-pin Molex
Feedback A
J3
2-pin Molex
Auxiliary power
supply
J4
8-pin Molex
Digital input
J5
4-pin Molex
Digital output
J6
3-pin Molex
Analog input
J7
7-pin Phoenix
Main power
J8
Table 1: Harmonica Connectors
Auxiliary
power supply
Digital input
Digital
output
Communication
Feedback B
Feedback A
Main power
Analog
input
