Harmonica Installation Guide
Installation
MAN-HARIG (Ver. 1.902)
www.elmomc.com
28

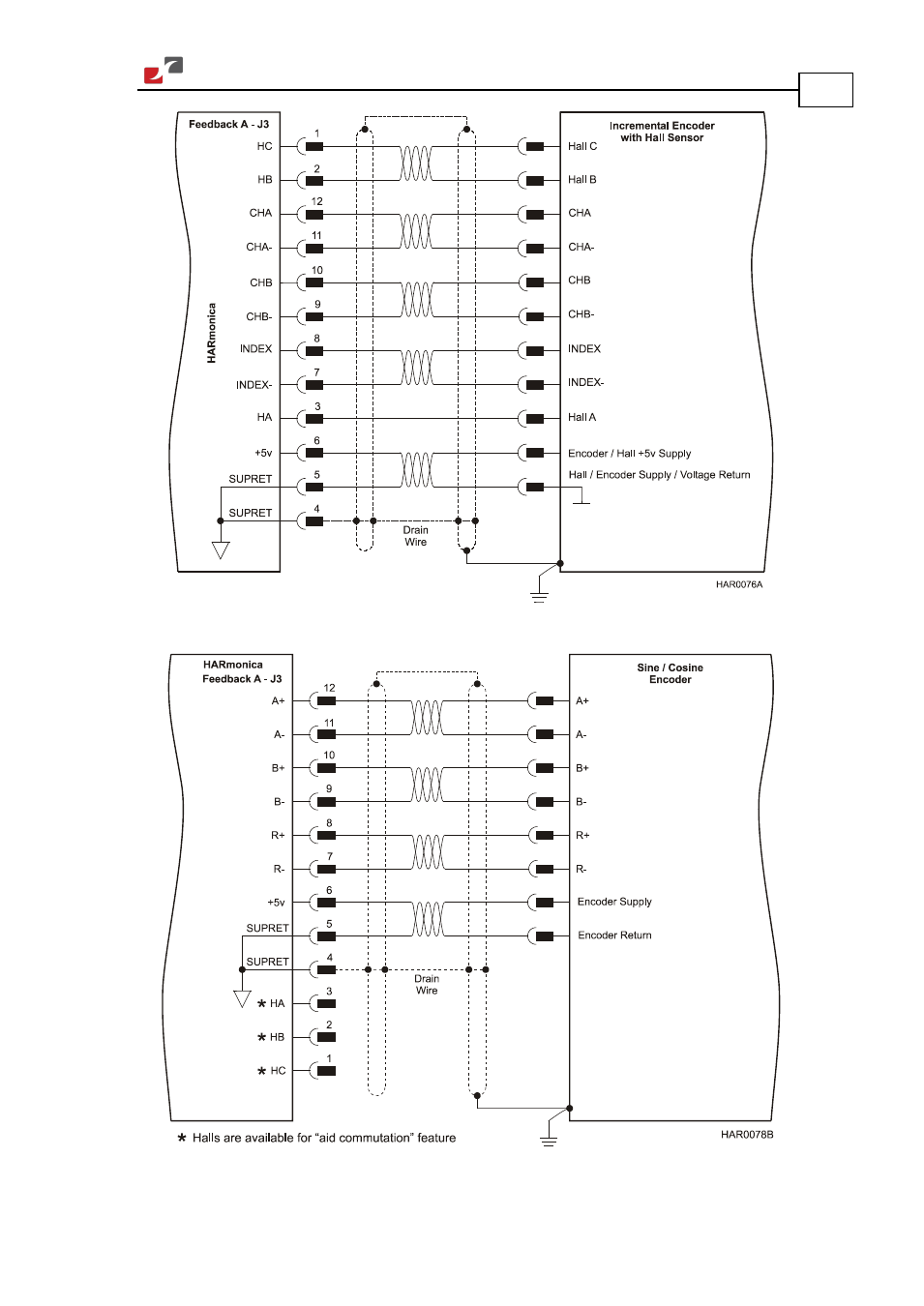

Figure 12: Main Feedback - Incremental Encoder Connection Diagram
Figure 13: Main Feedback – Interpolated Analog (Sine/Cosine) Encoder Connection Diagram
