Schedule Setup
3-8
ArrangeLink User Guide
Note: If ArrangeLink is unable to find a valid VMS database on the server while
attempting the synchronization, an error message will be displayed.
Schedule Setup Sub-Screens
Click on Schedule Setup in the command bar.
The Schedule Setup screen has four tabbed sub-screens: Generic Options,
Scheduling Options, Circuit Specific Options, and Advanced Switching, as
shown below in figure 3-7.

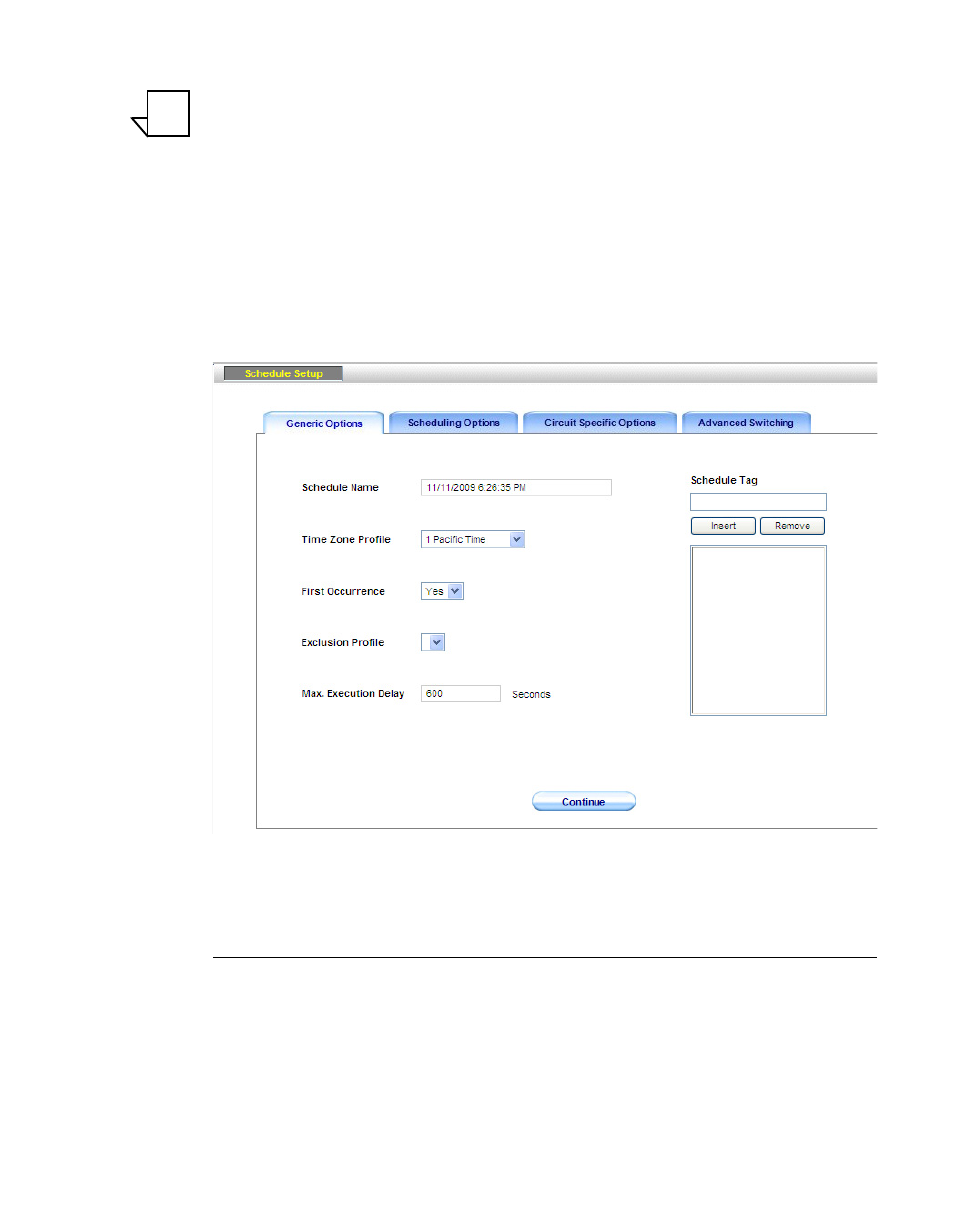

Figure 3-7 Schedule Setup, Generic Options Tab
Generic Options
The first sub-screen, Generic Options, shown in figure 3-7, is used for giving a
Name to the scheduled event, selecting the profile for a Time Zone reference,
setting an Execution Delay interval, and creating optional Schedule Tags to be
associated with this event.
Configure the parameters for this sub-screen as described below.
NOTE
