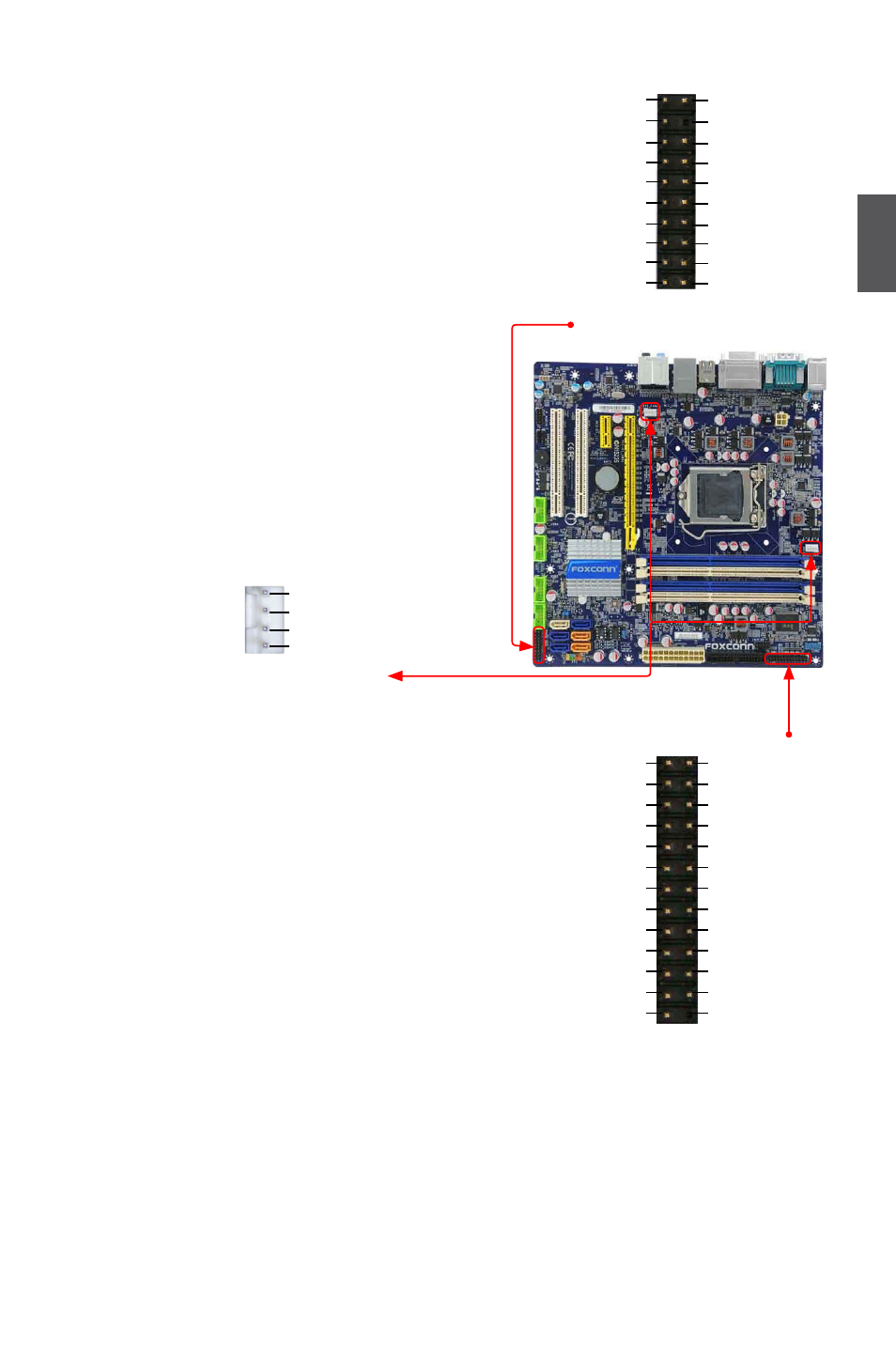

TPM Connector : TPM
The TPM (Trusted Platform Module) provides the a�ility
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional
device and install it.
Fan Connectors : CPU_FAN, SYS_FAN1
There are two main fan headers on this mother�oard.
The fan speed can �e controlled and monitored in
“Health” section of the BIOS Setup. These fans can �e
automatically turned off after the system enter S3, S4
and S5 sleeping states.
lPT Connector : lPT
The connector supports parallel port which can �e
connected to a printer or a scanner. System usually
assign IR�� as it’s default interrupt request and the
parallel port has three operation mode: [SPP], [EPP],
[ECP].
CPU_FAN/SYS_FAN1
GND
POWER
SENSE
CONTROL
1
LCLK
LFRAMEn
LRESETn
LAD3
VDD
LAD0
NC_2
NC_1
GND
LPCPDn
GND
EMPTY
LAD2
NC_3
LAD1
GND
NC_4
SERIR�
CLKRUNin
NC_5
1 2
19 20
TPM
LPT
Stro�e
Data it [0]
Data it [1]
Data it [2]
Data it [3]
Data it [4]
Data it [�]
Data it [5]
Data it [�]
ACK
Busy
Paper End
Select
Auto Feed
Error
SLCT IN
INIT
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Empty
1 2
25 26
