Installation
Converting the Pressure Sensing Tube
1. Remove six screws from the firebox ceiling baffle to access
pressure sensing tube from the inside of the firebox, as shown in
figure 6b.
2. Remove Top Vent pressure sensing tube by loosening the
compression nut with a ½" wrench.
3. Position the supplied Rear Vent pressure sensing tube as
4. Re-install the firebox ceiling baffle.
shown in Figure 6c, position the tube in the center of the 5
inch pipe. Hand tighten the compression nut and tighten half
a turn with a wrench. DO NOT OVERTIGHTEN.
Top of Firebox
Top of Firebox
Pressure Tube
Firebox ceiling
with baffle
removed
The Top Vent pressure sensing tube must be removed and
replaced with supplied Rear Vent pressure sensing tube.

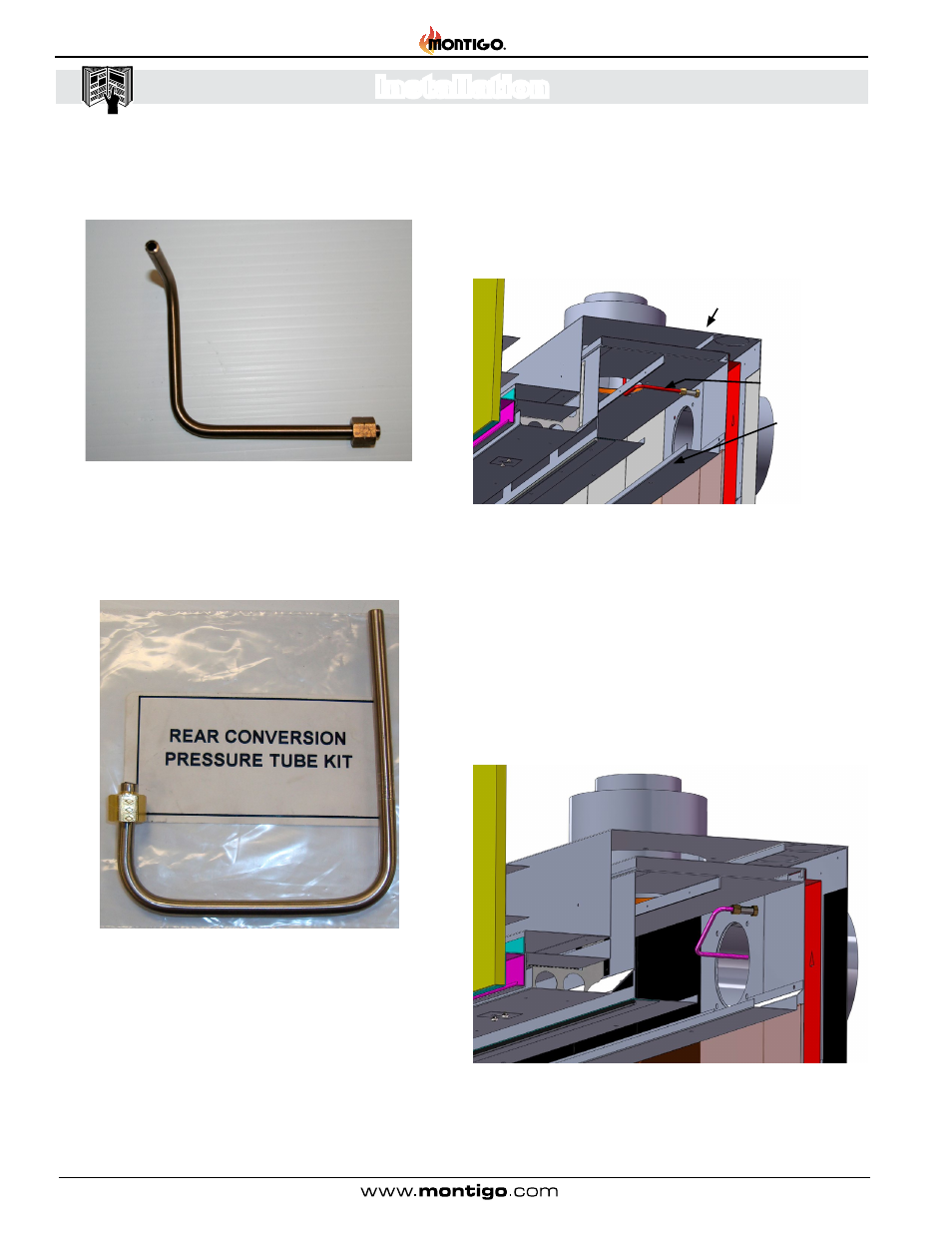

Figure 6. Factory installed Top Vent Pressure Sensing Tube
Figure 6a. Supplied Rear Vent Pressure Sensing Tube
Figure 6b. Removal of Top Vent air baffle and pressure sensing tube.
(cutaway view)
Figure 6c. Installation of Rear Vent air baffle and pressure sensing
tube. (cutaway view)
