RP620 Power Vent Indoor Gas Fireplace
Page 13
XG0777 - 122014.1
Installation
Framing for Top Vent installations:
66"
1676
Min
26"
660
Min
Platform
Chase
Ceiling
96"
2438
Min
54"
1372
Max
Chase Constuction TV
Typical Framing

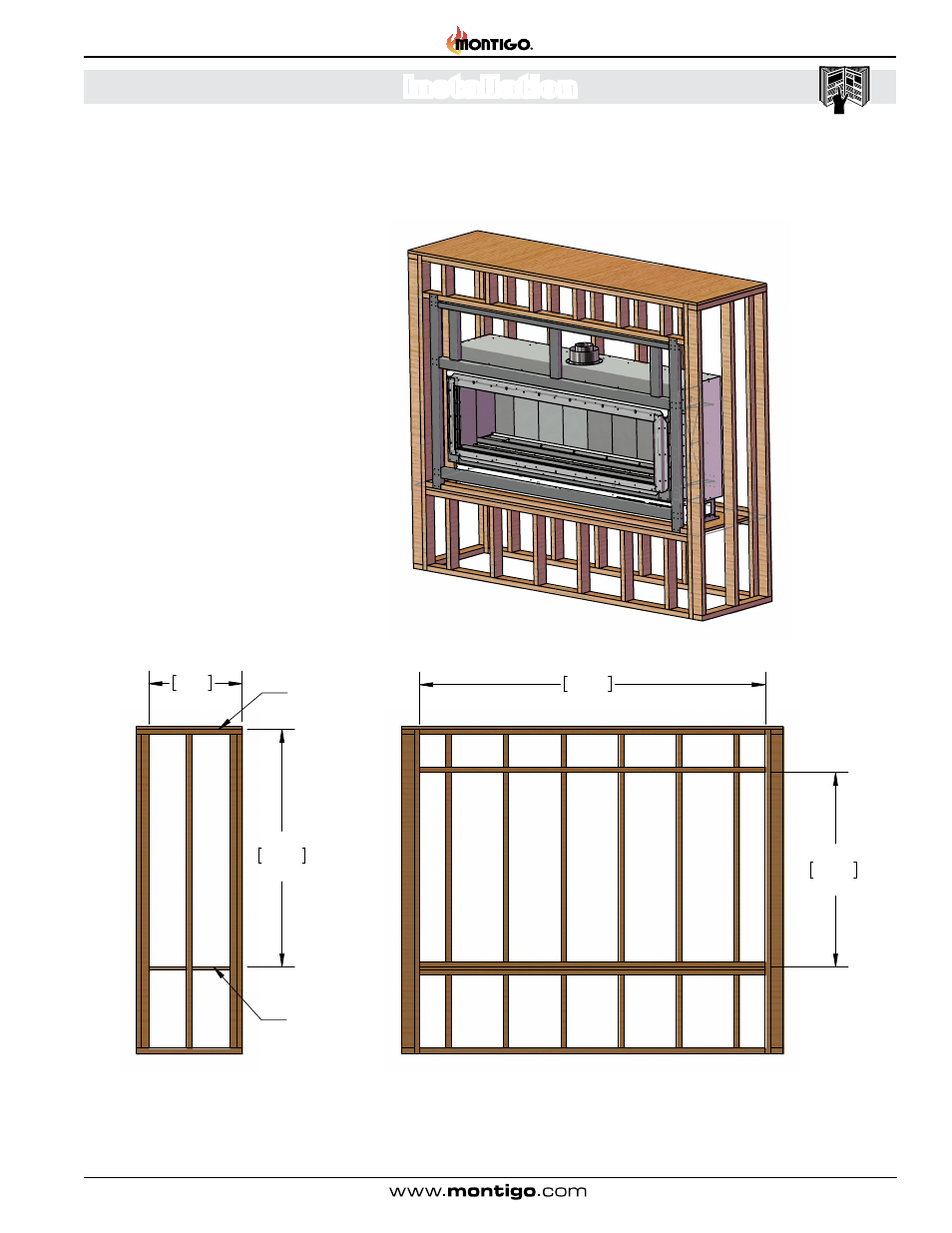

Figure 7. Framing the unit - Top Vent
