RP620 Power Vent Indoor Gas Fireplace
Page 38
XG0777 - 122014.1
Installation

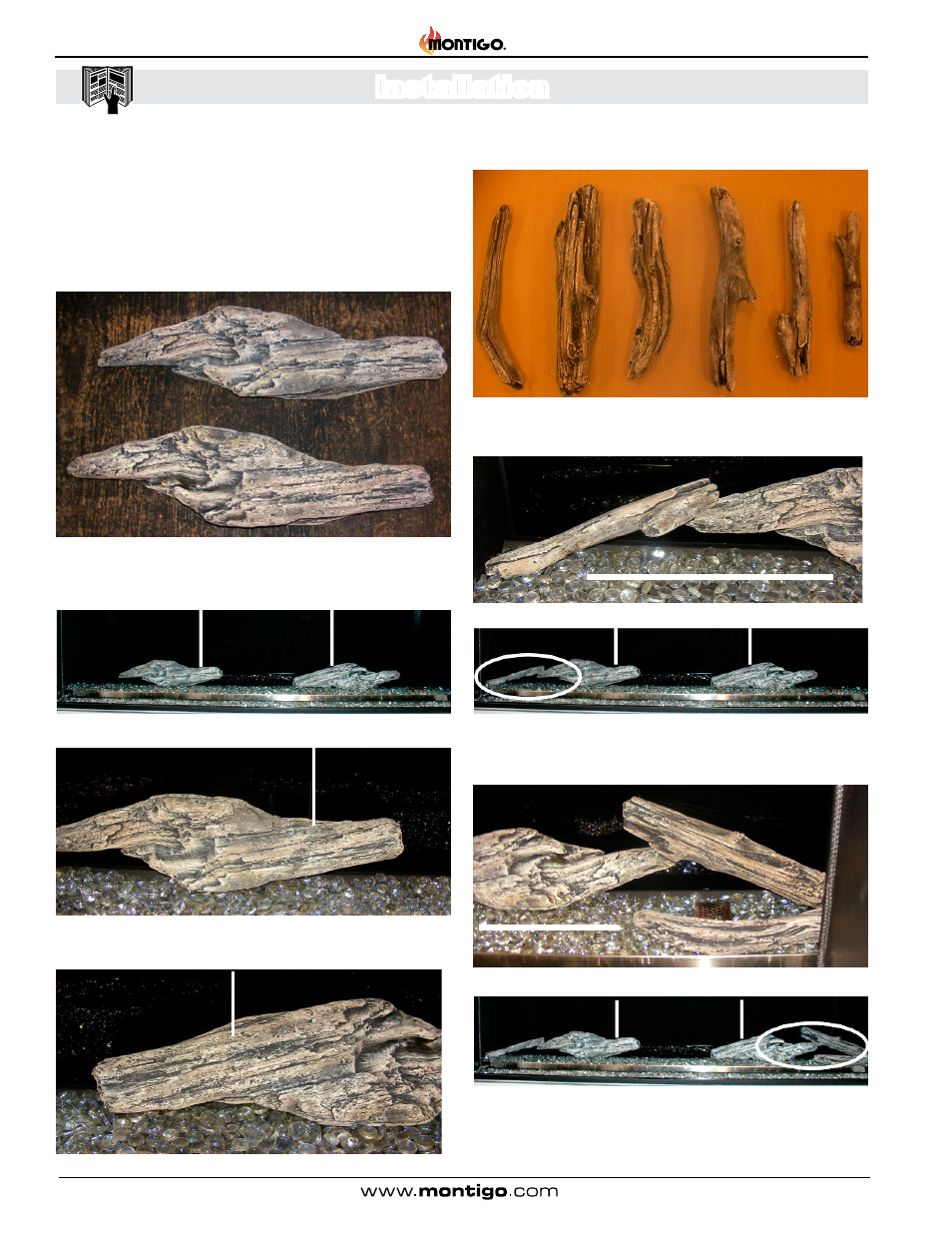

The RP620* has the option of installing a drift wood log set. Once
the firestones have been installed, figures , you can begin installing
the log set by following the steps below, figures .
NO LOGS SHOULD IMPEDE THE FLAME, sooting may occur.
RP620L-I
Step 3: From LGS58, place log 3 in front of the ports and pilot. Place
log 2 on the right end of the right log from LGS57. Keep log 2 away
from the ports. See figure 25g.
Log kits used to create sequence shown: 1 LGS57, 1 LGS58, 1 LGS59
LGS57
Step 1: Remove both logs in kit LGS57. Both logs are identical.
Place each log in the location shown in figure 25a. Use the porcelain
panel joints as reference. The logs should be behind the burner ports
and leaning against the porcelain panel.
The log placed on the right should be orientated 180° compared to
the left log.
Step 2: Identify logs in kit LGS58
LGS58
1
2
3
4
5
6
Place Log 5 on the left end of the left log from LGS57. Keep log 5
away from the ports, See figure 25e for placement.
Figure 33d
.
Figure 33e
.
Figure 33f.
3
2
Figure 33g.
Figure 33h.
Step 4: From LGS58 place log 1 behind the ports in the middle of
the burner, see figure 25h. Place log 4 on top of the right end of the
left log from LGS57 and on top of log 1, see figure 25i.
5
Ports
Ports
Figure 33.
Figure 33c.
Figure 33a.
Figure 33b.
