RP620 Power Vent Indoor Gas Fireplace
Page 28
XG0777 - 122014.1
Installation
Note: There is enough clearance in the above clearances drawing to allow for a vanity ring to be added on at a later time.
PVHIN58-300 Inline Power Vent with TMHIN58-40 Detail
For installation instructions on this power vent and termination see instruction guide
for the PVHIN58-300 with TMHIN58-40.

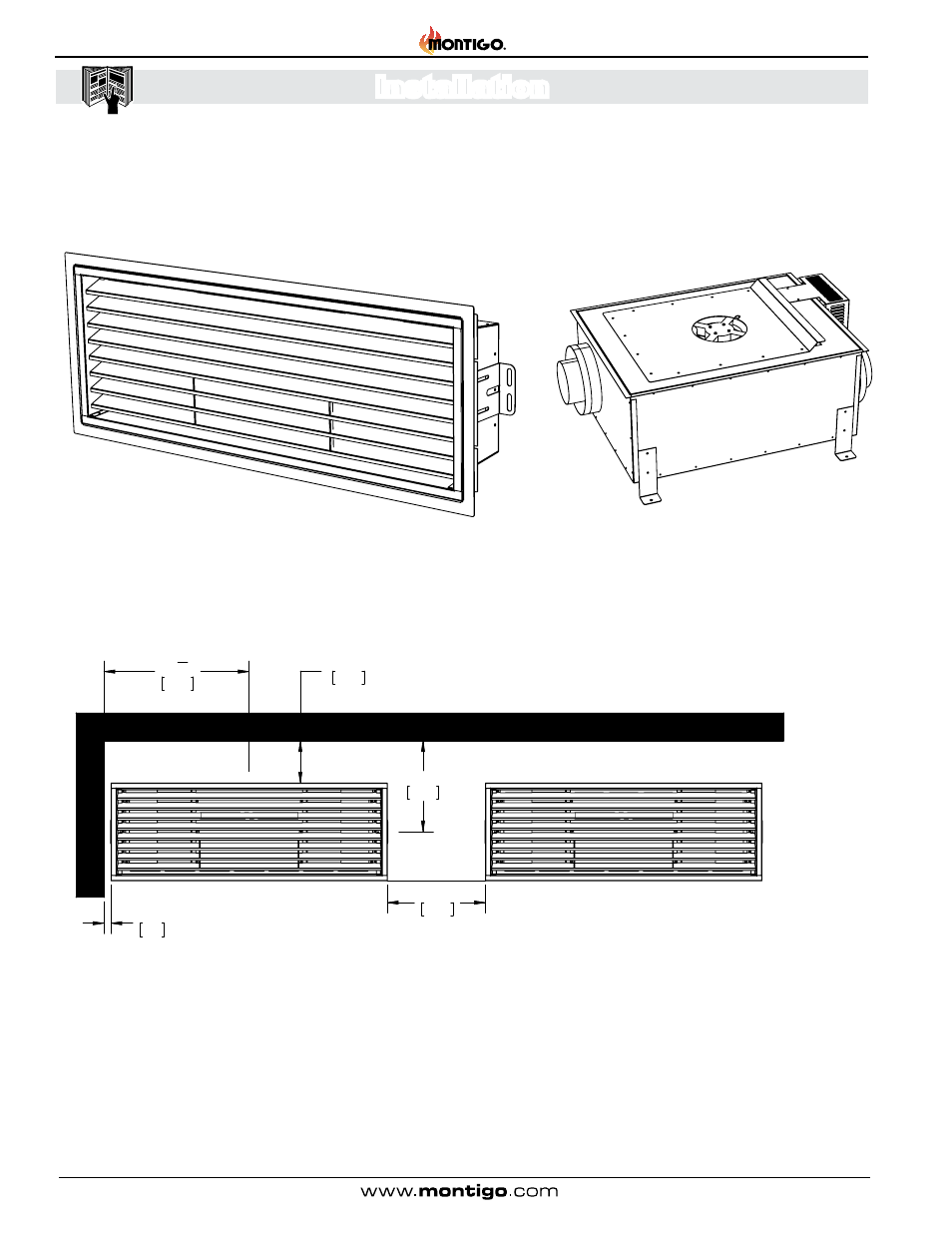

Figure 20. PVHIN58-300 Inline power vent with TMHIN58-40 Termination (with vanity ring)
Figure 20a. TMHIN58-40 Termination Clearances (without vanity ring)
20 34 "
527
13"
330
6"
153
1"
26
14"
356
Eaves / Overhang
Wall
