RP620 Power Vent Indoor Gas Fireplace
Page 23
XG0777 - 122014.1
Installation
For installation instructions on this termination see instruction guide
for the PVHEX58-300.

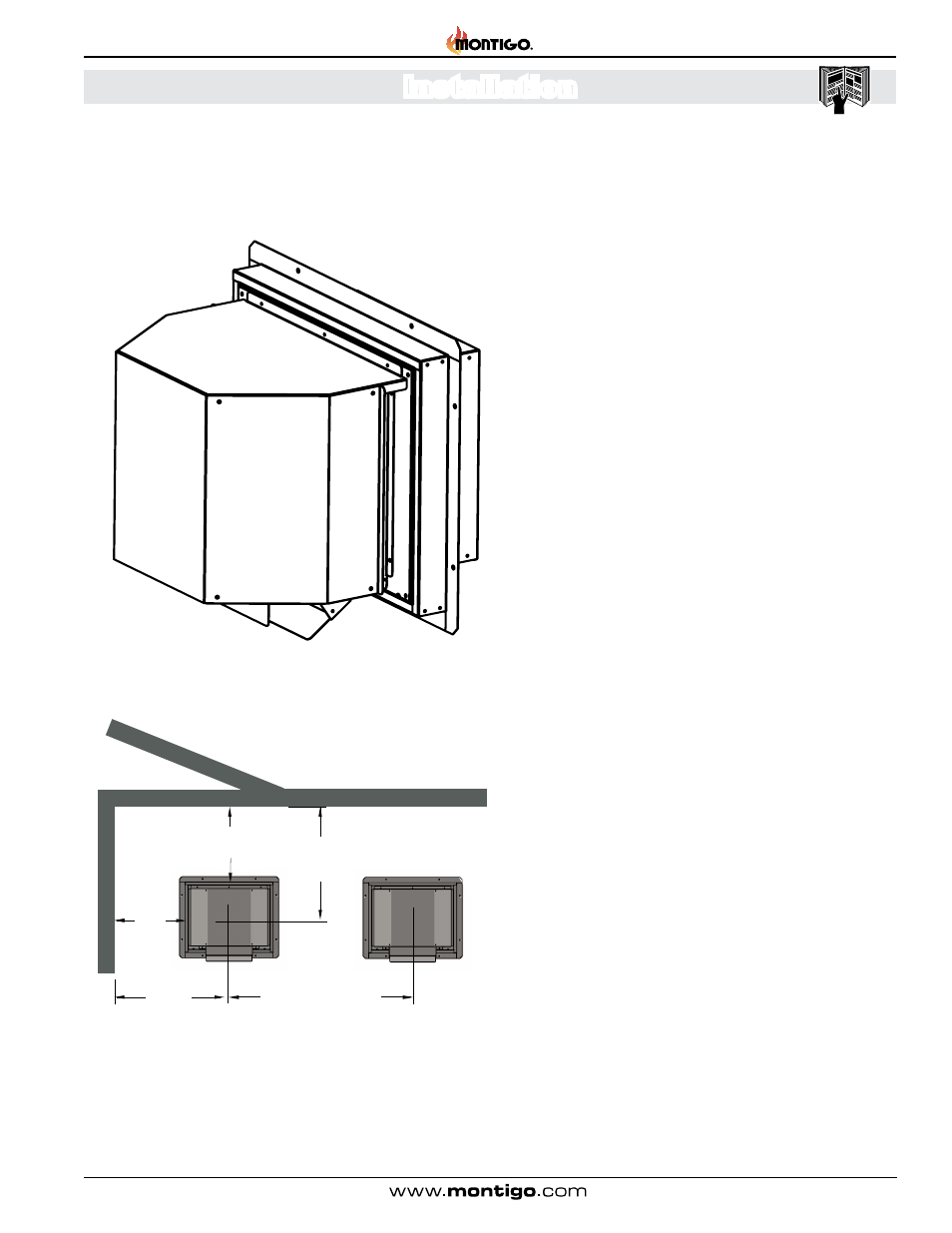

PVHEX58-300 Horizontal Power Vent Detail
Eaves / Overhang
Wall
14”
[355mm]
32” [813mm]
16”
6”
6”
Side View
[152mm]
[152mm]
[406mm]
Figure 17. PVHEX58-300
Figure 17a. PVHEX58-300 Termination Clearances
