RP620 Power Vent Indoor Gas Fireplace
Page 6
XG0777 - 122014.1
Installation
PVVEX58-300
Vertical Power Vent
PVHEX58-300
Horizontal Power Vent
PVHFL58-300
Horizontal Power Vent
Flush / Louvered
Control Panel
Wall Switch
On/Off
(not supplied)
Fireplace Light
Switch or Dimmer
(not supplied)
115 VAC 60 Hz
supply from
distribution panel
RP620
Fireplace
Power Vent Control Cable
(Not supplied. Order required
length from your Montigo Dealer)
Appropriate Montigo Venting
Components 5" x 8"
Steel Stud Kit
(supplied)
Non-Combustible
Wall Board Facing
(supplied)
Light Wiring
(not supplied)
Control Box Cable
30' supplied standard
20' low voltage wire supplied
TMHIN58-40
Horizontal Flush
Termination
PVHIN58-300
Inline Power Vent

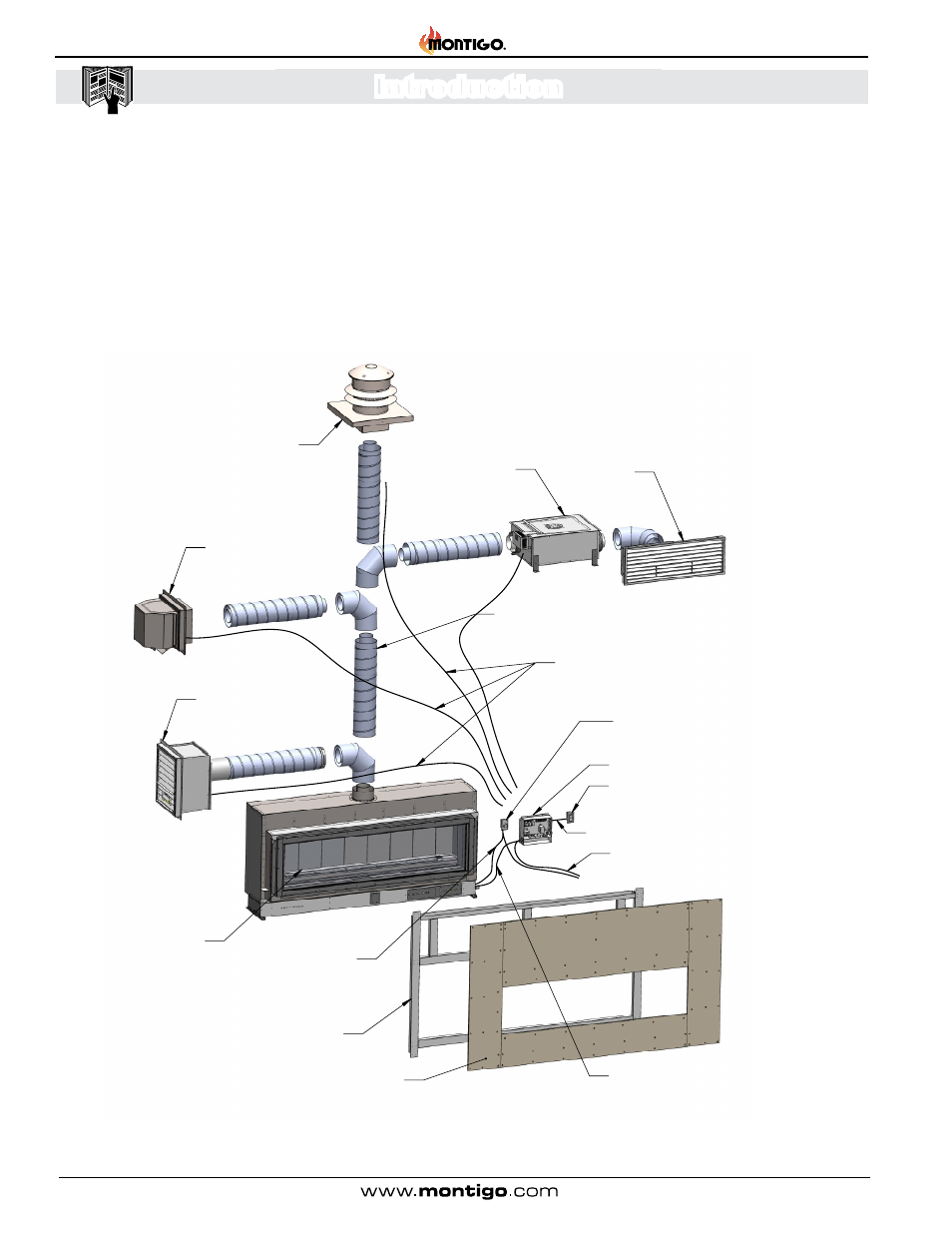

Figure 2.
RP620* major components
Introduction
The complete system will require a firebox, a power vent
termination, an electrical control panel, and a vent system.
There are 3 different power vent terminations available
depending on your installation requirements. Each power vent
requires a control cable to be installed between the power vent
and the control panel. Review the installation sequence on
page 7 for general information on preparing for a successful
installation of your fireplace.
The RP-Series fireplace is not
intended to be used as a primary heat source and should
Introduction to the RP-Series Fireplace:
