Maintenance
Servicing the Burner
Follow the steps below to remove the burner to service the unit.
Remove the safety screen and outer and inner glass.

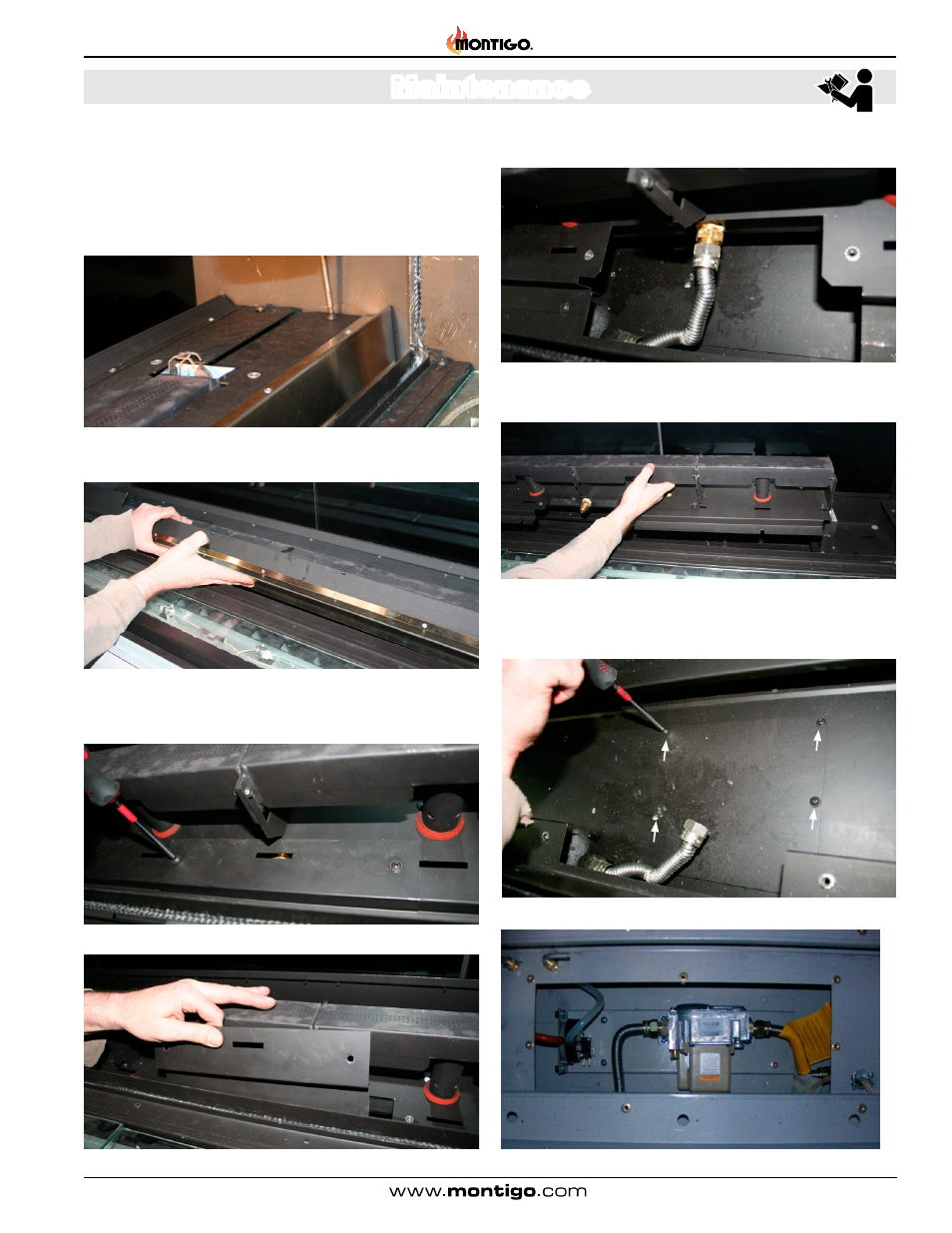

Figure 36. Remove 4 rail screws found at the end of the rails.
Figure 36c. . Remove 4 screws and then remove gas connection cover.
Figure 36e. After removing the appropriate fasteners, remove the burner
assembly.
Figure 36d. Disconnect the flexible gas connection line.
Figure 36f. Remove the valve cover to gain access to the valves.
Step 1:
Step 2: Remove firestones
Step 3:
Step 4: Lift one end of the rail up above the firebox ceiling baffle.
Pull the other end out the front of the fireplace.
Step 5:
Step 6:
Step 7:
Figure 36g. Gas Valve and Pressure Sensor
Figure 36a.
Figure 36b.
