Montigo RP620 - Manual (Page 25)

RP620 Power Vent Indoor Gas Fireplace
Page 25
XG0777 - 122014.1
Installation

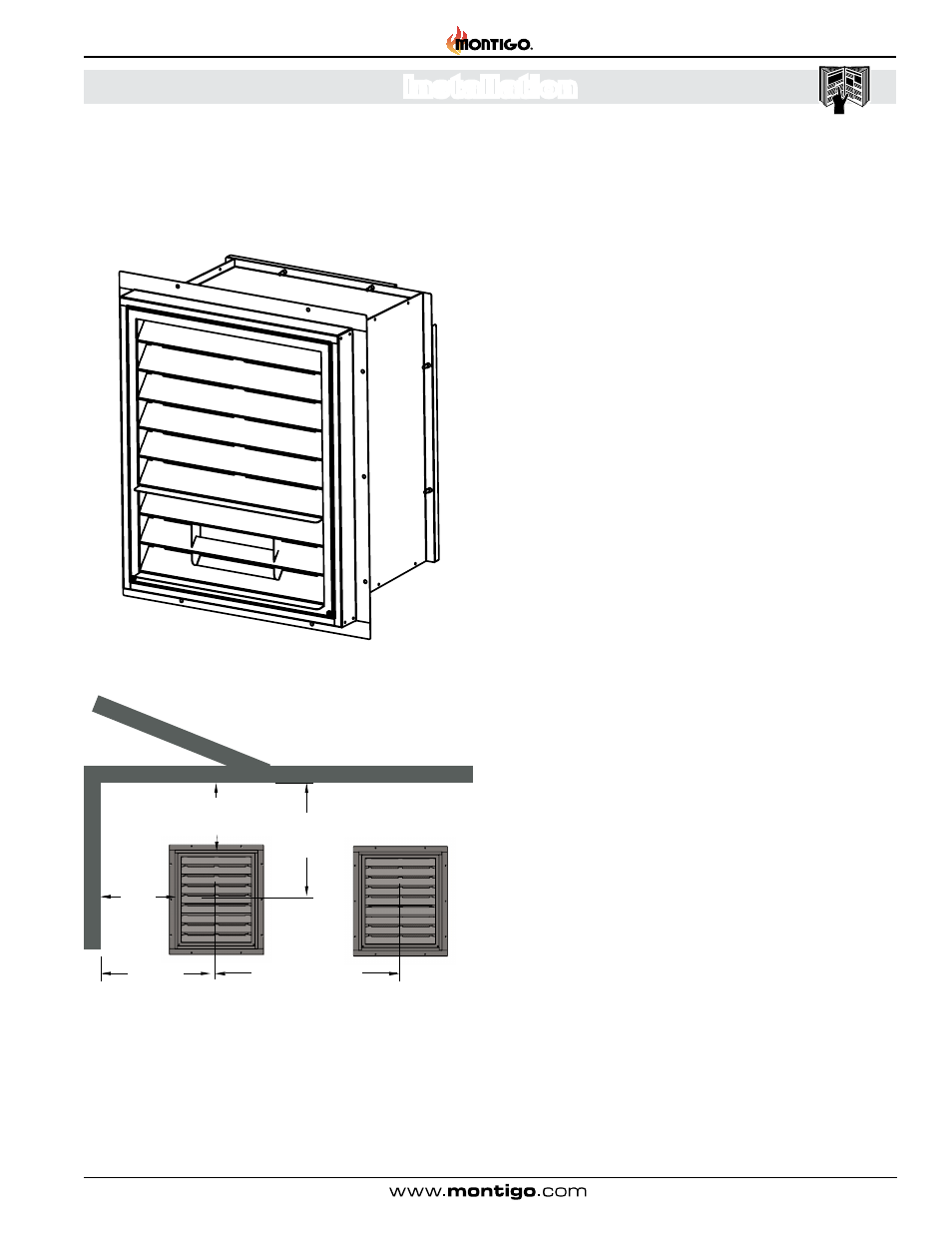

PVHFL58-300 Horizontal Power Vent Detail
Front View
Eaves / Overhang
Wall
24” [610mm]
24½”
15”
15”
24” [610mm]
[152mm]
[152mm]
[622mm]
For installation instructions on this termination see instruction guide
for the PVHFL58-300.
Figure 18. PVHFL58-300
Figure 18a. PVHFL58-300 Termination Clearances
