C CD SCANNING

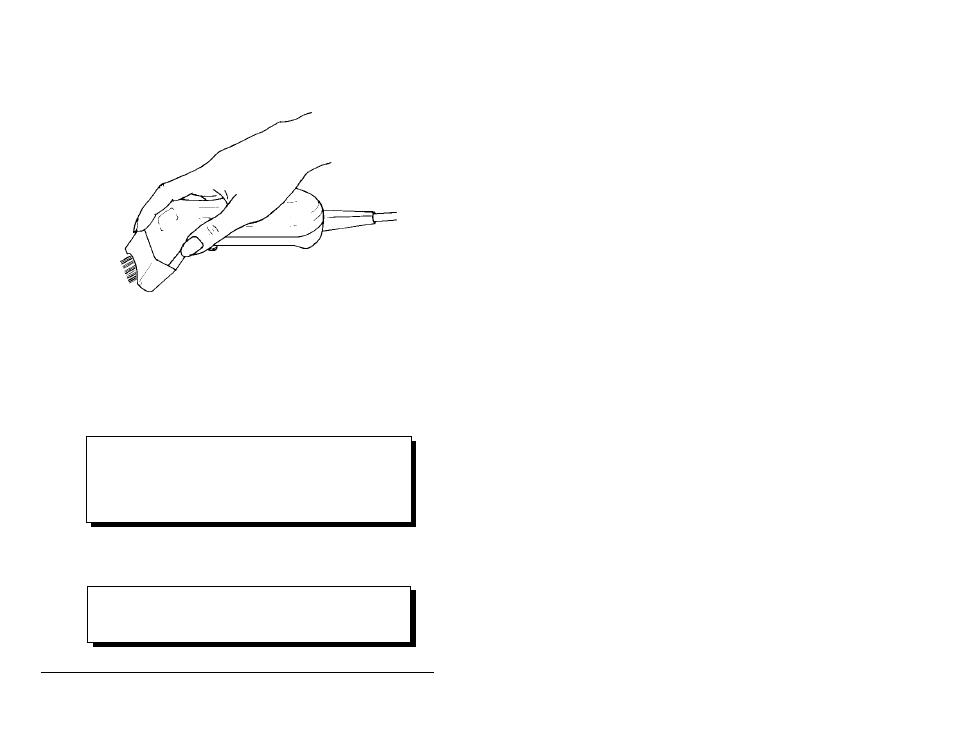

Step 1: Place the CCD scanner on the label or close to it (within one inch).
Make sure the bar code label fits completely within the frame of the
CCD opening.
Step 2: PRESS the button on the CCD scanner. The front panel
"POWER" light on the reader will change to RED.
Step 3: After a successful read the following will occur:
- The reader will BEEP.
- The reader will turn off the red CCD light.
- The bar code data is transmitted to the computer.
NOTE: If a read does not occur immediately, try moving
the CCD closer to the bar code label and
adjusting the pointing angle. If the reader has not
read the label within the time period specified in
the LASER/CCD TIMEOUT option (the default is
1 second), it will turn off the light beam.
Step 4: When the front panel "POWER" light changes to GREEN, the
reader is ready to scan another label.
NOTE: For triggerless operation, refer to "LASER/CCD
CONTINUOUS RUN and LASER/CCD
TRIGGER SHUTOFF" options.
