Chapter 10 Using TimeDelay
268
Profile Family
Configuring a Controller
This command sets the playback and record JPEG channels, audio channels and
the VITC timecodes for the selected controller.
1. Click anywhere within the specific Panel dialog box to select the panel.
2. Choose
Controller | Configure
to access the Profile Options dialog box for the
selected panel. Figure 141 illustrates the standard Profile Options dialog box.

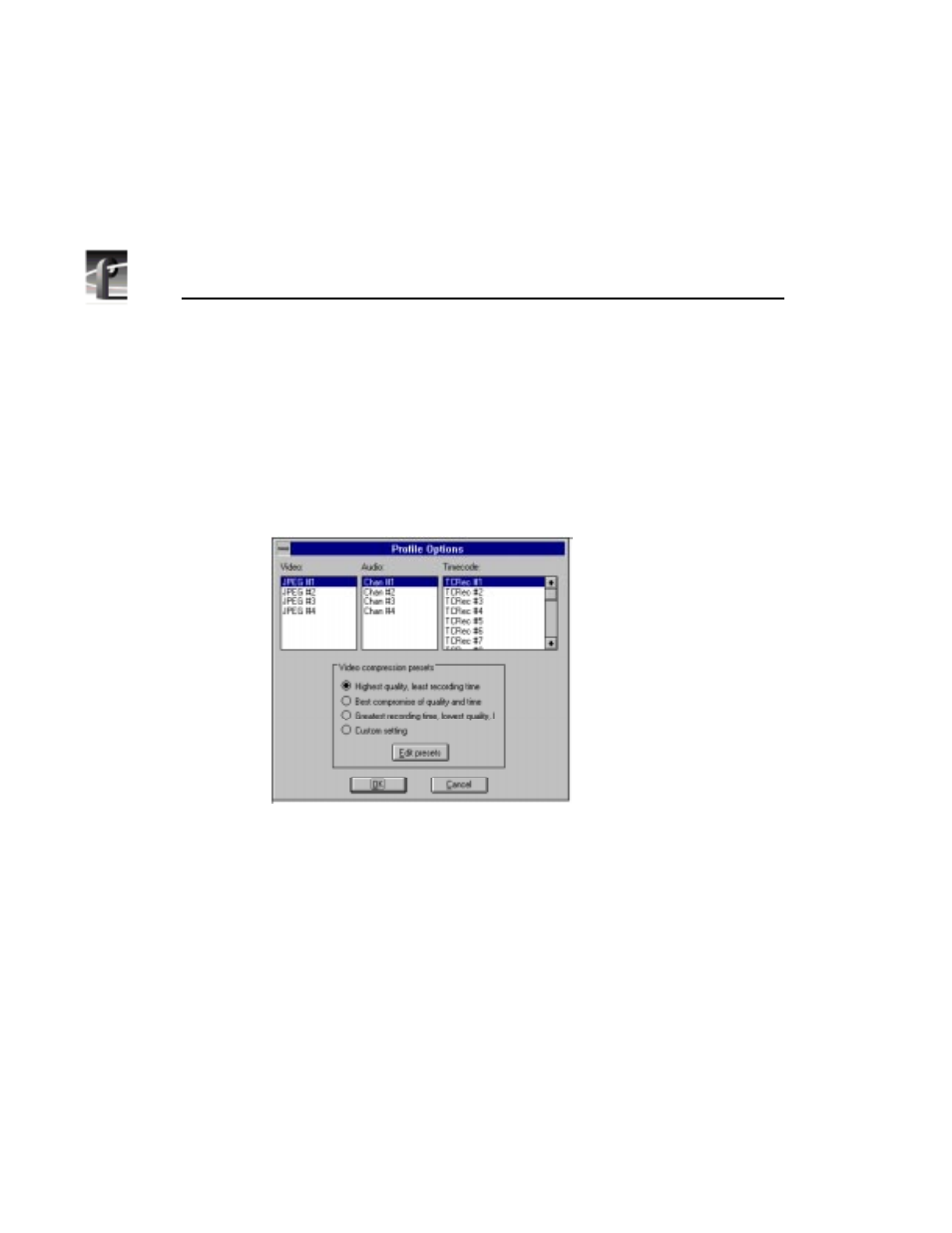

Figure 141. Profile Options (controller configuration) dialog box
3. Click on the appropriate options for your selected controller. Use the scroll
bars to see more options if necessary. Typically, you assign four audio and
four timecode channels to each JPEG channel.
4. Select a video compression preset. The options range from highest quality
(but use the most recording time) to lowest quality (using the minimum of
recording time). Custom setting (using the current presets) is also available.
5. Edit the preset values if necessary. Refer to Table 10 for the factory set Preset
values. If you need to change the values, click
Edit resets
to access the Edit
Compression Presets dialog box illustrated in Figure 142. Click
OK
.
