Magnum Energy ME-RC Remote - Manual (Page 27)

©2013 Magnum Energy, Inc. 20
3.0 Setup
Parallel connection – batteries connected in parallel (positive to positive,
negative to negative) increase the AHr capacity of the battery bank, but
the voltage remains the same.
Example: A 12-volt battery bank with three 12-volt batteries that are rated
at 125 AHrs each. Each of the positive terminals are connected together and
each of the negative terminals are connected together (i.e., connected in
parallel). The AHrs of each battery connected in parallel are added together
(125 AH + 125 AH + 125 AH = 375 AH), but the voltage of the battery bank
stays the same (12 VDC).
Series connection – batteries connected in series (pos. to neg.) increase
the voltage of the battery bank, but the AHr rate remains the same.
Example: A 12-volt battery bank with two 6-volt batteries that are rated
at 220 AHrs. The positive terminal of the fi rst battery is connected to the
negative terminal of the second battery (i.e., connected in series). Since the
two 6-volt batteries are connected in series, the voltage of the batteries are
added together to produce 12-volts (6 VDC + 6 VDC = 12 VDC), but the
amp-hour capacity of the battery bank does not change (220 AH).
In battery banks where you have batteries connected in series and in parallel,
the rules are the same. The batteries connected in series are referred to as a
‘series string’ and the amp-hour capacity doesn’t change. Each series string
is connected together in parallel to increase the amp-hour capacity. Add the
amp-hour capacity of each series string connected in parallel to determine
the total amp-hour capacity of the battery bank.
• SETUP: 04 Battery Type – This setting selects the battery type, which
determines the battery charge profi le and ensures the batteries are
receiving the proper charge voltage. The fi xed voltage settings are:
fi xed when using the GEL, Flooded, AGM1, or AGM2 selections, but can
be adjusted if using the CC/CV or Custom selections.
Default setting: Battery Type = Flooded
Range: AGM1, AGM2, Flooded, GEL, CC/CV, Custom
◊ Battery Type (GEL, Flooded, AGM1, or AGM2) – When the bat-
tery type selection is GEL (for Gel batteries), Flooded (for liquid lead acid
batteries), AGM1 (for Lifeline AGM batteries), or AGM2 (for East Penn/
Deka/Discover/Trojan AGM batteries), the charge voltage level for the
Absorption, Float, and EQ Charge modes are fi xed and shown in Table
3-1—depending on the battery type selected and the nominal inverter
battery voltage .
Press to save
SETUP
Press Status...
04 Battery Type
Rotate to
Press to select
Rotate to
desired
selection:
Options: GEL, Flooded, AGM 1, AGM 2, CC/CV, Custom

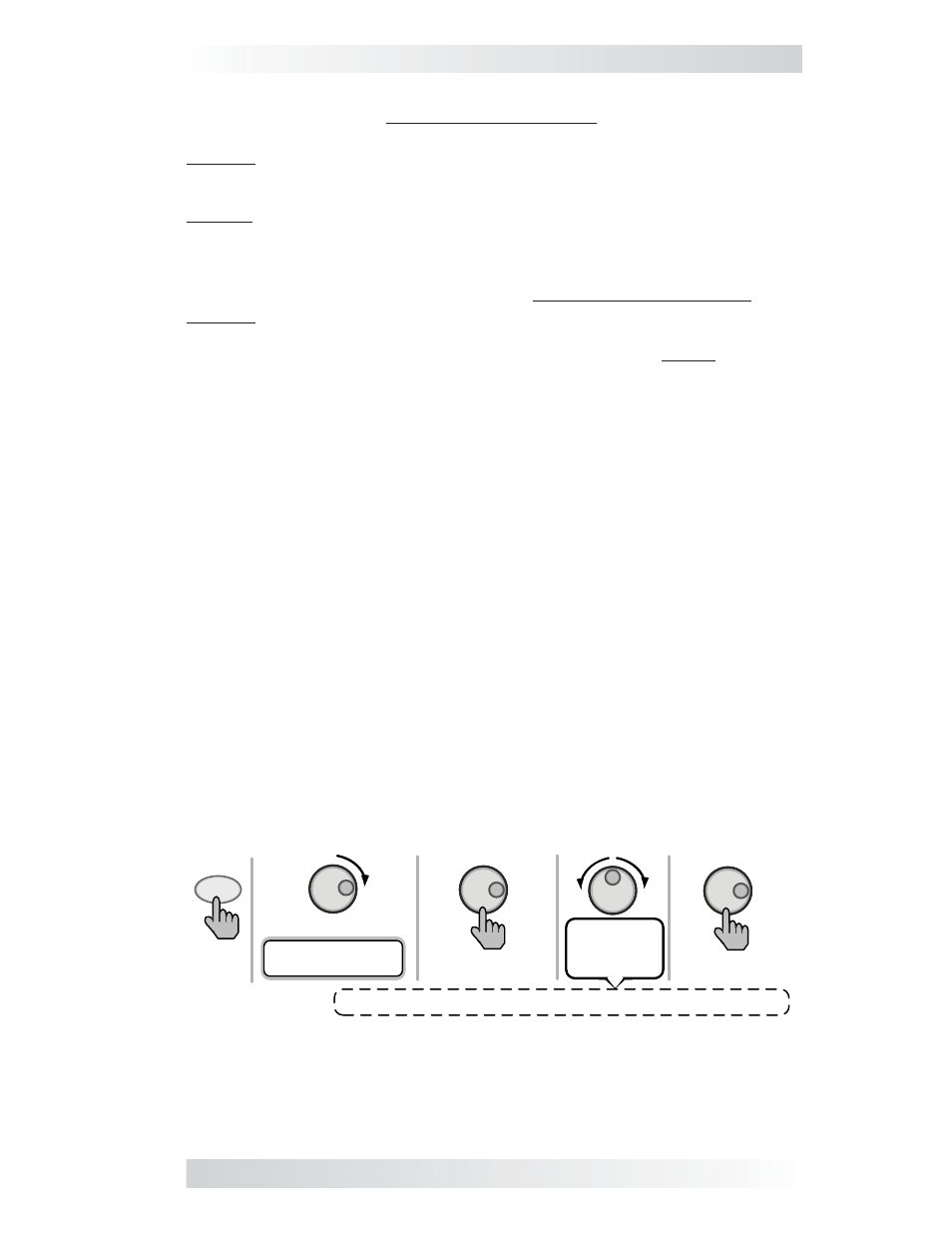

Figure 3-9, SETUP: 04 Battery Type Selections
