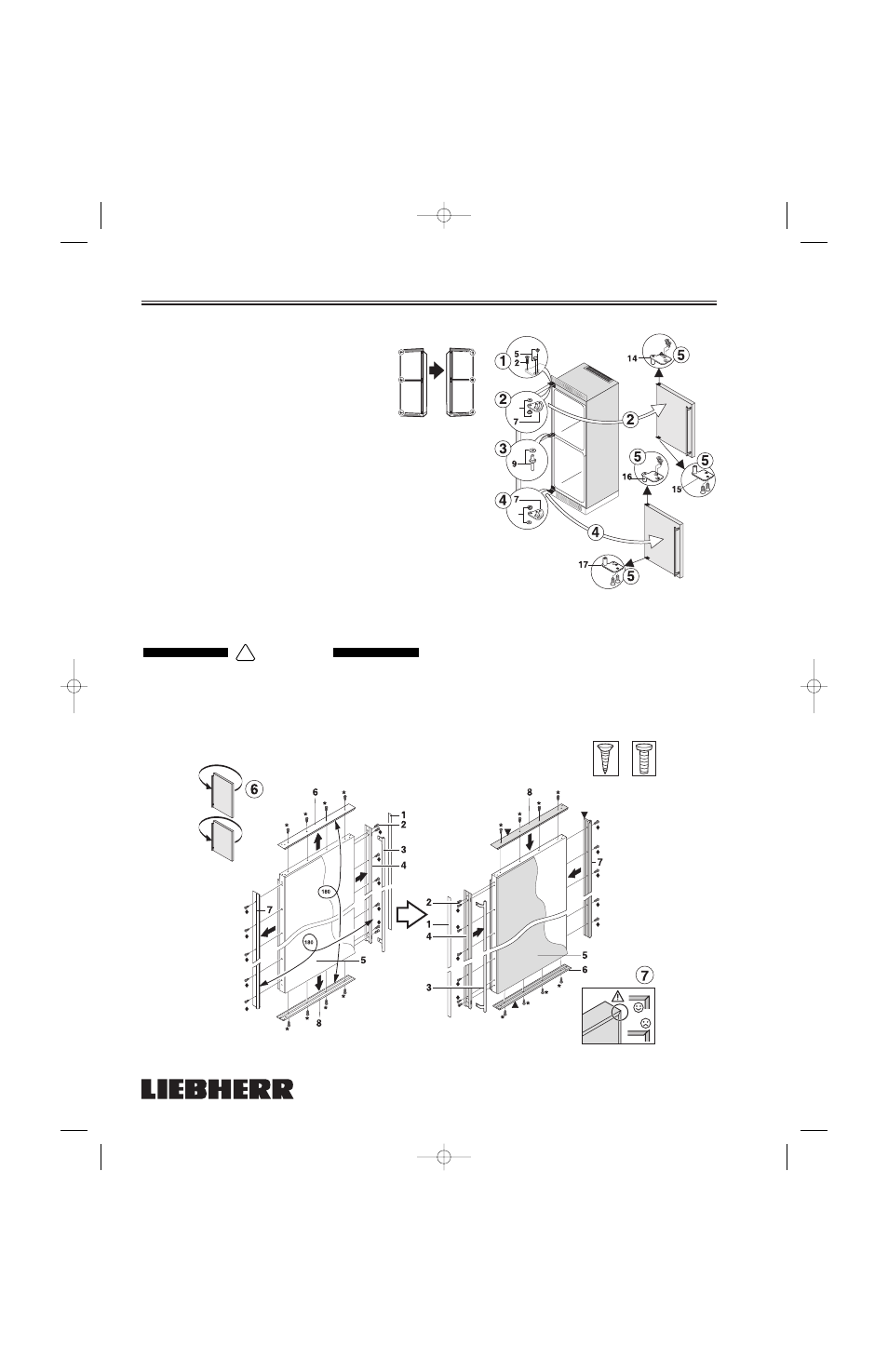

Figure 10
R
EVERSING
D
OOR
H
INGES
The door hinges can be changed from one
side to the other if required.
1. Figure 10: Top: Unscrew the hinge pin (2)
and remove the screw (5) with the
eccentric.
2. Swivel out the door at the top, ensuring
that you do not lose the stop (7) and
bushing (8); lift off the door and place it on
the floor.
3. Center: Pull out the hinge pin (9) with its
washer.
4. Swivel out the lower door, lift it out and
place it on the floor. Take care not to lose
the stop (7) and washers (8).
5. Unscrew all the door fittings (14, 15, 16,
17).
6. Figure 11: Unscrew all the door change
frames and exchange them with one
another (6 with 8, 4 with 7 and handle -
remove cover 1). Secure them in position
using the same screws.
7. Ensure that the door change frames are correctly
positioned and mitered.
Make sure the corners of the door change
frames are positioned correctly. Sharp
edges will be exposed if they are not
mitered or positioned correctly.
! WARNING
LBR027
8
8
LBRP28
Figure 11
