26
BFI/BF1051 / BGEN/es 2956
A delight in freshness
Figure 25
4
LBR039
S
IDE
-B
Y
-S
IDE
I
NSTALLATION

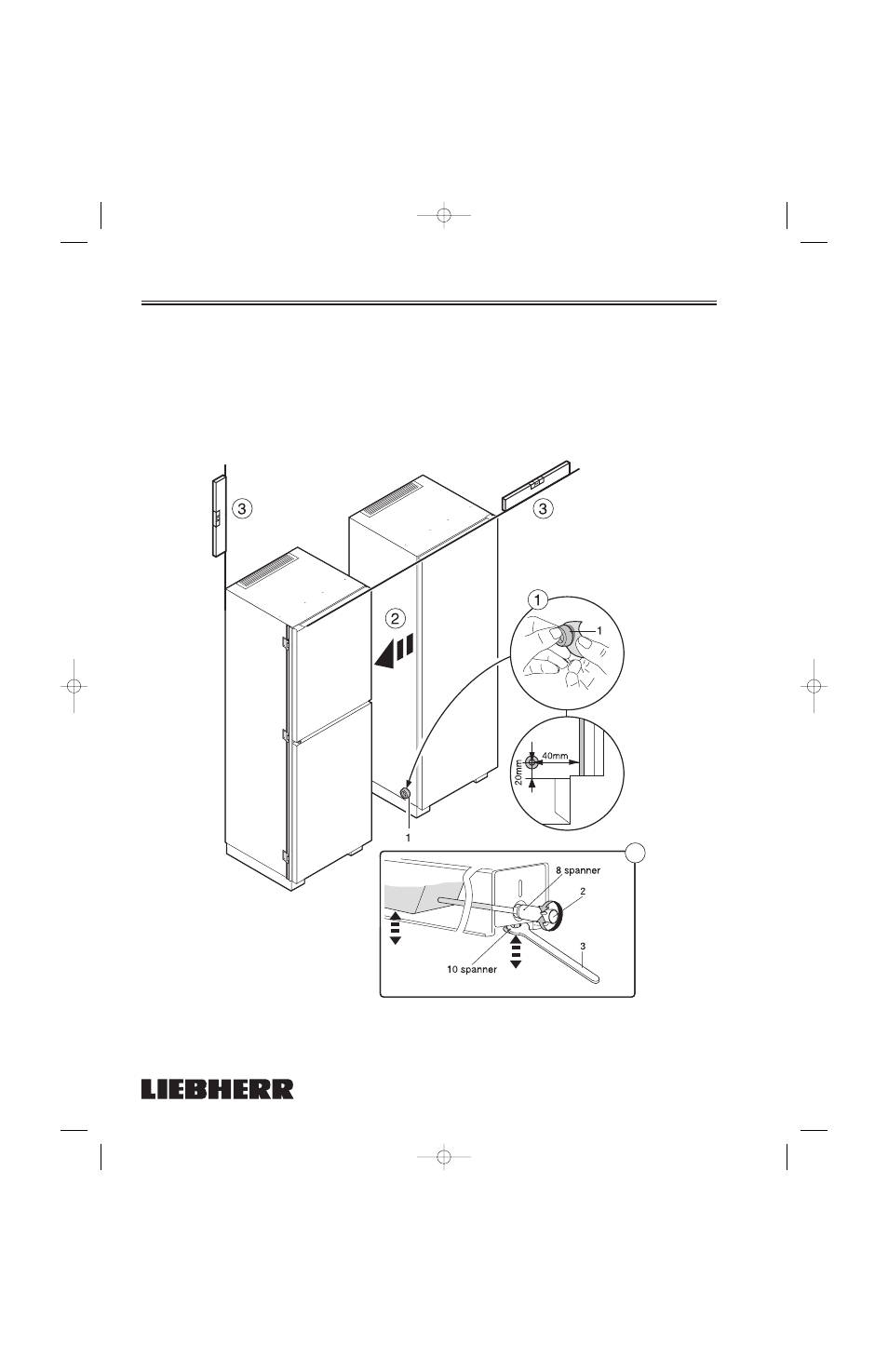

Figure 25: To install the BFI 1051 appliances side-
by-side, proceed as follows:
- Always place the BF/BFI 1051 with the hinges
on the left-hand side (looking from the front).
Installation with SBS Ventilation Grille Set:
1. Affix the spacer (1) on the side wall of the
appliance – remove the protective film.
2. Push the appliances together,
- align
them
parallel to each other.
3. Use a level on the top to align them
to the
same height:
4. Use the adjustable roller base (2, 3) and
adjusting bolt (2) at the rear.
BGEN_7082248_0929_Install_3Lang.qxd 10/21/2004 7:56 AM Page 26
