31 BFI/BF1051 / BGEN/es 2956
A delight in freshness
Figure 32
20
21
23
24
24
24
24
22
3
10 spanner
8 spanner
17
18
16
2
LBR043
S
IDE
-B
Y
-S
IDE
I
NSTALLATION

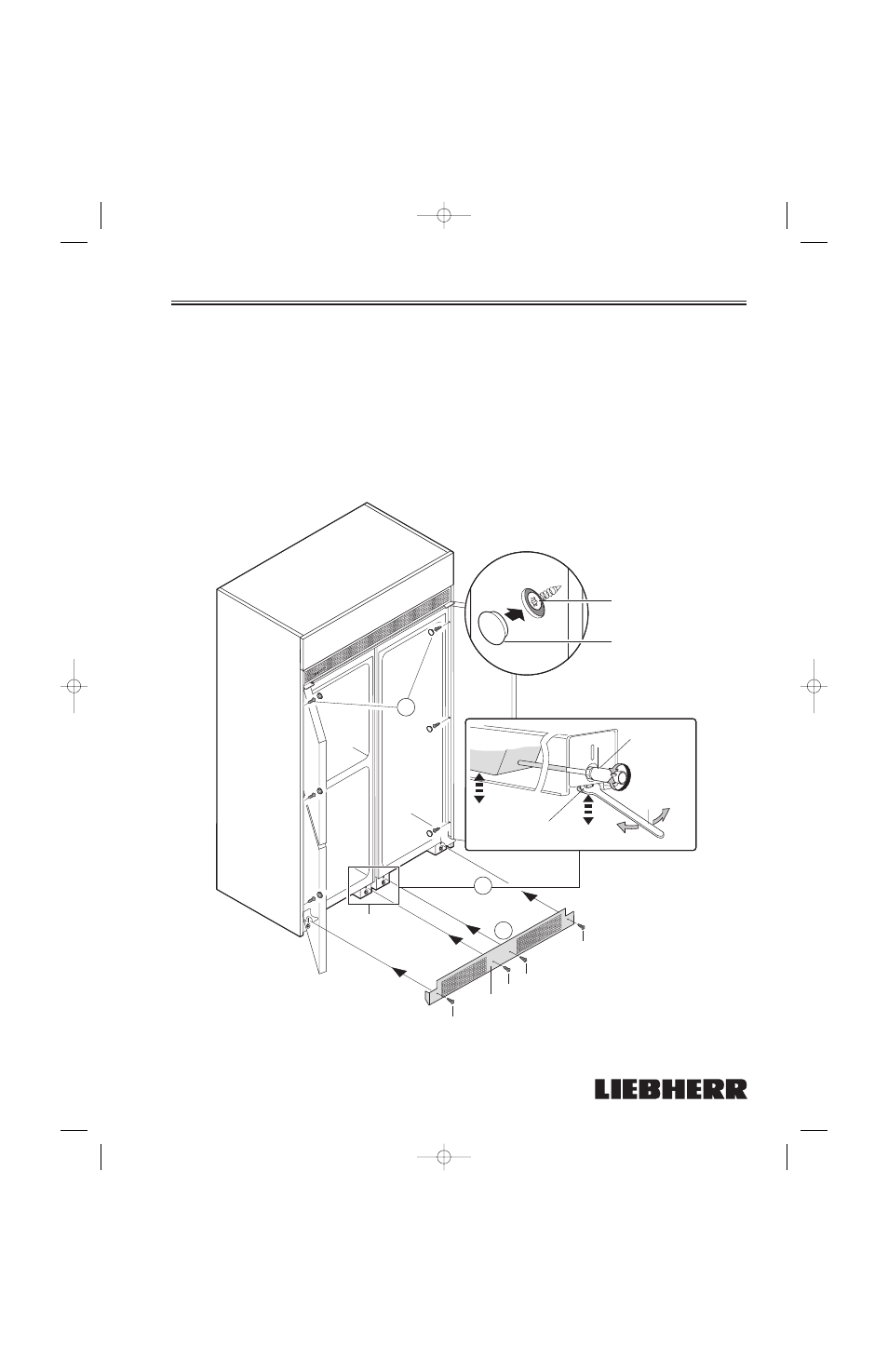

16. Figure 32: Attach the aligned combination to
the surrounding kitchen cabinet. Secure it
through the side frames using the screws (20)
provided.
-
Cover the screws with cover caps (21).
17. Now adjust the center adjustable roller bases
(22) so that they make slight contact with the
floor.
18. Install the lower ventilation grille (23): Secure
the ventilation grille so that it touches the floor
and adjust it using the slots.
