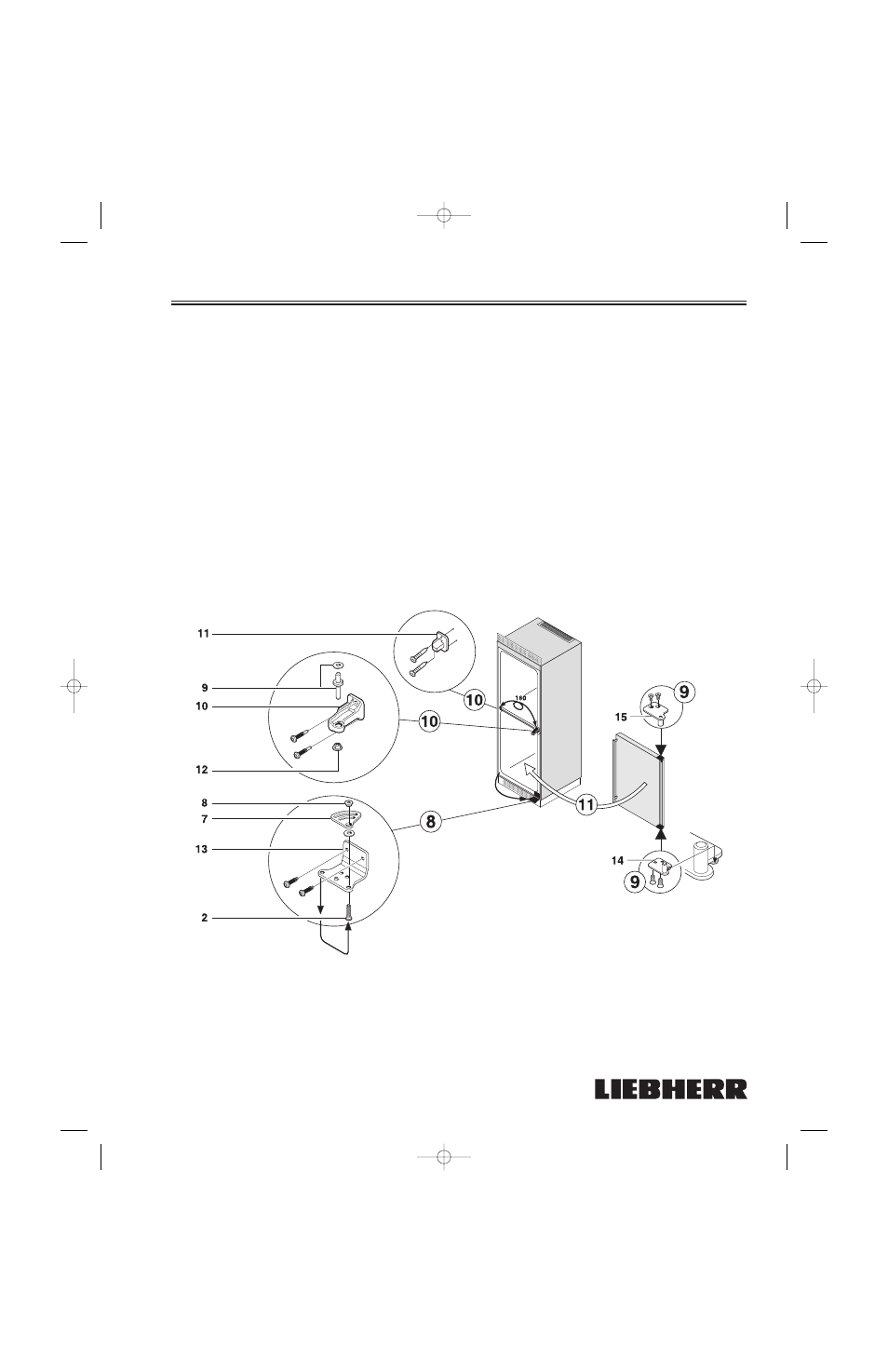

8. Figure 12: Unscrew the lower hinge (13).
- Remove the stops, bushing and washer (7, 8, 6).
- Transfer hinge pin (2) to the opposite side.
- Turn the stop (7) through 180° and position
bushing (8) and washer as shown in the
detailed drawing.
- Screw on hinge (13) on the new hinge side.
9. On the lower door: Reinstall the door fittings (14,
15). Pay special attention to the part (14) with
the stop.
10. Unscrew the center hinge (10) and cover (11),
pull them off to the side and after turning them
through 180°, slide them on again on the
opposite side and secure them.
11. Place the lower door on the hinge pin (2) at the
bottom.
- Swivel in the door.
- Pay special attention to the bushing (12) in the
center hinge (10).
- Insert hinge pin (9) and add the washer.
Figure 12
LBR029
