Liebherr BF1051 - Manual (Page 18)

16 BFI/BF1051 / BGEN/es 2956
A delight in freshness

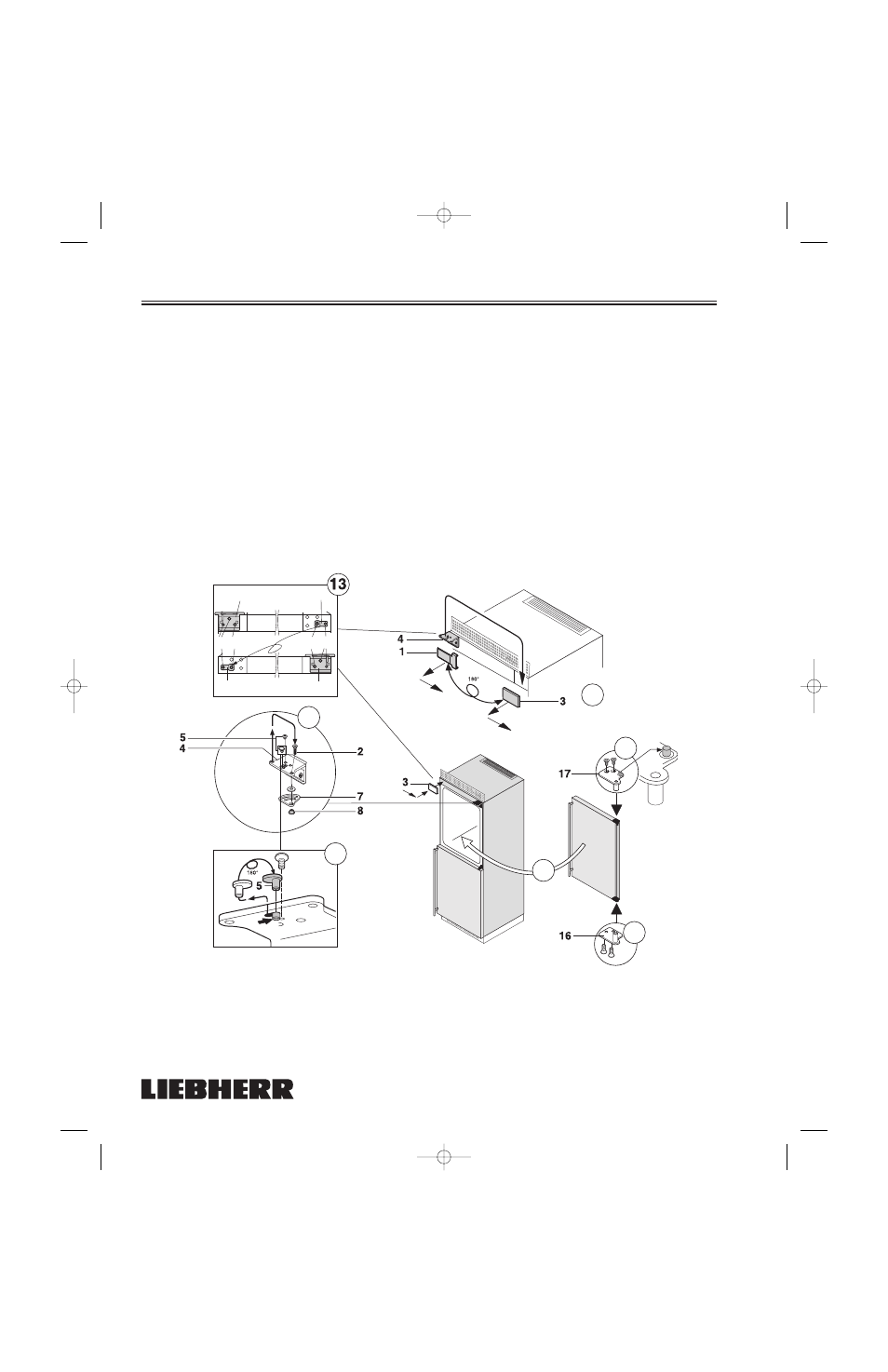

12. Figure 13: Lift up cover (3) on handle side,
push outward; lift up cover (1) on hinge side
and pull off.
13. Unscrew mounting plate (21): first mounting
screw (20), then inner retaining screw (25).
- Unscrew hinge (4): first remove the mounting
screw (20), then retaining screws (25). Fit
hinge (4) to opposite side: for easy assembly,
fit hinge from above and first tighten with the
upper retaining screw (25) M5, then screw
(25) and finally mounting screw M4 (20).
- Turn mounting plate (21) through 180° and
screw tight again on the new handle side: first
retaining screw (25), then mounting screw
(20).
14. Remove the eccentric (5) with the retaining
screw and screw (6) in the hinge (4).
15. On the upper door: Reinstall the door fittings
(16, 17). Pay special attention to the fitting (17)
with the stop.
16. Place the upper door on the center hinge, fit the
bushing (8), stop (7) and washer on the door,
swivel in the door at the top and insert and
secure the hinge pin (2) from above through the
hinge and stop.
17. Re-insert the eccentric (5) with the retaining
screw as shown in the detailed drawing.
Check for proper alignment of all doors. Adjust
them if necessary using the slots on the hinge.
R
EVERSING
D
OOR
H
INGES
Figure 13
180
°
18 0°
4
25 20
21
25 20
4 21
17
14
16
15
15
12
LBR030
