Product overview

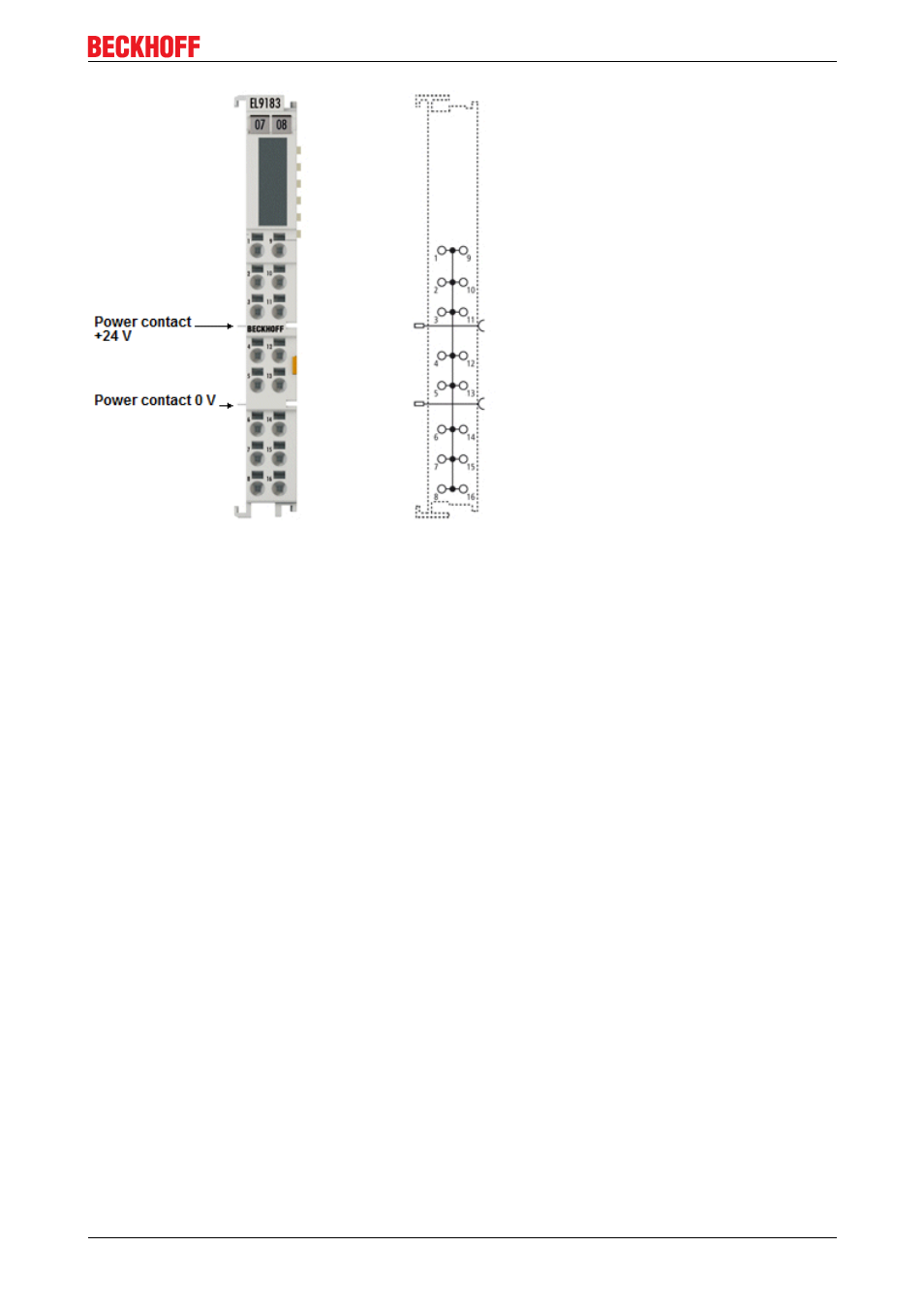

Fig. 20: EL9183
The potential distribution terminals EL9181, EL9182 and EL9183 provide 16 terminal points for potential
distribution and enable the voltage to be picked up without further terminal blocks or wiring. The power
contacts are fed through to the next terminal without connecting to the terminal points.
The HD EtherCAT Terminals (High Density) with increased packing density feature 16 connection points in
the housing of a 12 mm EtherCAT Terminal. The conductors can be connected without tools in the case of
solid wires using a direct plug­in technique
