Product overview
3.10
EL9400, EL9410
3.10.1
EL9400, EL9410 Introduction and Technical Data

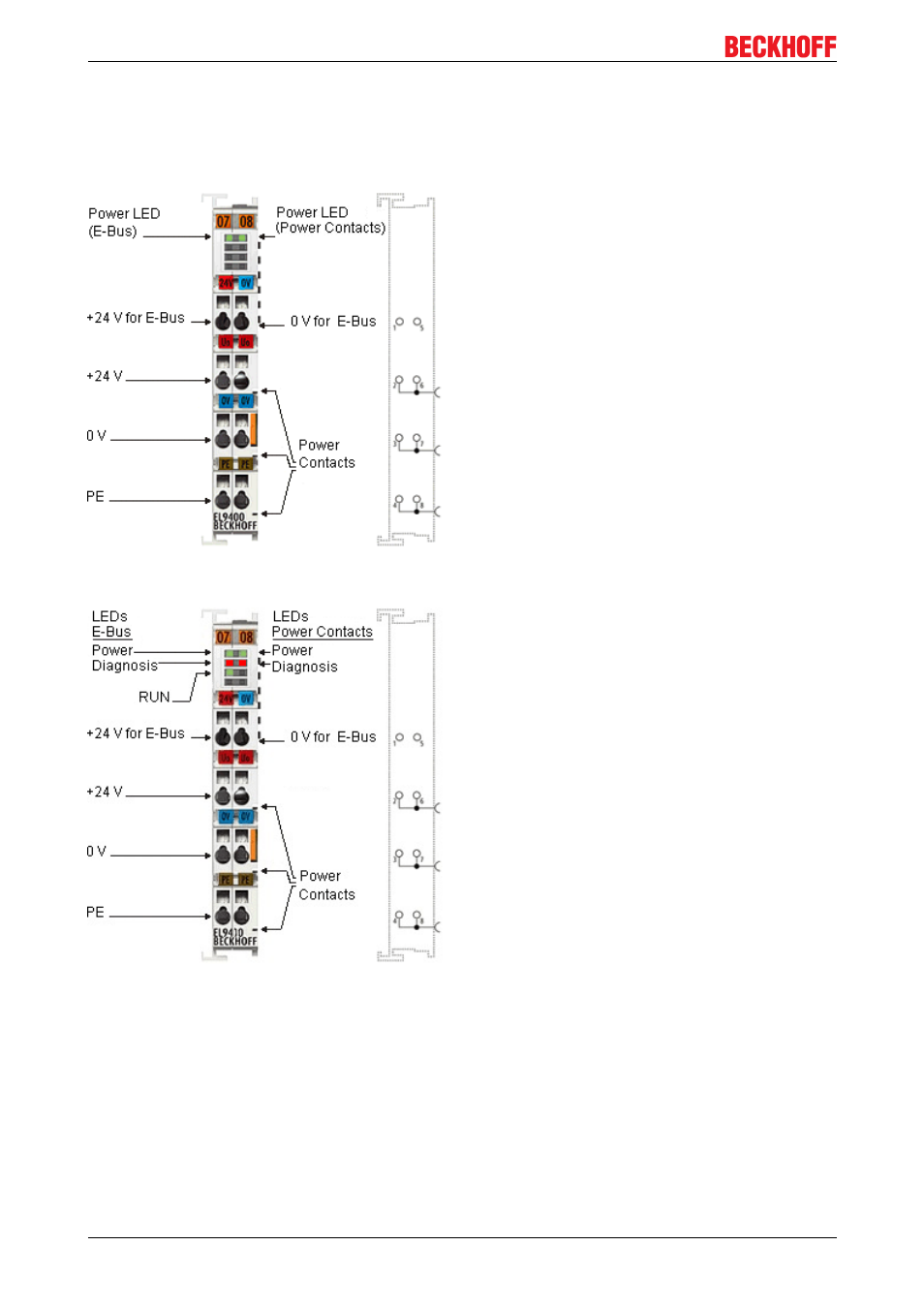

Fig. 34: EL9400
Fig. 35: EL9410
The EL9400 and EL9410 power supply terminals are used to refresh the Ebus.
Data is exchanged between the coupler and the EtherCAT Terminal over the Ebus. Each terminal draws a
certain amount of current from the Ebus (see “current consumption Ebus” in the technical data). This
current is fed into the Ebus by the relevant coupler’s power supply unit. In configurations with a large
number of terminals it is possible to use the EL9400/EL9410 in order to supply an extra 2 A to the Ebus. As
opposed to the EL9400, the EL9410 has a diagnostic function which is displayed by LED and on the process
image. At the same time the EL9400 can be positioned for establishing a further potential group or for
supplying the terminals following on the right (via power contacts).
