Comtech EF Data UT-4500 Series - Manual (Page 48)

UT4500 Series Up Converter MN/UT4500.IOM
System Operation Revision 2
30
ENTER
---------SELECT---------
----CONFIGURATION-MENU--
--ENTRY-MODE-=-REMOTE---
-COLD-START-=-DISABLED--
FAULT RECOVERY:-MANUAL--
------------------------
REDUNDANCY-CONFIG?-OFF--
------------------------
* Displayed only when there is
a 5/10 MHz reference input.
** Manual when “Redundancy
Config ON” and not in “BU”
REDUNDANCY-CONFIG?-ON---
-CONVERTER-#-XX---------
ENT + DOWN + ENT
CLR
LEGEND
DISPLAY
KEY-PAD
ENT
CLR
---------SELECT---------
--MONITOR-STATUS-MENU---
FREQ= 14XXX.XXX-MHz-----
ATTN=-10.00-DB---Tx=OFF-
--REFERENCE-PRESENT-----
----EXTERNAL-5-MHz------

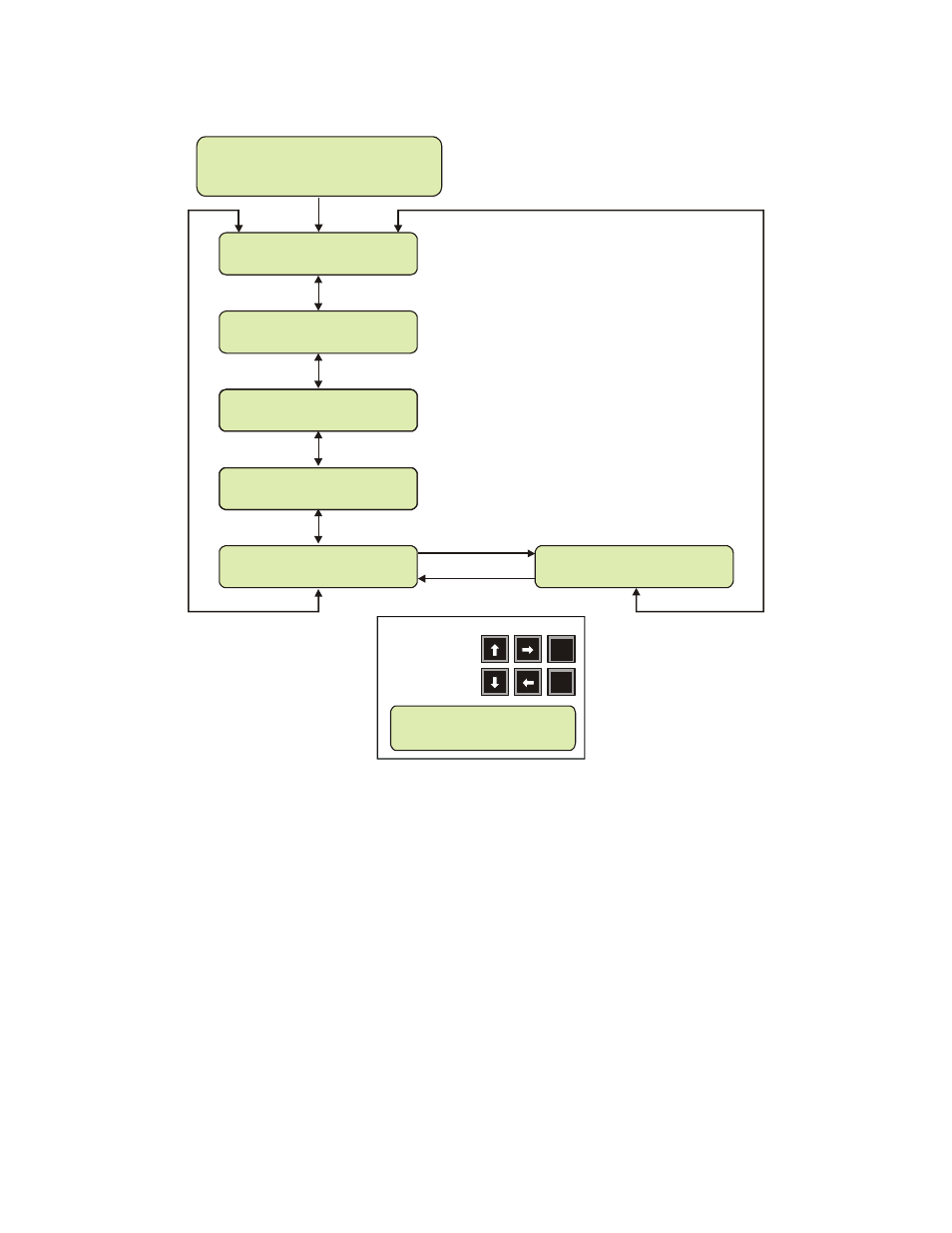

Figure 14. Configuration Menu Commands - Redundancy ON, Backup Unit Not Selected
