Operation
Generating Test Waveforms
2
2-19
3. Power up the Analyzer by sliding the power switch forward to
ON
.
Main
Menu 1
displays:

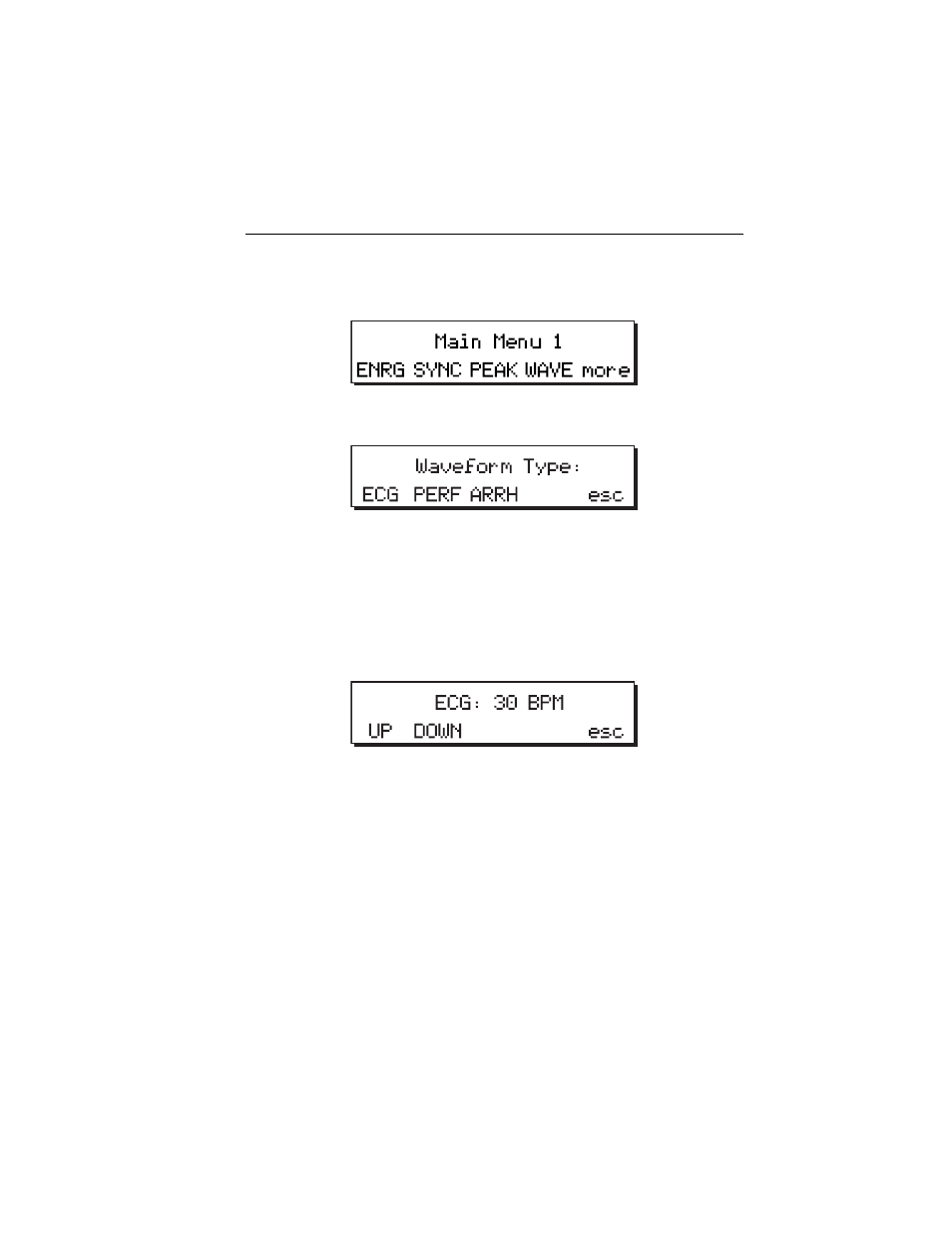

fcf002.eps
4. Press the
WAVE
softkey to access the
Waveform Type
menu:
fcf022.eps
5. Press the softkey corresponding to the desired wave simulation:
•
ECG
for ECG waveforms
•
PERF
for performance waveforms
•
ARRH
for arrhythmia waveform
For example:
fcf023.eps
To select the next available option within a waveform simulation, press
the
UP
softkey; to select a previous option, press the
DOWN
softkey.
6. Observe the waveform on the monitor under test.
Note
The selected waveform plays continuously until another is selected or
until the
esc
softkey is pressed.
