6RIWZDUH 'HVFULSWLRQ

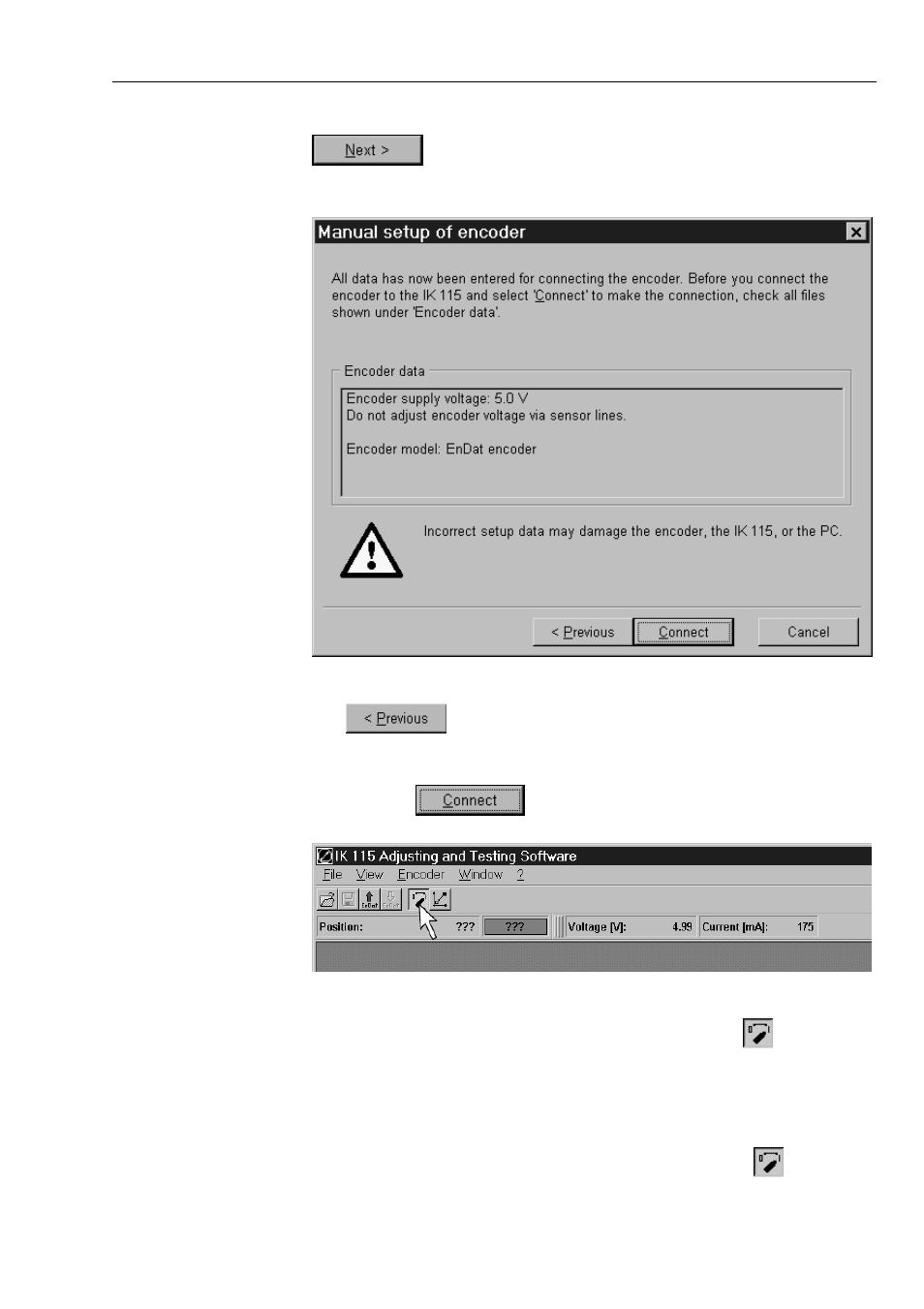

After you have entered all the data correctly, press the
button. Now a summary of the entered data is
displayed.
If you should find an error in the displayed data, you can press
the button to return to the dialog box and correct
the data there. If all displayed data are correct, and if the
encoder is connected to input X1, you can exit the dialog by
clicking the button.
Then the power supply to the encoder is activated
automatically. This is indicated by the depressed button.
Also, the supply voltage available to the encoder and the
encoder’s current consumption are displayed.
The supply voltage of the encoder can be deactivated at any
time through [ Encoder > Encoder voltage ] or the
button in
the toolbar.
