MVI46-MBP ♦ SLC Platform Reference
Modbus Plus Communication Module
Page 56 of 101 ProSoft Technology, Inc.
February 19, 2008

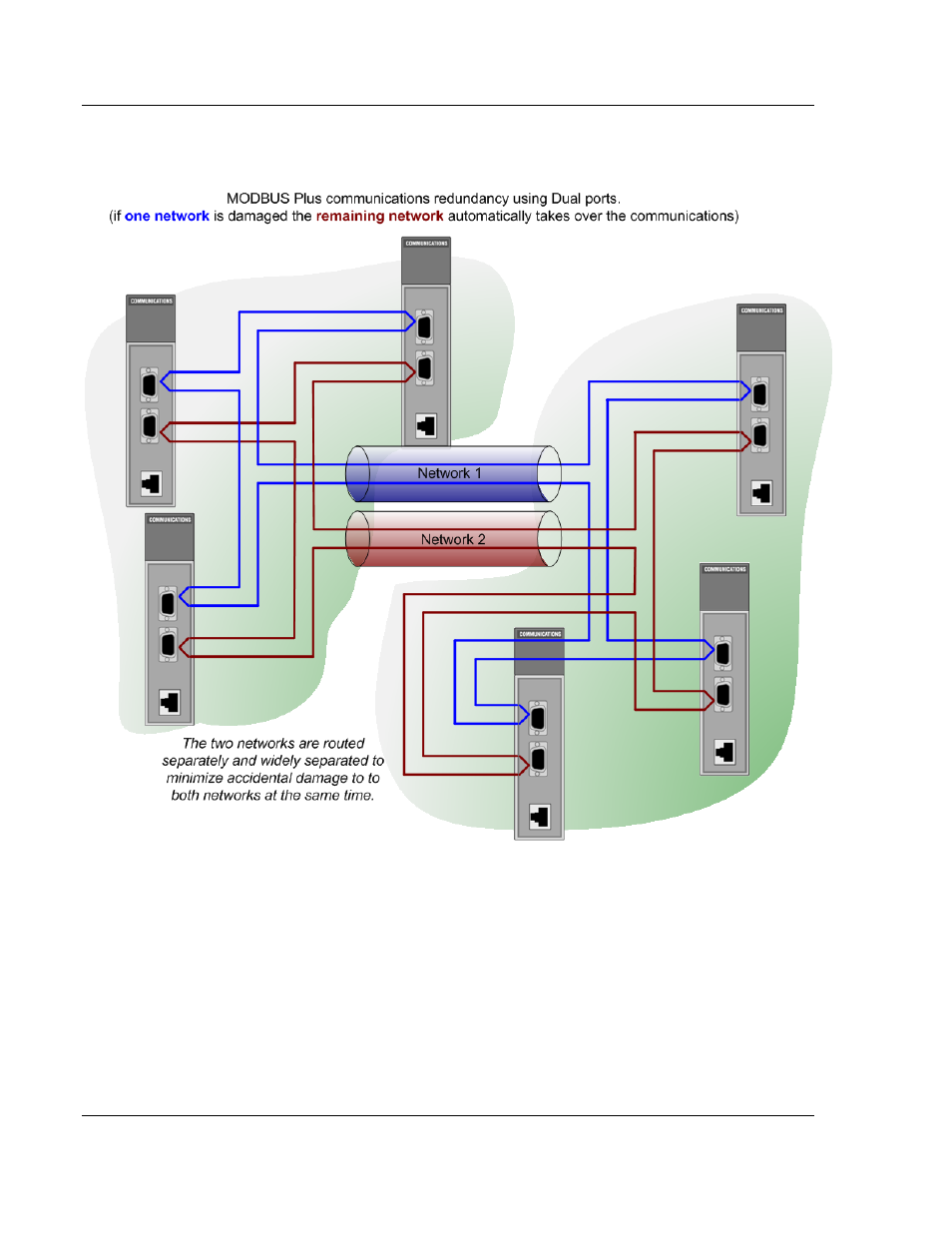

Refer to the following illustration for an example of redundant port operation on a
Modbus Plus network.
