U L T R A L I T E - M K 3 H Y B R I D F R O N T P A N E L O P E R A T I O N
36
PHONES
From the factory, the PHONES jack (Figure 6-1) is
a discrete output at 44.1/48 kHz, but it can mirror
any other output pair (digital or analog) or serve as
its own independent output.
When you turn the phone VOL knob, the LCD
display provides visual feedback:

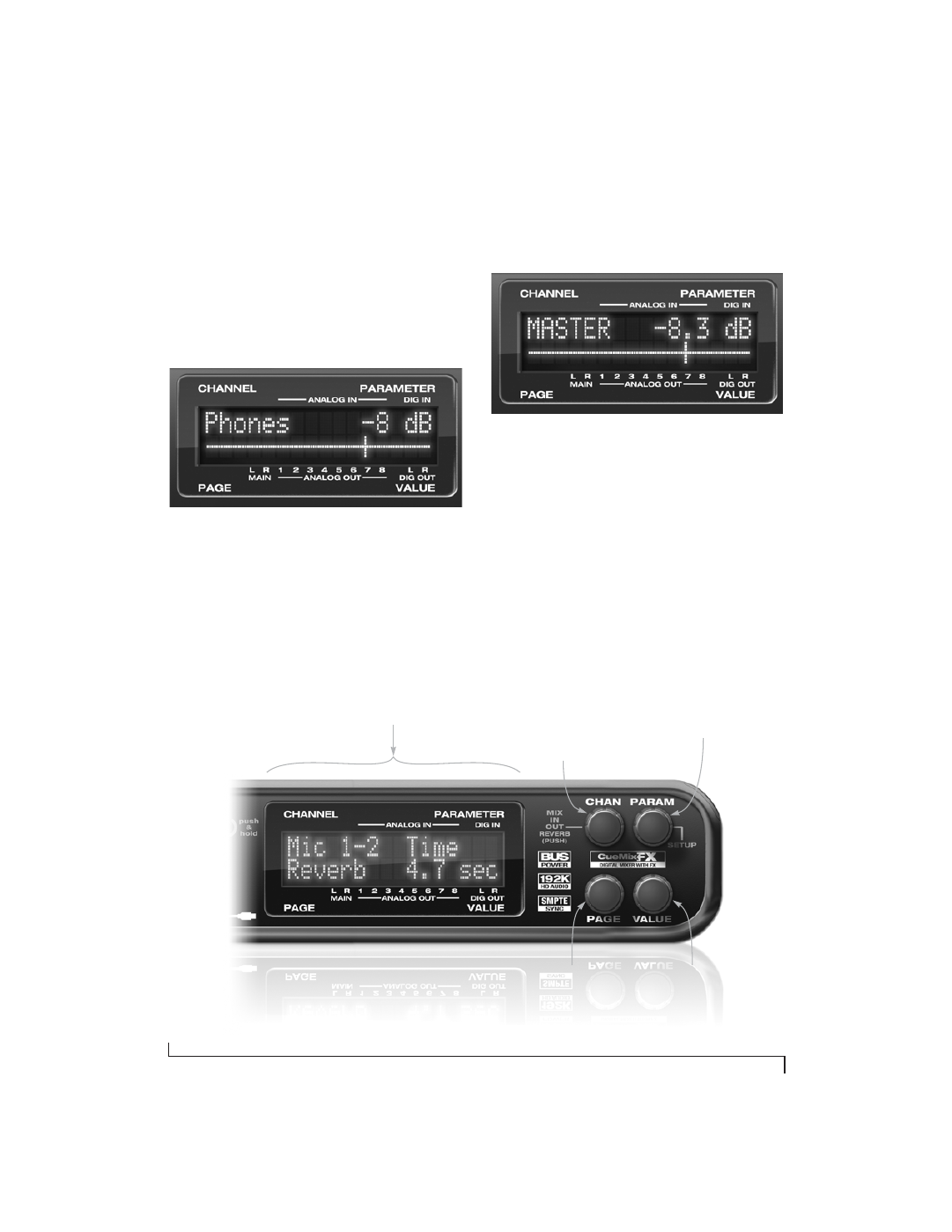

Figure 6-2: The LCD provides feedback as you adjust Phone volume.
To view the current setting without changing it,
just push the knob (without turning it).
MAIN OUT VOLUME
Push the VOL knob twice to view and control the
volume of the main outs on the rear panel.
Figure 6-3: The LCD provides feedback as you adjust Phone volume.
The MASTER volume adjustment can be
programmed to control any combination of
outputs. See “The Monitor Group” on page 84 for
details.
Figure 6-4: The UltraLite-mk3 front panel controls.
The LCD is divided into four
sections that correspond to the
four knobs to the left.
Push the PARAM knob to
cycle among three global
menus: METER, CUEMIX
(mixer) and SETUP.
When viewing CueMix settings
in the LCD, push the CHANNEL
knob to cycle among four main
mixer menus: MIX, IN (inputs),
OUT (outputs) and REVERB.
Turn it to choose a channel.
Turn the PAGE knob to view settings for
each channel. Push it to jump to the
next section or back to the beginning.
Turn and/or push the
VALUE knob to adjust
the current setting.
