C U E M I X F X
89

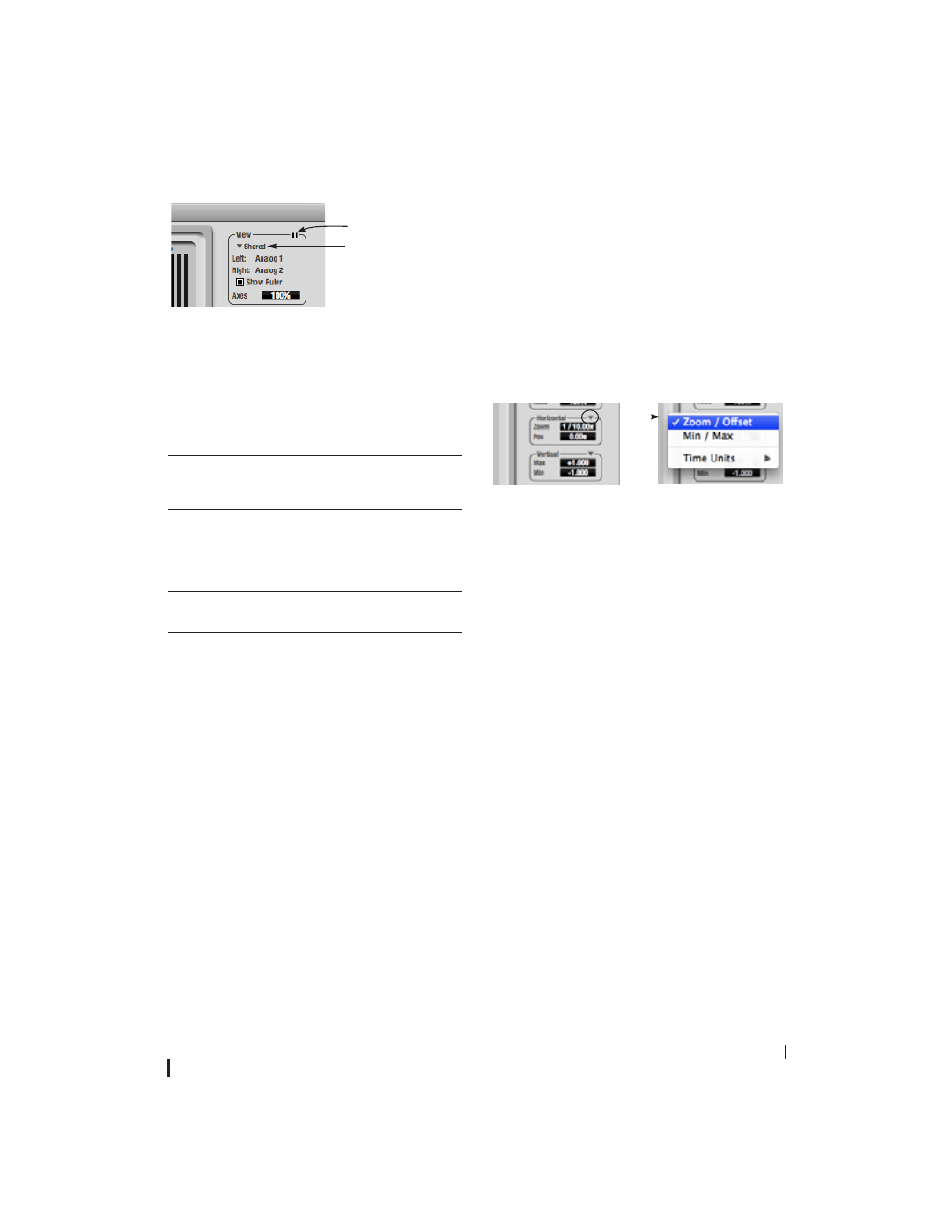

Figure 10-34: View controls
View menu
The View menu (Figure 10-34) lets you choose how
you wish to display the audio channel(s) being
displayed.
Display options
The Axes control (Figure 10-34) sets the opacity of
the grid displayed in the graph, from 100% (fully
visible) down to 0% (fully hidden). The
Show Ruler
option toggles the measurement items (see
“Measurement information” on page 91).
Pausing the display
The Pause button in the upper right corner of the
View section (Figure 10-34) allows you to freeze
the display at any time. To resume, click the button
again. The level meters will remain active while the
display is paused.
Horizontal controls (time axis)
The Horizontal controls (Figure 10-35) configure
the value range of the x-axis (time). Click and drag
the values up or down to set them, or double-click
to return to the default value.
There are two modes for the controls: Zoom/Offset
and
Min/Max . To change the mode, use the Horizontal
control menu (Figure 10-35).
Figure 10-35: Horizontal control menu
In Zoom/Offset mode, Zoom sets the display zoom
from
1/1000x to 10x, where the number represents the
number of pixels per sample. For example, when
the horizontal zoom value is 10x, 10 samples are
displayed in 100 pixels; when the horizontal zoom
value is 1/10x, 100 samples are displayed in 10
pixels.
Offset moves the line marking time equals
zero left or right.
In Min/Max mode, Min and Max set the earliest
and most recent displayed time.
Time Units
The Time Units sub-menu (Figure 10-35) provides
the option to view the X axis in Seconds or
Samples.
Vertical controls (amplitude axis)
The Vertical controls (Figure 10-35) operate
similarly to the Horizontal controls, except that
they configure the y-axis (amplitude).
In Zoom/Offset mode, Zoom sets the display zoom
from
1/2 to 100x, and
Offset moves the line marking
amplitude equals zero line up or down.
View menu setting What it displays
Left Left channel only
Right Right channel only
Split screen Left channel on top; right channel on the
bottom
Shared Left and right on top of each other; left is
green, right is red
Add Left and right channels’ amplitudes are
added together
Subtract L-R The right channel’s amplitude is sub-
tracted from the left channel’s amplitude
Pause button
View menu
