Parameter refers to the letter “P” which all commands must begin with (For example, PA12).
Row refers to a group of display aligned together, each letter represents a row: A, B. Monitor
refers to a display in each row: 1, 2. Enter the number in order as it appears in the layout,
left-to-right, beginning with Row A. The number represents the computer connected to a
port# on the GCMS1922

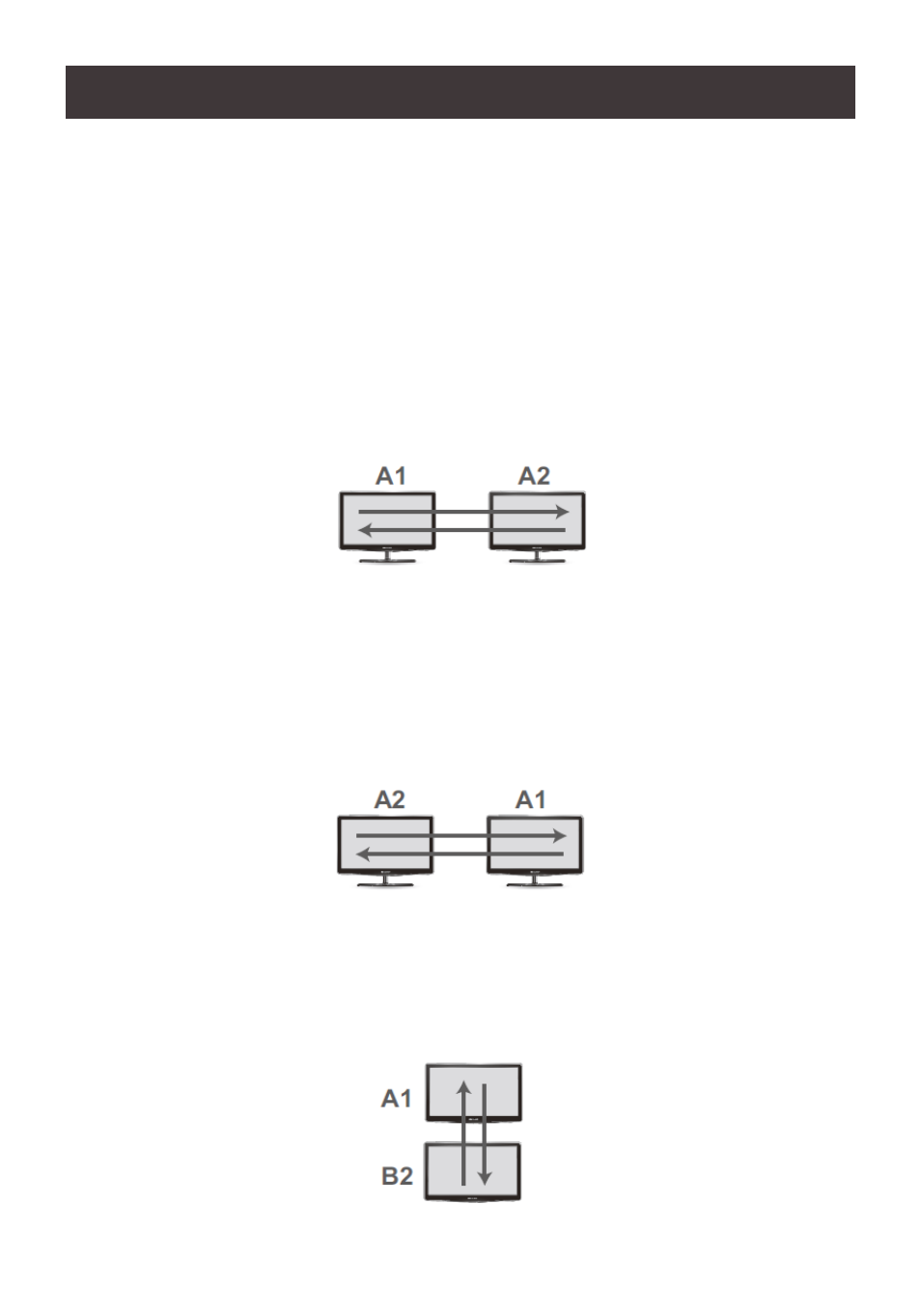

Scenario 1
To key in a layout, enter “P” followed by “A” and a number for each display. If you have two
displays in one row, type PA12[Enter] . The monitor 1 and 2 are fixed on the left and right in
a row monitor layout.
1x2 Monitor Layout
Scenario 2
To key in a layout, enter “P” followed by “A” and a number for each display. If you have two
displays in one row, type PA21[Enter] . The monitor 1 and 2 are fixed on the right and left in
a row monitor layout.
1x2 Monitor Layout
Scenario 3
To key in a layout, enter “P” followed by “A” and a number for each display. If you have two
displays in each row, type PA1B2[Enter] . The monitor 1 and 2 are fixed on the top and
bottom in a tier monitor layout.
2x1 Monitor Layout
