IOGear 2-Port 4K Dual View DisplayPort Matrix KVMP Switch User Manual
Page 34
34
5.

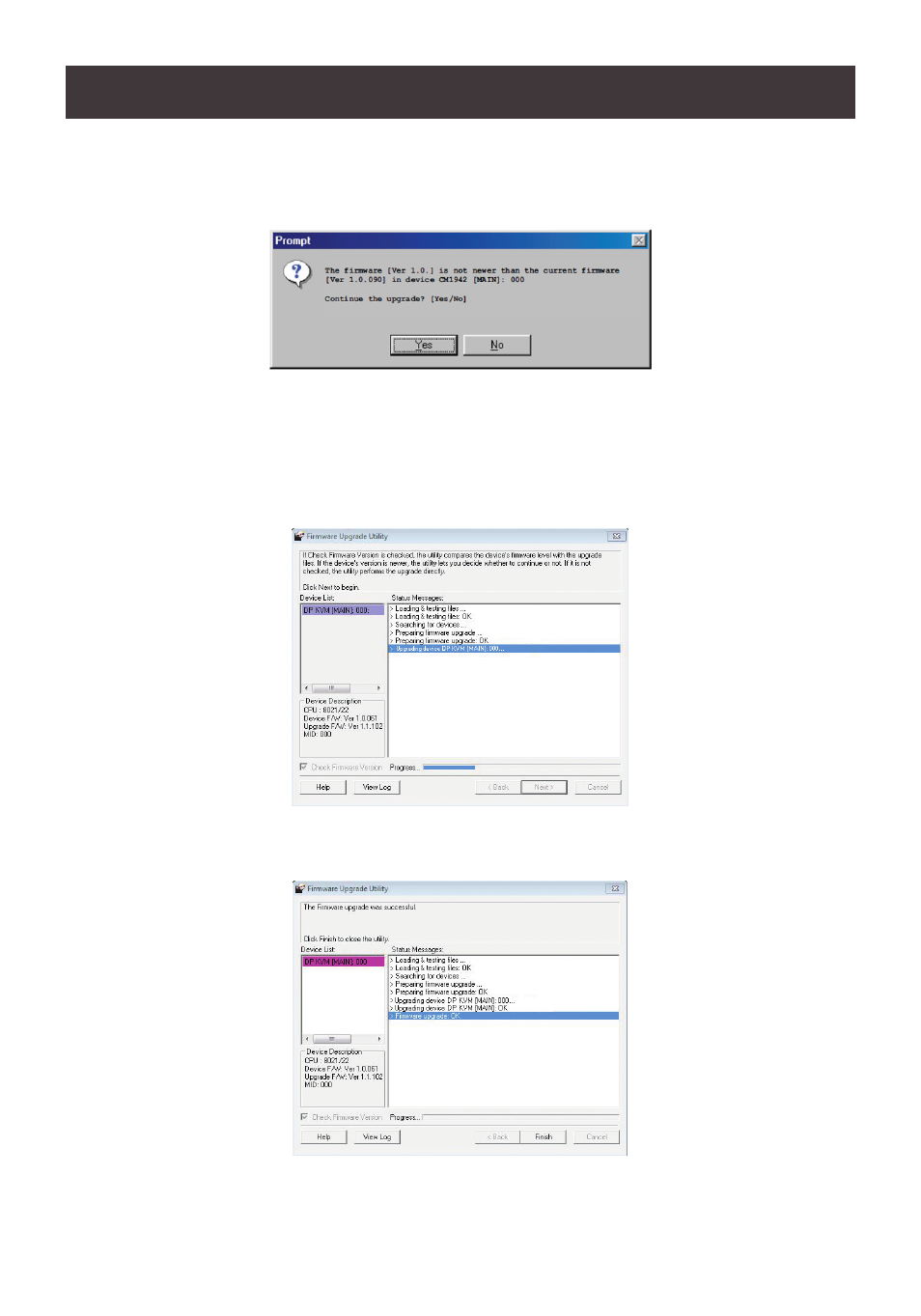

If you enabled Check Firmware Version, the Utility compares the device’s firmware
level with that of the upgrade files. If the device’s version is higher than the upgrade
version, a dialog box below will give you the option to Continue or Cancel.
6.
If you did not enable Check Firmware Version, the Utility installs the upgrade files
without checking whether they are of higher level, or not.
7. As the Firmware Upgrade proceeds, a status message will appear in the Status
Messages panel, and the progress toward completion is shown on the Progress bar.
8. After the upgrade has completed, a screen appears to inform you that the procedure
was successful. Click
“Finish”
to close the Firmware Upgrade Utility.
9. After a successful completion, the GCMS1922 will exit the Firmware Upgrade Mode
and resets itself.
