SETUP AND INSTALLATION

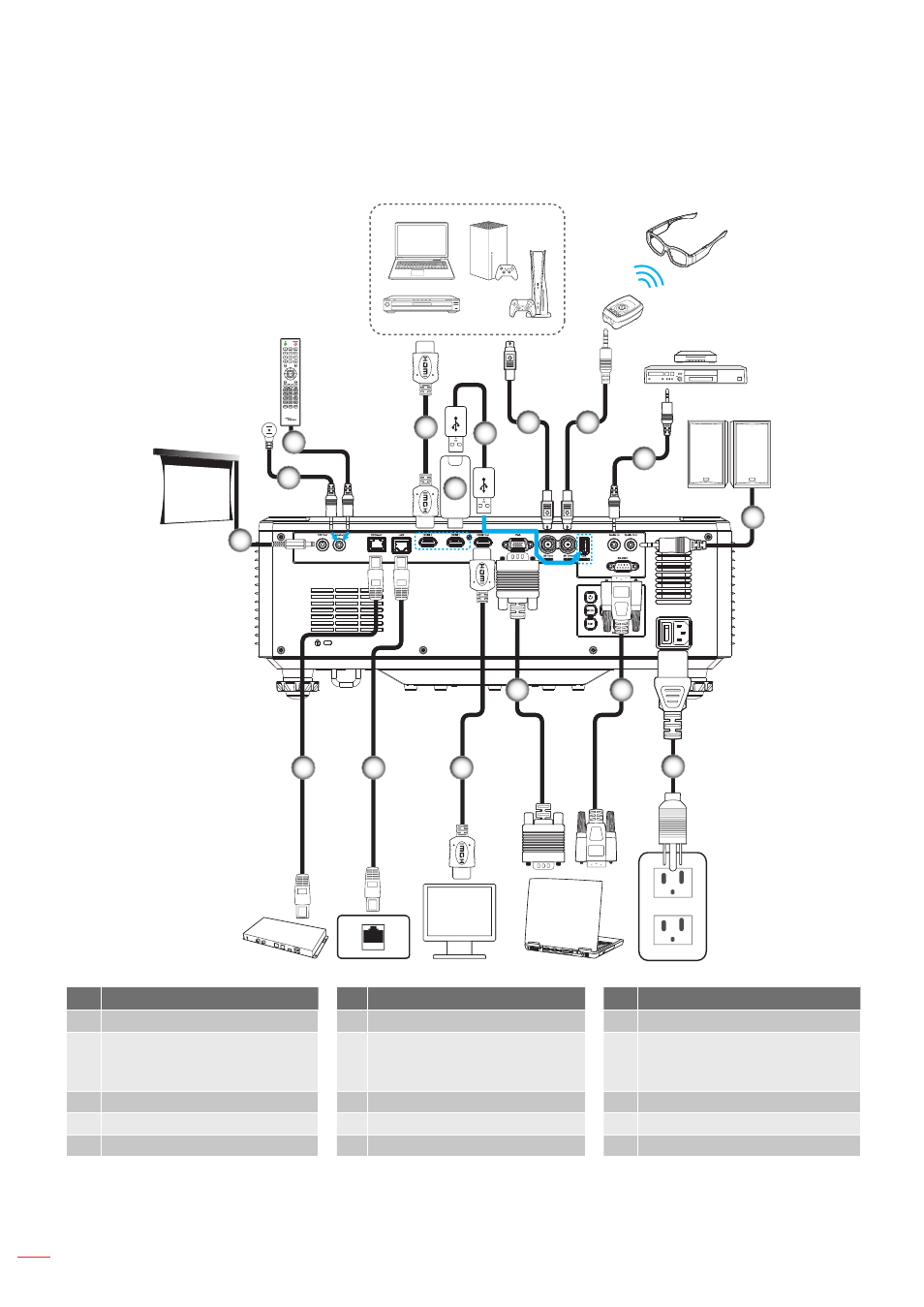

Connecting Sources to the Projector

1

2

2

5

4

7

6

3

8

9

10

11

12

13

14

OR

15

No.

Item

No.

Item

No.

Item

1. 12V DC Jack

6. 3D Sync Cable

11. RS232 Cable

2. Wired Remote Control Cable

or IR Receiver Cable

(3.5mm TRS type)

7. 3D Emitter Cable

12. VGA Cable

3. HDMI Cable

8. Audio In Cable

13. HDMI Cable

4. HDMI Dongle

9. Audio Out Cable

14. RJ-45 Cable

5. USB (A to A) Cable

10. Power Cord

15. RJ-45 Cable
